Low Temperature Impact Test Device with VDE 0472 IEC 884-1 CQC 1147 Standars

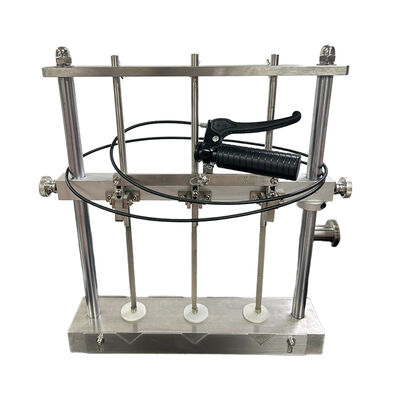

Large Image : Low Temperature Impact Test Device with VDE 0472 IEC 884-1 CQC 1147 Standars

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1022B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Low Temperature Impact Test Device with VDE 0472 IEC 884-1 CQC 1147 Standars will be Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	USD 800.00 - 1000.00 / unit

Contact Now

Detailed Product Description

Name:	Low Temperature Impact Test Device With VDE 0472 IEC 884-1 CQC 1147 Standars	Low-Temperature Impact Height:	100 Mm
Weights:	100, 200, 300, 400, 500, 600, 750, 1000, 1250, 1500 G (3 Pieces Each, 30 Pieces Total)	Dimensions:	Width 390 × Depth 80 × Height 450 Mm (Three-station Type)
The Entire Series Of Apparatus:	Made Of 304 Stainless Steel	Model:	ZL-1022B
Highlight:	Low Temperature Impact Test Device , Cable Testing Machine with VDE standards , IEC 884-1 compliant test device

Low Temperature Impact Test Device

Compliant with VDE 0472, IEC 884-1, and CQC 1147 standards for evaluating impact resistance of electrical accessories under low-temperature conditions.

Standards Compliance

This device complies with multiple international standards including GB 2951.14.8.2-2008, GB 2099-2008, VDE 0472, IEC 884-1, and CQC 1147-2022 Technical Specification for Certification of Liquid-Cooled Cables for Electric Vehicle Charging.

Application Scope

Specifically designed to evaluate the impact resistance of electrical accessories when subjected to low-temperature conditions. Used in conjunction with a low-temperature chamber for comprehensive testing.

Technical Specifications

Low-Temperature Impact Height	100 mm
Weights	100, 200, 300, 400, 500, 600, 750, 1000, 1250, 1500 g (3 pieces each, 30 pieces total)
Construction Material	304 stainless steel (entire series)
Dimensions	Width 390 * Depth 80 * Height 450 mm (Three-station type)
