IEC 60811-1 VDE 0472 Low Temperature Winding Test Device

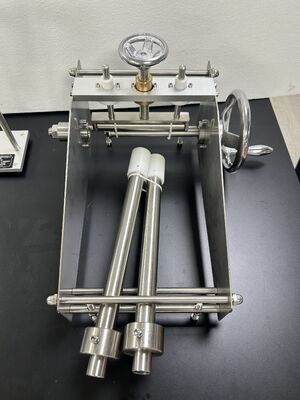

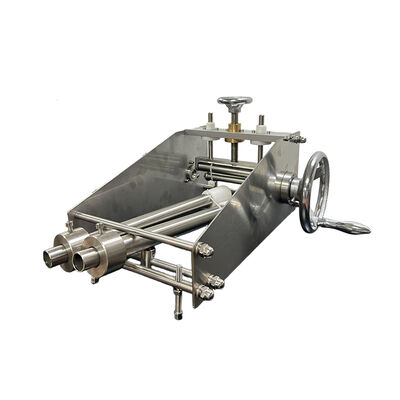

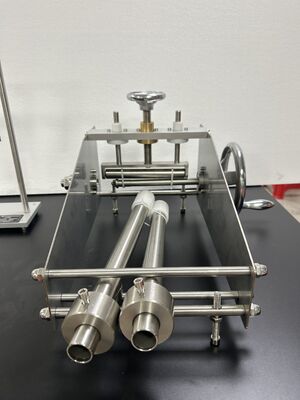

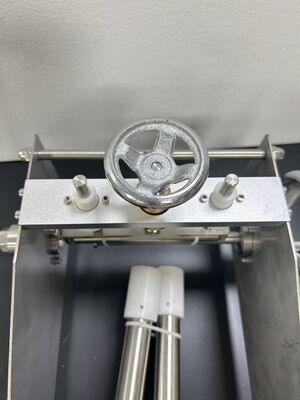

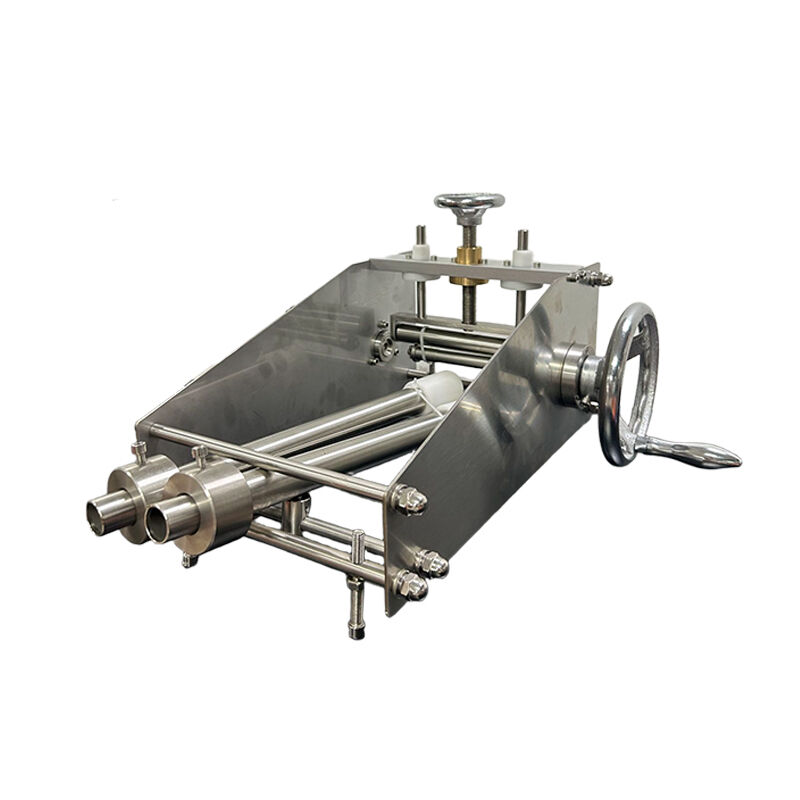

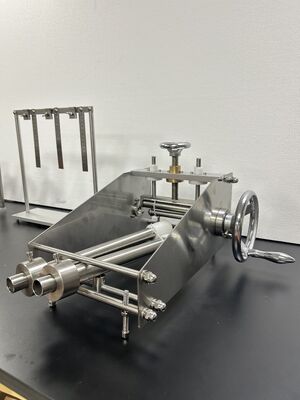

Large Image : IEC 60811-1 VDE 0472 Low Temperature Winding Test Device

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1022A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC 60811-1 VDE 0472 Low Temperature Winding Test Device will be Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	USD 1,000.00 - 1200.00 / unit

Contact Now

Detailed Product Description

Name:	Low Temperature Winding Test Device	Winding Mandrel Diameters:	Ø4 / Ø7 / Ø8 / Ø10 / Ø12 / Ø14 / Ø16 / Ø20 / Ø23 / Ø26 / Ø32 / Ø38 Mm (12 Types In Total)
Wire Guides:	Ø3.5 Mm / Ø6 Mm / Ø10 Mm / Ø12 Mm / Ø16 Mm (one Of Each)	Material:	SUS304 Stainless Steel
Standards:	GB/T 2951.4, IEC 60811-1-4, And VDE 0472	Model:	ZL-1022A
Highlight:	IEC 60811-1 winding test device , VDE 0472 cable testing machine , low temperature cable tester

IEC 60811-1 VDE 0472 Low Temperature Winding Test Device

This precision test apparatus is engineered in compliance with domestic and international safety standards including GB/T 2951.4, IEC 60811-1-4, and VDE 0472. It evaluates whether insulated wires develop cracks when subjected to low-temperature coiling conditions. Testing must be performed in conjunction with a compatible low-temperature test chamber.

Application Scope

Circular insulated cores with outer diameter ≤ 12.5 mm
Insulated cores where cross-section prevents preparation of dumbbell test pieces
Cables with outer diameter ≤ 12.5 mm
Flat cables with minor axis dimension ≤ 20 mm

Technical Specifications

Winding Mandrel Diameters	Ø4 / Ø7 / Ø8 / Ø10 / Ø12 / Ø14 / Ø16 / Ø20 / Ø23 / Ø26 / Ø32 / Ø38 mm (12 types total)
Wire Guides	Ø3.5 mm / Ø6 mm / Ø10 mm / Ø12 mm / Ø16 mm (one of each)
Material	SUS304 Stainless Steel
