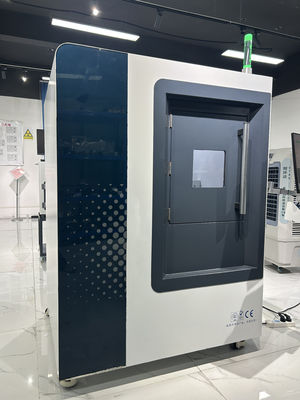

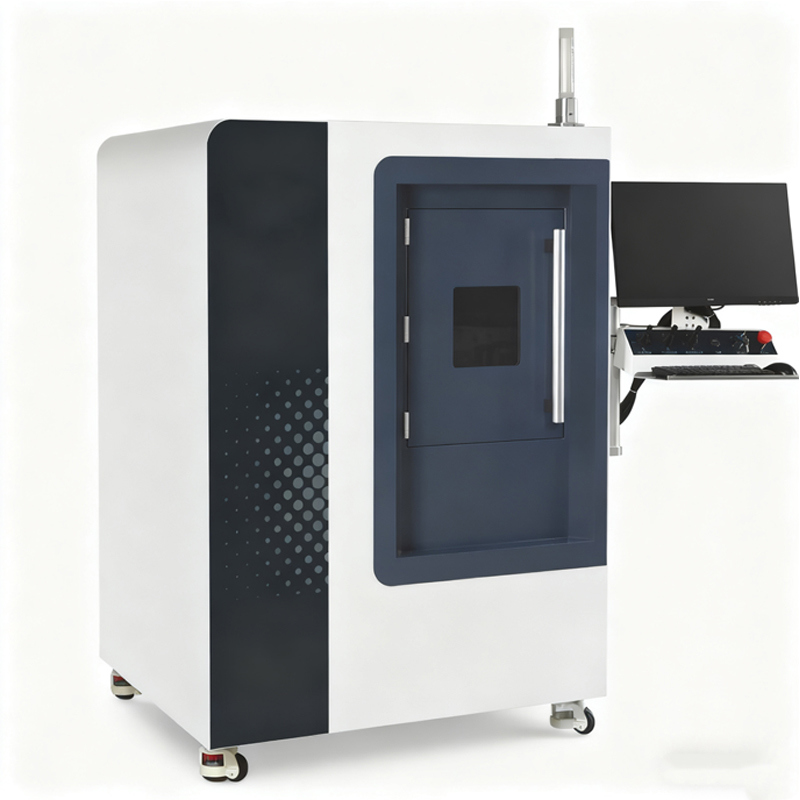

Automatic Defect Detection X-ray Inspection Machine for Electronic

Large Image : Automatic Defect Detection X-ray Inspection Machine for Electronic

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-4009

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Automatic Defect Detection X-ray Inspection Machine for Electronic is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Automatic Defect Detection X-ray Inspection Machine For Electronic	X-ray Source Type:	Closed Type
Optical Tube Voltage:	90kv/130kv	X-ray Tube Current:	90 Microns/300μm
Maximum Output Power:	8W/39W	Focus Size:	5-15um
Pixel Size:	85um	Pixel Matrix:	1536x1536
Highlight:	automatic x-ray inspection machine for electronics , electronic defect detection x-ray machine , x-ray inspection machine with warranty

Automatic Defect Detection X-ray Inspection Machine for Electronics

Advanced X-ray inspection equipment designed for precise defect detection in electronic manufacturing and related industries, ensuring product quality and reliability through non-destructive testing technology.

Application Fields

Electronic Manufacturing and Semiconductor Industry

Utilizes real-time X-ray imaging technology for quality control in integrated circuits (IC), printed circuit boards (PCB), and electronic components. Detects internal packaging defects, solder joint quality issues, and structural abnormalities to meet zero-defect requirements for precision components in consumer and industrial electronics.

Automotive and Auto Parts Industry

Provides comprehensive inspection of key automotive components and electronic modules. Detects internal defects in engine blocks, transmission valve bodies, and ensures soldering reliability for automotive PCBs and sensor modules, meeting IATF16949 quality management system requirements.

New Energy Industry (Lithium Battery/Photovoltaic)

Lithium Batteries: Inspects electrode alignment, separator wrinkles, internal short-circuit hazards, and welding quality for safety performance verification from R&D to mass production
Photovoltaic: Conducts non-destructive testing for hidden cracks, fragments, and internal defects in photovoltaic cells and modules to ensure power generation efficiency and product lifespan

Aerospace and High-End Manufacturing

Detects microscopic defects in aerospace precision components and industrial castings. With high-resolution X-ray imaging and digital analysis systems, enables full-process quality traceability and precise defect control for high-reliability equipment.

Technical Specifications

X-ray Source	Model ZL-4009-G740	Model ZL-4009-G750	Model ZL-4009-G751
Type	Closed type	Closed type	Closed type
Optical tube voltage	90kv	90kv	130kv
X-ray tube current	90 microns	90 microns	300μm
Maximum output power	8W	8W	39W
Focus size	5-15um	5-15um	5-15um

Imaging Unit Specifications

Pixel size	85um
Pixel matrix	1536x1536
Imaging area	130.56mm * 130.56mm
Maximum spatial resolution	5.5LP/mm
Imaging speed	1-7S

Overall Machine Parameters

Overall machine dimensions	970mm(L) * 1720mm(W) * 1810mm(H)
Overall weight of the machine	800KG
Overall machine power	250W
Power supply	AC110-240V 50/60Hz
Operating temperature	0-50℃
