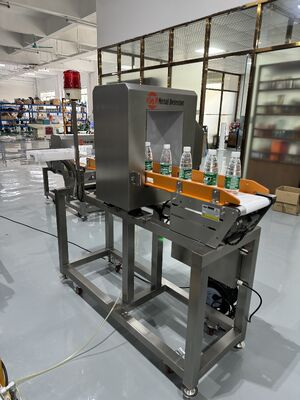

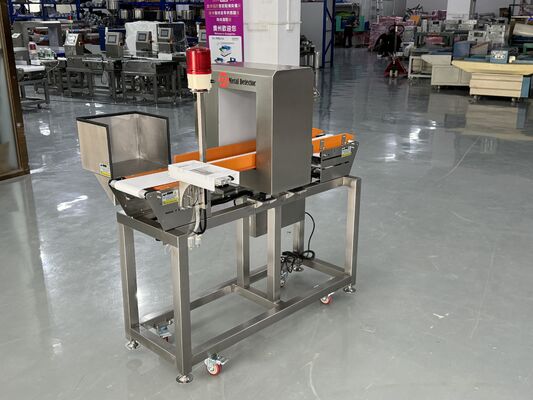

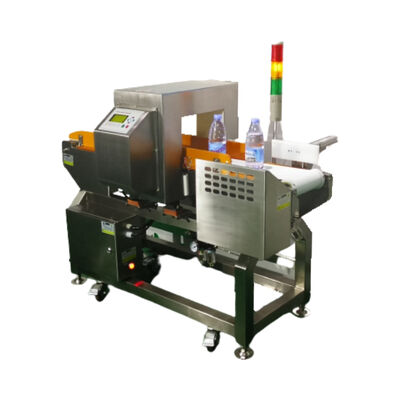

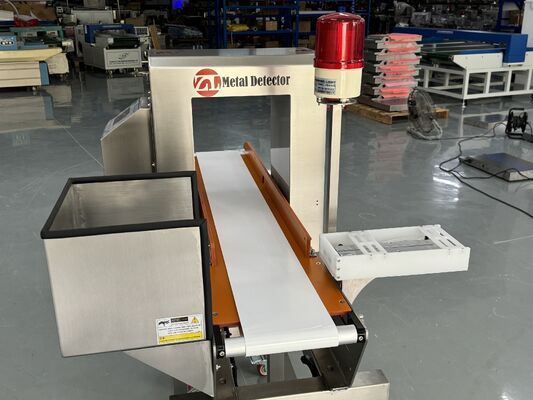

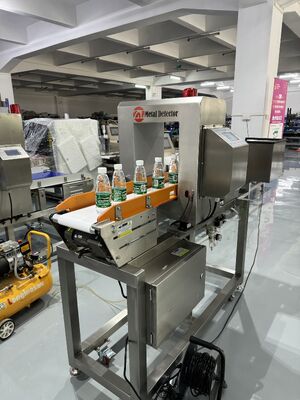

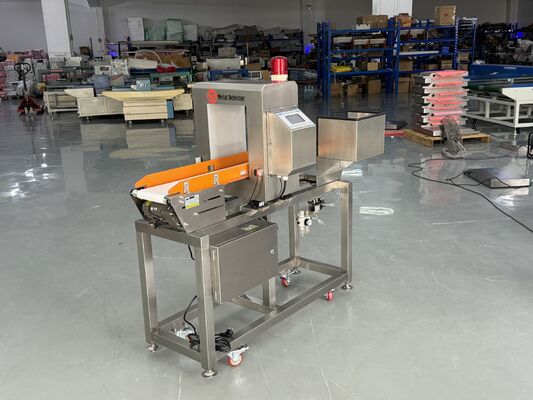

Bottles Belt Conveyor Metal Detector Machine for Water Bottling Mini Bottle Metal Detector

Large Image : Bottles Belt Conveyor Metal Detector Machine for Water Bottling Mini Bottle Metal Detector

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-4001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	2800-3500
Packaging Details:	Conveyor Belt Food Metal Detection Machine is packaged within wooden case.
Delivery Time:	7-14 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	Food Processing Metal Detector Conveyor Belt Metal Detector For Industry	Size:	100-120-150-200-250-300-350-400-customize
FE Sensitivity:	0.6-3.0-customize	Non-Fe Sensitivity:	1.2-3.5-customize
SUS Sensitivity:	1.5-4.0-customize	Speed:	10-30 M/min Optional (default Constant Speed)
Machine Weight:	About 200～250KG	Certificate:	CE
Highlight:	bottles belt conveyor metal detector , mini bottle metal detector machine , water bottling metal detector with warranty

Bottles Belt Conveyor Metal Detector Machine for Water Bottling Mini Bottle Metal Detector

This food processing metal detector with conveyor belt is designed for industrial applications to detect metal contaminants in food products, enhancing product safety and ensuring compliance with food safety regulations.

Product Overview

The food metal detector machine is essential for detecting metal impurities including iron, stainless steel, and aluminum in various food industries such as sauces, starches, meat products, and dairy products. It features advanced technology with anti-interference capabilities and multiple configuration options.

Key Features

Detects metal contaminants: iron, stainless steel, and aluminum

IP-66/IP-65 certified for water and dust resistance

Multiple rejection methods: flap and air-blow options

Intelligent recognition with automatic product effect compensation

Multi-frequency identification technology

Complies with HACCP and GMP international standards

99 product storage capacity with 990,000 data points

7-inch touch screen with USB interface for data export (optional)

Technical Specifications

Parameter	ZL-4001B Series
Detection Width	400mm (Other widths can be customized)
Detection Height	100 \| 120 \| 150 \| 200 \| 250 \| 300 \| 350 \| 400mm
FE Sensitivity (Ф mm)	≥0.6 \| ≥0.8 \| ≥1.0 \| ≥1.2 \| ≥1.5 \| ≥2.0 \| ≥2.5 \| ≥3.0
Non-Fe Sensitivity (Ф mm)	≥1.2 \| ≥1.2 \| ≥1.5 \| ≥1.8 \| ≥2.0 \| ≥2.5 \| ≥3.0 \| ≥3.5
SUS Sensitivity (Ф mm)	≥1.5 \| ≥1.8 \| ≥2.0 \| ≥2.3 \| ≥2.5 \| ≥3.0 \| ≥3.5 \| ≥4.0
Alarm Method	Automatic shutdown with 12V buzzer alarm and rewind
Machine Size	13307201000mm (LWH) - customizable
Belt Material	Food grade PVC Belt (Food grade PU Belt optional)
Speed	10-30 m/min optional (default constant speed)
Machine Weight	Approximately 200-250KG
Power	220V 50Hz, 120W (customizable)
Load Capacity	Within 20KG (customizable)
Height from ground to belt	700mm (other heights can be customized)

Note: Sensitivity parameters are approximate values from empty machine tests. Actual test parameters may vary depending on the test object.
