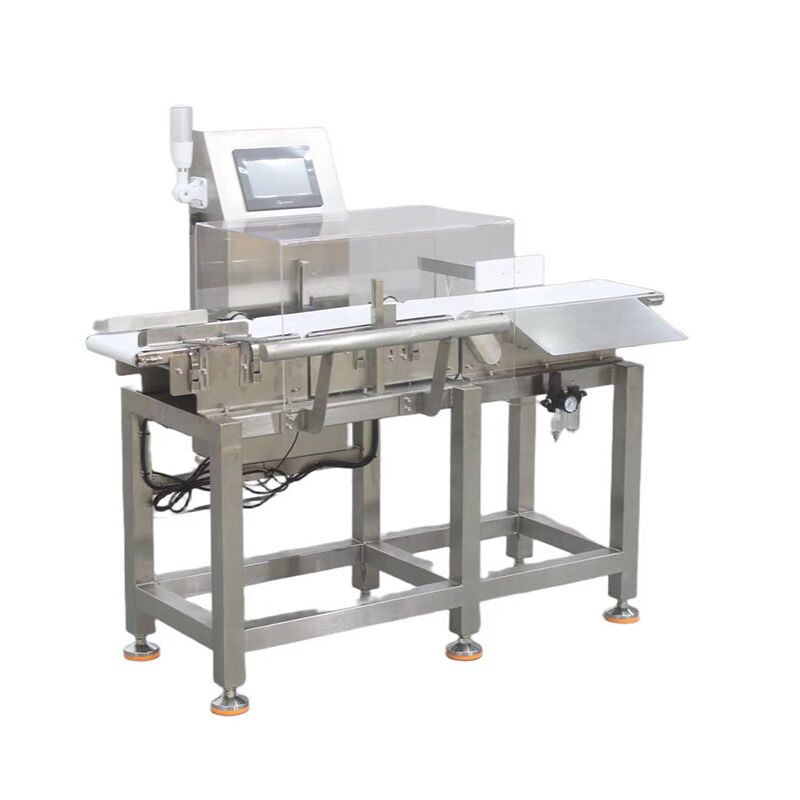

Industrial Conveyor Online Checkweigher | Automatic Potato Vegetable Weight Checking Machine

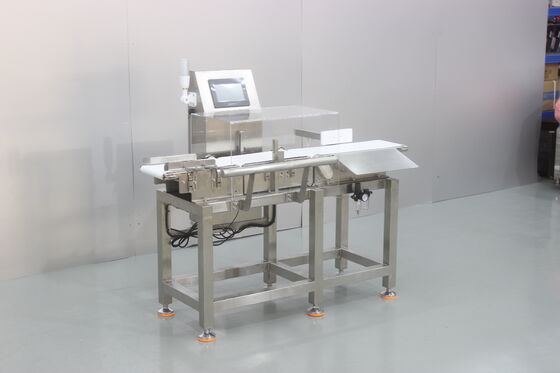

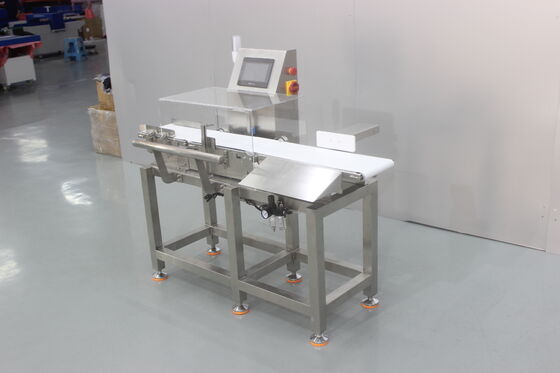

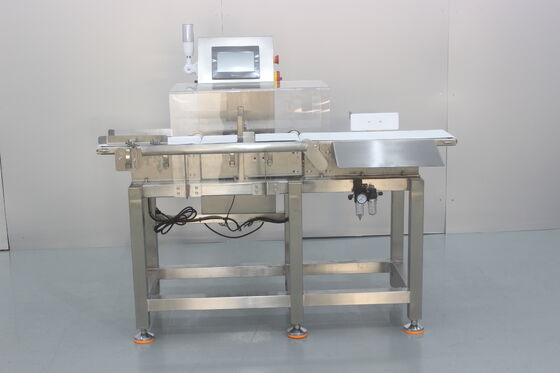

Large Image : Industrial Conveyor Online Checkweigher | Automatic Potato Vegetable Weight Checking Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE
Model Number:	ZL-4019

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3800-4500
Packaging Details:	Export wooden crate packaging
Delivery Time:	5-8 work days
Payment Terms:	Western Union,T/T,D/A,L/C,D/P
Supply Ability:	50sets/month

Contact Now

Detailed Product Description

Name:	Checkweigher	Single Weighing Range:	≤1000g
Weighing Accuracy Range:	±0.3g ~ ±1g	Minimum Scale Division:	0.1g
Conveying Speed:	60 ~ 90 M/min	Maximum Speed:	150 Pcs/min
Preset Product Codes:	99

Industrial Conveyor Online Checkweigher | Automatic Potato Vegetable Weight Checking Machine

Product Features

Designed specifically to enhance production capacity and improve efficiency
High-speed sampling control enables faster operation and higher precision
7-inch large color touchscreen, simple and easy to use
Full-body 304 stainless steel structure, waterproof model available as an option
Multiple preset product functions allow for simple and quick product switching
Equipped with variable frequency control motor, speed can be adjusted as needed
Modular structure for easy maintenance and cleaning
Zero tracking: Manual or automatic zero reset, as well as dynamic zero tracking
Customizable: Models can be tailored to the size and dimensions of customer products

Scope of Application

This product is suitable for testing whether the weight of a single product is qualified, and is widely used in many industries such as electronics, food, beverages, health care products, daily chemicals, light industry, and agricultural and sideline products.

Technical Parameters

Parameter	Specification / Value
Power Supply	AC220V±10% 50Hz (60Hz)
Rated Power	0.15KW
Single Weighing Range	≤1000g
Weighing Accuracy Range	±0.3g ~ ±1g
Minimum Scale Division	0.1g
Conveying Speed	60 ~ 90 m/min
Maximum Speed	150 pcs/min
Product Length for Weighing	≤300mm (L) * 180mm (W)
Conveyor Belt Size (Weighing Platform)	400mm (L) * 210mm (W)
Product Dimensions	Refer to drawing
Rejection Method	Pusher / Deflector Type (Single Side)
Control System	High-speed A/D Sampling Controller
Preset Product Codes	99
Operation Direction	Facing the machine, feed from left, discharge from right
External Air Supply	0.6 - 1 MPa
Air Connection Interface	φ8mm
Operating Environment	Temperature: 0℃ ~ 40℃, Humidity: 30% ~ 95%
Body Material	SUS304 Stainless Steel
