Product Details:
Payment & Shipping Terms:
|
| Product Name: | Solid SUS304 Structure Conveyor Belt Check Weighing System Machine | Model: | ZL-220 |
|---|---|---|---|
| Control System: | SIEMENS PLC And 7" HMI (WEINVIEW Or SIEMENS) | Weighing Range: | 10-1000 Grams |
| Speed: | 30-100bags/min | Accuracy: | +1.0 Grams |
| Product Size: | 10| Mini Scale: |
0.1 Grams |
|
| Weight Belt: | 420L*220W Mm | Key Words: | Conveyor Belt |
| High Light: | SUS304 structure check weighing machine,100bags/min check weighing machine,220v checkweigher conveyor |
||

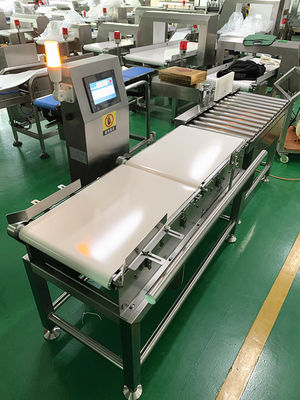

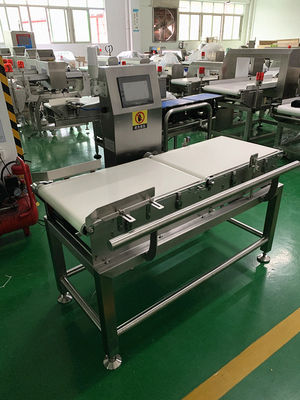

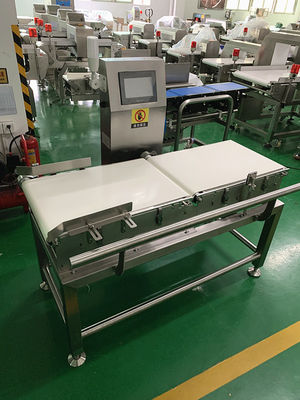

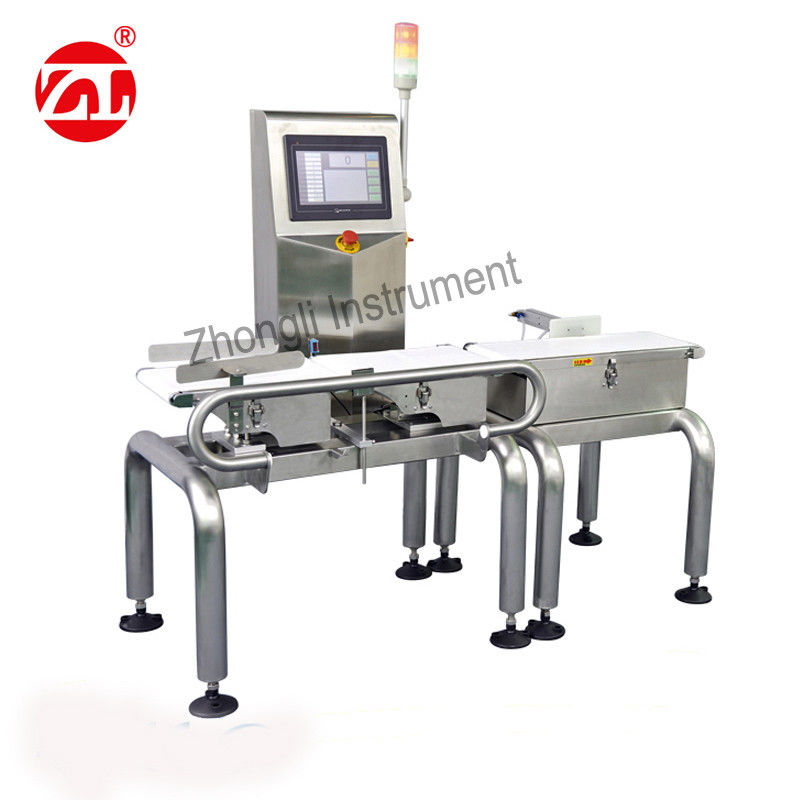

Solid SUS304 Structure Conveyor Belt Check Weighing System Machine
| Model | ZL-220 | ZL-330 |
| Control System | SIEMENS PLC and 7" HMI (WEINVIEW or SIEMENS) | |
| Weighing range | 10-1000 grams | 10-2000 grams |
| Speed | 30-100bags/min | |
| Accuracy | +1.0 grams | +1.5 grams |
| Product Size | 10<L<220; 10<W<200 mm | 10<L<220; 10<W<280 mm |
| Mini Scale | 0.1 grams | |
| Weight Belt | 420L*220W mm | 500L*320W mm |
| Reject system | Reject Arm/Air Blast/ Pneumatic Pusher | |
| Power supply | 220V/50HZ or 60HZ Single Phase | |
| Packing Dimension | 1600L*500W*900H mm | |
| Gross Weight | 200kg | 250kg |
Application:
It is suitable to check weight of various products, over or less weight will be rejected out, qualify bags will be passed to next equipment.
Features:
1. SIEMENS PLC and 7" touch screen, more stability and easier to operate;
2. Apply HBM load cell ensure high accuracy and stability (original from Germany);
3. Solid SUS304 structure ensure stable performance and precise weighing;
4. Reject arm, air blast or pneumatic pusher for selecting;
5. Belt disassembling without tools, which is easier to clean;
6. Install emergency switch at the size of machine, user friendly operation;
7. Arm device show clients clearly for the production situation (optional);
