|Product Name:||50mm Detection Sensitivity Pipe Metal Detector Used For Food Chemical Industry||Detection System:||Double Channel Metal Detection Circle Round Caliber|
|Separation System:||Pneumatic Shut-off Valve||Product Effect:||Multi-frequency Technology|
|Elimination Method:||Automatic Removal Of Pneumatic Ball Valve||Optional Accessories:||Alarm|
50mm Detection Sensitivity Pipe Metal Detector,
Chemical Industry Pipe Metal Detector,
50mm Detection Sensitivity Food Metal Detector

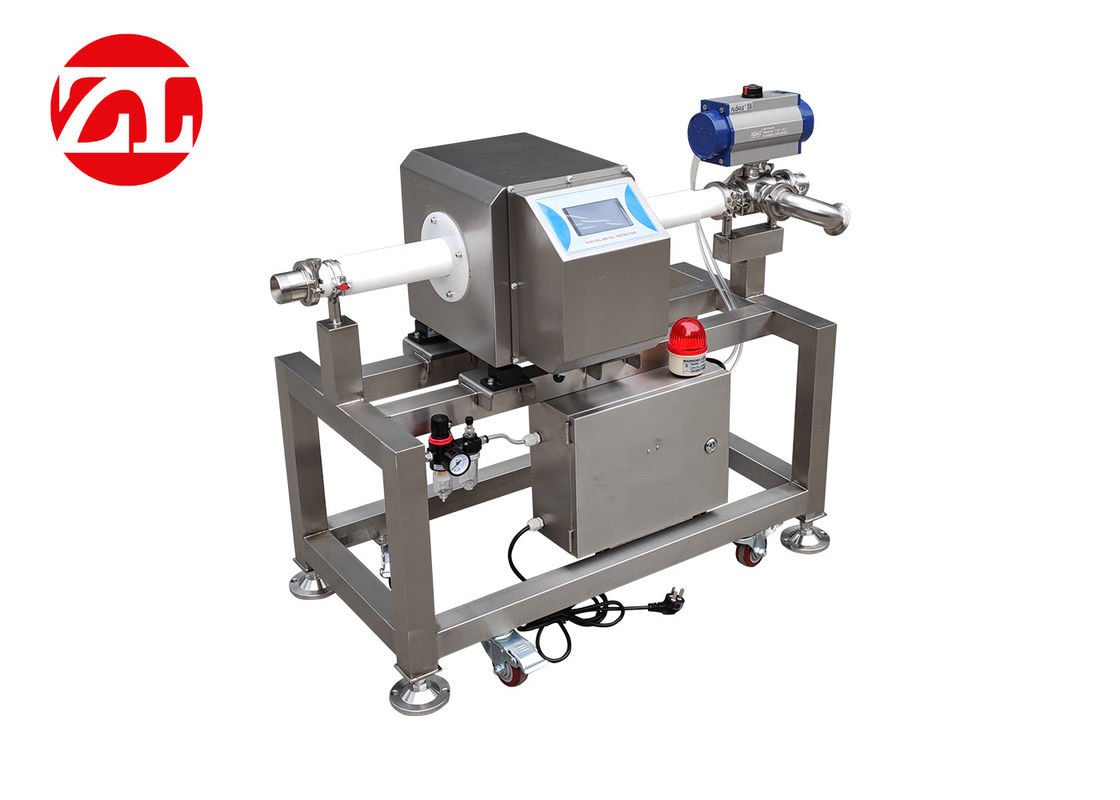

50mm Detection Sensitivity Pipe Metal Detector Used For Food Chemical Industry
First, the application characteristics
1. Testing products: liquid and paste materials
2. Installed on: Pumping system
3. Use industry: Food industry
4. Typical application
Sausage production: between the installation and the enema machine and the sausage machine or the sausage machine, the sausage meat is detected.
Cheese packaging: installation and filling machine and cutting machine
Second, the product description
1. The metal separation system separates magnetic and non-magnetic impurities (steel, stainless steel, aluminum, etc.) from pumped liquid and paste products. It can be easily installed in a vacuum filler or pumping piping system.
2. Once the metal is detected, the reject valve device will remove the impurities into the waste bin. Pneumatic valve rejection is ideal for pastes (sausages, etc.). Pneumatic ball valves are ideal for paste filling systems with granules (eg ham sausages).
3. The metal separator can be mounted on a movable, height-adjustable shelf. The system has a low center of gravity and remains stable even when moving.
Third, product advantages
1. Use quick connect devices for a variety of fill and pump system connections.
2. Very small mounting volume (RZ coil technology)
3. High-strength stainless steel, easy to clean
Fourth, the system consists:
1. Detection system: Double channel metal detection circle round caliber
2. Control System: Multiprocessor Intelligent Controller
3. Separation system: Pneumatic shut-off valve
4. Product effect: Multi-frequency technology
5. Elimination method: Automatic removal of pneumatic ball valve
6. Optional Accessories: Alarm
|Detection channel inner diameter||50mm||65mm||80mm|
|SUS sensitivity||≥ φ1.2mm||≥ φ1.5mm||
Remarks: The above sensitivity is the empty machine status test. The actual use will be affected by the product, environment and other reasons. The actual test shall prevail.
