High Performance XRF Analyzer To Test Solid , Liquid , Powder

High Performance XRF Analyzer To Test Solid , Liquid , Powder
High Performance XRF Analyzer To Test Solid , Liquid , Powder

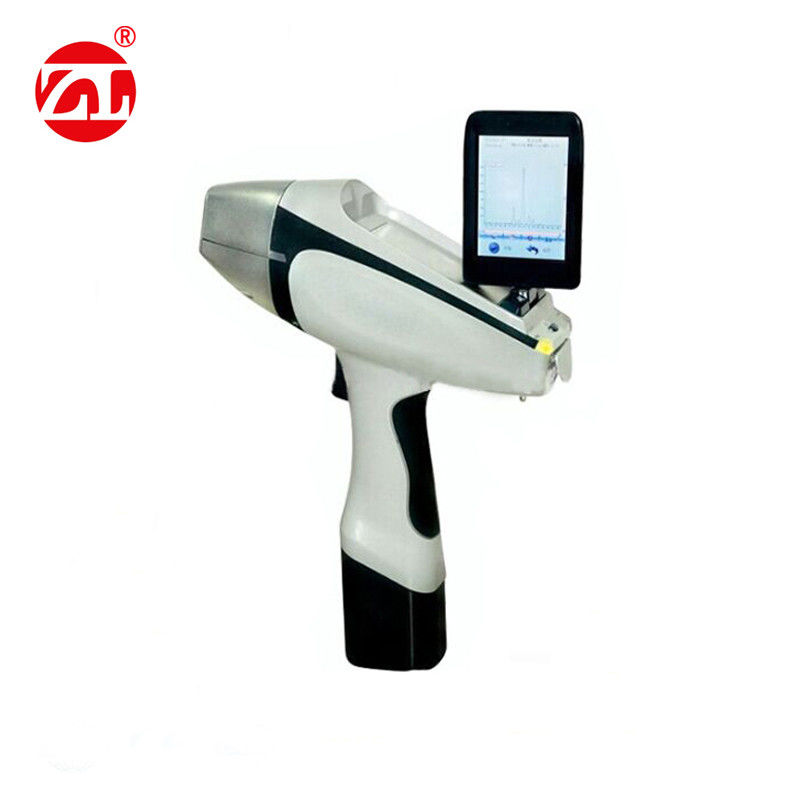

Large Image :  High Performance XRF Analyzer To Test Solid , Liquid , Powder

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-4013
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: XRF analyzer is packaged within wooden case.
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets / month
Detailed Product Description
Product Name: High Performance XRF Analyzer Model: The 4 Th Generation EDX Analyzer-Genius XRF Series
Measurable Range: Mg To U Content Range: Ppm~99.99%
Testing Time: 3-30 Seconds Testing Object: Solid,liquid,powder
High Light:

conveyor metal detector


metal detector checkweigher

High Performance XRF Analyzer To Test Solid , Liquid , Powder




Usage :

The new generational Genius Portable elemental XRF analyzer are designed according to the applications of on-site X-ray analysis in the wild, featuring small and light body, which

Can be held in hands by common people when measuring. It is super small, super light, super beautiful,super safe, super convenient, super long standby time, super precise and super fast. Digital multi-channel technology make the instrument have better detection limit, better stability, and wider application fields.

Portable elemental XRF analyzer series of products has passed strict testing and inspection, and all index are accorded with the related technological requirements, reaching the international advanced level.


Performance index:

  Index Description
1 Model The 4 th generation EDX analyzer-Genius XRF series
3 Measurable range Mg to U
5 Processor and RAM

CUP: 667MHz


Maximum expanded storage: 32G

Standard configuration: 2G , for storage of large amounts of data.

6 Content range ppm~99.99%
7 Testing time 3-30 seconds
8 GPS,WIFI Built-in system of GPS & WIFI
9 Battery time

Chargeable lithium battery, with capacity of 7800mAH, continuously providing

8 working hours ;

Equip with wide voltage (110V-220V) general adapter

10 Testing object Solid,liquid,powder
11 Detector 25mm2 0.3mil,SDD detector
12 Detector resolution Minimum resolution:139eV
13 Excitation source

Target: Ag

High voltage: 5-40kv

Tube current: 1-100 uA

14 Collimator and filter

Collimator kinds: 2 (4.0 mm and 2.0mm diameter)

Filter types: 6

Automatic switch: YES

16 Video system HD CMOS camera
17 Screen TFT-LCD touch screen resolution 640*480
18 Detection limit Detection limit: ppm level
20 Safety Self-contained password administrator mode
21 Gas charging system Optional: Helium charging at ordinary pressure
Operational environment Humidity ≤90%
Temperature -20°C~+50°C
25 Size 234×306×82mm(L×H×W)
  Weight Net weight:1.6kg Battery weight: 0.3kg



Performance Advantages

1. Perfect performance as desktop

Small power end-window integral miniature X-ray tube, large dimension beryllium window SDD detector(the

best detector in the world), and miniature digital signal multi-channel processor, greatly reduce the

testing time and test deviation, and improve the detection precision, which make it have the similar

performance as the desktop.

2. Small body Easy to carry and operate

Small body Easy to carry Convenient for wild work Operation of on-site and in-situ analysis at anytime

or anywhere

3. Nondestructive detection:No destruction to samples

4. Fast detection

Instrument not only can operate fast detection (1-2 seconds) with handheld type, but also can operate

longtime precise detection (more than 10 seconds) with desktop type (plus a pedestal onto it), which

has the similar precision as the laboratory detection.

5. Newly-added light elements detection function

Compared to handheld XRF analyzer of the third generation, it is added the optional gas charging

system, which can charge helium at ordinary pressure .Thus it can test the elements from Mg, greatly

expanded the detecting range.

6. Direct testing

It can detect the targets directly, no need of samples. It can analyze various kinds of samples,

including electronic products, alloy samples, geological and mining, soil, rock, residues, small solid

particles, liquid sediments etc.

7. CMOS HD camera, more accurate testing :Built-in CMOS HD camera, observing the testing position at any


8. Easy for calibration of deviation

Multi-testing modes and free adding of modes installation, coordinating with automatic testing mode

matching functions, it achieves one-key testing. Built-in intensify calibration methods, it can calibrate

the deviation caused by different geometry shapes and inhomogeneous structure density.

9. Professional software, easy to operate

Professional minerals testing software and brand new interface and core, combining FP with EC, the

instrument has wider application fields.

10. Collimator & filter, improving efficiency by 3 times

On the basis of the combination of collimator and filter, increase them from 4 groups to 12 groups,

increased by 3 times.

11. Faster data transmission

Embedded Window CE system, HD touch screen (resolution 640*480), digital multi-channel technology, and SPI data transmission, it effectively improves the data transmission ability and

counting ability of

the instrument.

12. Radiation protection, care for health

Having functions of triple safety protection, automatic sensation, automatically shut-down of X light pipe within

2 seconds with no sample in testing; The radiation level is far lower than the international safety standard

when working, with no radiation leakage; accompanied with test safety cover.

13. Strong power, convenient for charging

Lithium battery, with maximum capacity of 7800mAH, can continuously work for 8 hours, whose

endurance are 2 times longer compared to last three generations .And it is equipped with wide voltage ac

charger or vehicular charger ,which ensure the testing at any place or any time.

14. Warning instructions prevent for mistaken operation

Equipped with warning instruction system, green light flashes when the power is on and the yellow light flashed

when testing, which prevent for mistaken operation.

15. Multiple protection and durable

The instrument has waterproof and dustproof function and can continuously work under high

temperature and humidity. Its protection boxes are manufactured with high strength military material,

which enjoy with well moistureproof, shockproof, and pressure resistant functions.


Standard Accessories

Waterproof Carrying Case

Two (2) Li-ion Batteries

User Interface Guide

Mini USB Cable

316 Stainless Steel Calibration Check Reference Coin

Integrated Wrist Strap

Analyzer Software
