AMD-01-F All - Metal Detector Machine Test Aluminum Foil Wrapper Products

AMD-01-F All - Metal Detector Machine Test Aluminum Foil Wrapper Products
AMD-01-F All - Metal Detector Machine Test Aluminum Foil Wrapper Products
video play

Large Image :  AMD-01-F All - Metal Detector Machine Test Aluminum Foil Wrapper Products

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-4010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: AMD-01-F All - Metal Detector Machine Test Aluminum Foil Wrapper Products is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets / month
Detailed Product Description
Product Name: All-metal Detector For Aluminum Foil Detection Height: 80-150mm
Approx Weight: 250kg Detection Speed: 25m/min
Power: 90W Voltage: 220V/50Hz
High Light:

conveyor metal detector

,

metal detector checkweigher

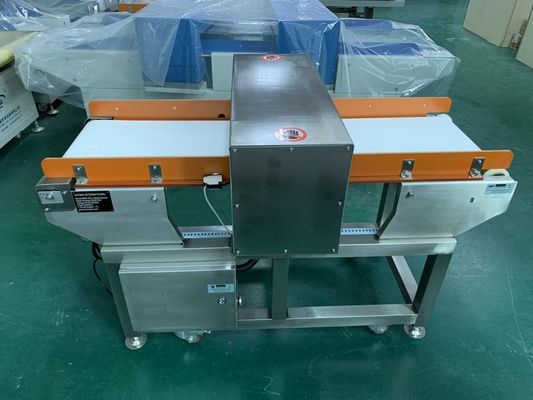

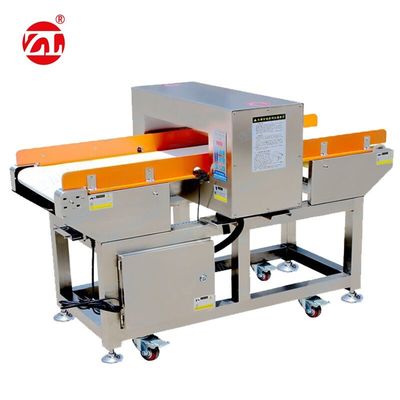

AMD-01-F All-Metal Detector Dedicated To Aluminum Foil Wrapper Products





Product Overview:



· Detection object: Food, frozen products, salt, medical gloves and other products



· Deteciton goal: Detect the metal foreign matters in the detected material. Such as Gold, aluminum, copper, iron, stainless steel



· Profession scope: Various food additives, food, meat, plastics recycling industry,chemical rubber and medical drugs etc.



· Usage: Inspect the product after packing ,when weighing, labeling, and equip with excluded institutions of plate over to remove unqualified products



System Composition



Detection system:Dual-channel metal detection coil with rectangular aperture (no points)

Control system: ADLINE microprocessor controller ,Level of protection: IP 65

Conveyors: high strength mirror stainless steel structure with all welded,

Joint-body PU (polyurethane) conveyor belt ,Anti-crooked running treatment for the conveying belt.

Different kinds of excluded institutions: plate over ,wall rod and rocker arm and blowing





Detection width Detection height Detection accuracy (no-load machine) Volume Approx weight Detection speed Power Voltage
400 80mm Fe≥Φ0.7mm Sus≥Φ1.5 mm 1200*660*960mm 250kg 25m/min 90W 220V/50Hz
120mm Fe≥Φ0.9mm Sus≥Φ2.3 mm 1200*660*1000mm
150mm Fe≥Φ1.0mm Sus≥Φ2.5 mm 1200*660*1030mm



AMD-01-F All - Metal Detector Machine Test Aluminum Foil Wrapper Products 0



AMD-01-F All - Metal Detector Machine Test Aluminum Foil Wrapper Products 1
