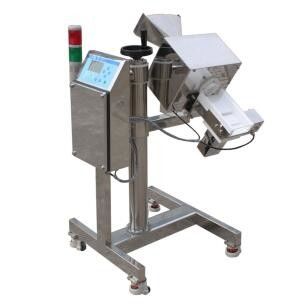

High Accuracy Pharmaceutical Metal Detectors For Pills , Capsules , Granules

Large Image : High Accuracy Pharmaceutical Metal Detectors For Pills , Capsules , Granules

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-4025

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	High Accuracy Pharmaceutical Metal Detectors For Pills , Capsules , Granules is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	High Accuracy Pharmaceutical Metal Detectors For Pills , Capsules , Granules	Angle Adjustable:	30˚ ~ 40˚
Inlet Size:	150mm * 100mm	Pipe Diameter:	Ф40mm
Inlet Height (adjustable):	800( Max+150)mm	Outlet Height(adjustable):	350( Max +150)mm
Detect Sensitivity:	FeΦ：0.4mm, SUSΦ：0.6mm	Meet Standards:	HACCP, GMP, GAMP, FDA, IFS, ISO9001
Highlight:	Pills Pharmaceutical Metal Detectors , Granules Metal Detector Machine

High Accuracy Pharmaceutical Metal Detectors for Pills, Capsules, and Granules

ZL-4025 pharmaceutical metal detector is engineered specifically for the medical and health products industry, delivering exceptional detection accuracy. Built with German technology, this system offers ultra-high sensitivity, stable and reliable performance, and rapid removal of products containing metal contaminants.

Application Scope

Ideal for detecting metal foreign substances in pills, tablets, capsules, granules, and fine powder formulations.

Key Features

Precision detection of minute metal particles in medicines with processing speeds up to 15,000 grains per minute
Versatile handling of multiple medicine types with space-saving compact rack design
Automatic rejection system utilizing food-grade PVC materials
Enhanced detection sensitivity exceeding industry standards, capable of detecting iron balls as small as 0.3mm diameter
Adjustable sensitivity based on product characteristics with real-time detection/rejection counting and manual record clearing
Constructed from all stainless steel with IP66 waterproof rating, vibration resistance, environmental adaptability, and easy cleaning
Modular component design for convenient and rapid maintenance
Multi-language interface support (Chinese, English, Japanese, with custom languages available)
Compliance with HACCP, GMP, GAMP, FDA, IFS, ISO9001 and other relevant certification standards

Technical Specifications

Model	ZL-4025-20	ZL-4025-40	ZL-4025-60	ZL-4025-80
Description	Pharmaceutical metal detectors for Capsules & Tablets
Angle Adjustable	30˚ ~ 40˚	30˚ ~ 40˚	30˚ ~ 40˚	30˚ ~ 40˚
Inlet Size	150mm * 100mm	150mm * 100mm	150mm * 100mm	150mm * 100mm
Pipe Diameter	Φ20mm	Φ40mm	Φ60mm	Φ80mm
Inlet Height (Adjustable)	940mm (Max+200mm)	940mm (Max+200mm)	940mm (Max+200mm)	940mm (Max+200mm)
Outlet Height (Adjustable)	590mm (Max+200mm)	590mm (Max+200mm)	590mm (Max+200mm)	590mm (Max+200mm)
Detect Sensitivity	Fe Φ:0.2mm Non Fe Φ:0.4mm SUS Φ:0.4mm	Fe Φ:0.4mm Non Fe Φ:0.5mm SUS Φ:0.6mm	Fe Φ:0.8mm Non Fe Φ:1.0mm SUS Φ:1.2mm	Fe Φ:1.0mm Non Fe Φ:1.2mm SUS Φ:1.5mm
Max. Capacity	400 L/H	2000 L/H	5000 L/H	12000 L/H
