Food Processing Metal Detector Conveyor Belt Metal Detector for Industry

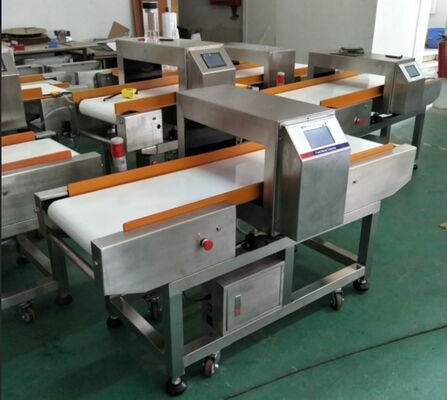

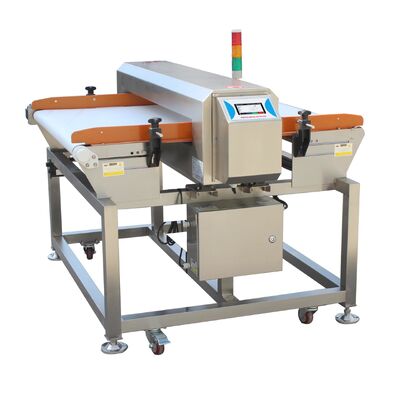

Large Image : Food Processing Metal Detector Conveyor Belt Metal Detector for Industry

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-4001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	2800-3500
Packaging Details:	Conveyor Belt Food Metal Detection Machine is packaged within wooden case.
Delivery Time:	7-14 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	Food Processing Metal Detector Conveyor Belt Metal Detector For Industry	Size:	100-120-150-200-250-300-350-400-customize
FE Sensitivity:	0.6-3.0-customize	Non-Fe Sensitivity:	1.2-3.5-customize
SUS Sensitivity:	1.5-4.0-customize	Speed:	10-30 M/min Optional (default Constant Speed)
Machine Weight:	About 200～250KG	Certificate:	CE
Highlight:	industrial food metal detector , conveyor belt metal detector , food processing metal detector

Food Processing Metal Detector Conveyor Belt Metal Detector for Industry

The High precision metal detector can detect all metal foreign objects. It is designed according to European and American safety standards. The design of the whole machine meets the requirements of food machinery and is suitable for connection to assembly line inspection operations.

Applicable Industries:

Food, medicine, toys, clothing, shoe making, chemical industry, leather, knitting and other industry products, used to detect metal impurities mixed in various products or raw materials during production and processing. Such as: iron and non-ferromagnetic metal objects (common metals such as iron, copper, aluminum, stainless steel, etc. can be detected)

Machine Parameter:

SIZE		ZL-4001B
		4010	4012	4015	4020	4025	4030	4035	4040
Detection Width(mm)		400(Other widths can be customized)
Detection Height(mm)		100	120	150	200	250	300	350	400
Sensitivity	FE (Ф mm)	≥0.6	≥0.8	≥1.0	≥1.2	≥1.5	≥2.0	≥2.5	≥3.0
	Non-Fe (Ф mm)	≥1.2	≥1.2	≥1.5	≥1.8	≥2.0	≥2.5	≥3.0	≥3.5
	SUS (Ф mm)	≥1.5	≥1.8	≥2.0	≥2.3	≥2.5	≥3.0	≥3.5	≥4.0
Alarm Method		Automatically shut down when metal foreign objects are detected, and output 12V buzzer alarm sound to warn and rewind.
Machine Size		1330×720×1000(L×W×H) customized size is subject to actual size
Belt Material		Food grade PVC Belt (Food grade PU Belt (Can Contact Food) Selection)
Speed		10-30 m/min optional (default constant speed)
Machine Weight		About 200～250KG
Power		220V 50Hz , 120W(can be customized)
Load Capacity		Within 20KG (customizable)
The Height from ground to the belt		Height 700mm (other heights can be customized)
Storage Function		99 products, 990,000 data.
Optional		7-inch touch screen with USB interface, data can be exported
Optional		Rejection of duplicates, push rods, and air blows
The sensitivity parameter is the approximate value of the empty machine test, and the actual test parameter will be added or subtracted depending on the test object.

Food Processing Metal Detector Conveyor Belt Metal Detector for Industry 0
