Metal Detector in Food Processing Industries, Industrial Metal Detector Conveyor

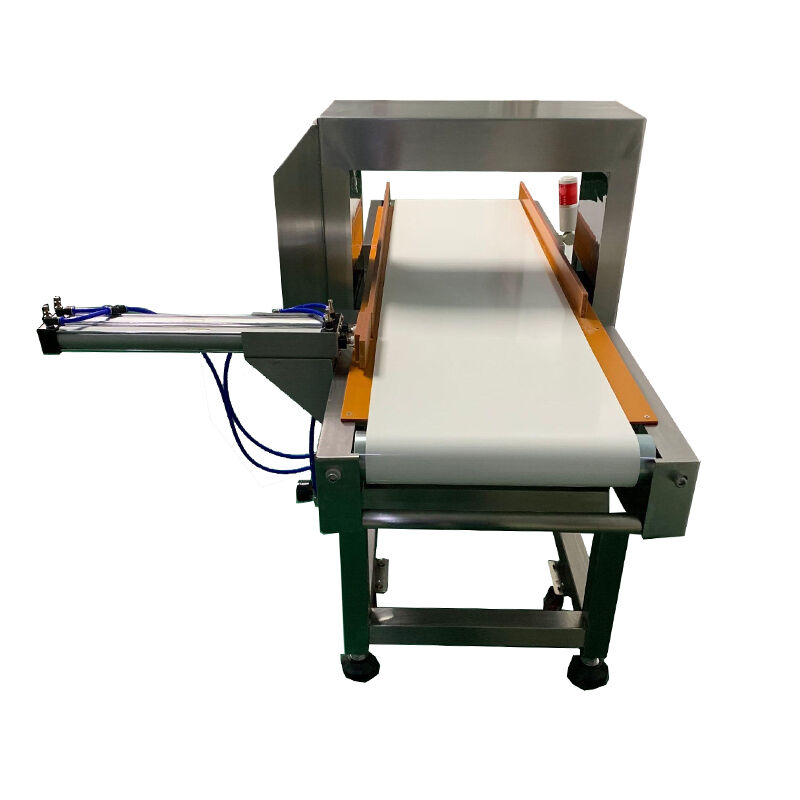

Large Image : Metal Detector in Food Processing Industries, Industrial Metal Detector Conveyor

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-4001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	2800-3500
Packaging Details:	Metal Detector in Food Processing Industries, Industrial Metal Detector Conveyor is packaged within wooden case.
Delivery Time:	7-14 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	Metal Detector In Food Processing Industries, Industrial Metal Detector Conveyor	FE Sensitivity:	0.6-3.0-customize
Non-Fe Sensitivity:	1.2-3.5-customize	SUS Sensitivity:	1.5-4.0-customize
Speed:	10-30 M/min Optional (default Constant Speed)	Certificate:	CE
Storage Function:	99 Products, 990,000 Data	Optional:	Rejection Of Duplicates, Push Rods, And Air Blows
Highlight:	industrial metal detector conveyor , food processing metal detector , metal detector machine with warranty

Metal Detector in Food Processing Industries, Industrial Metal Detector Conveyor

Features:

1. It adopts full digital DSP programming design and dual-channel signal detection circuit merging technology, with high sensitivity and high anti-interference ability.

2. Adopt 4.3inch touch screen.

3. The signal processing is automatically calculated by the digital chip, which can quickly and automatically learn to obtain the best detection phase. It can store and memorize 99 products and 990,000 data, which is stable and reliable.

4. With automatic learning function of product effect, such as sugar-containing products, salt-containing food, such as: meat products, etc., will produce metal-like signals to the metal detector, this effect will affect the detection effect, this function can automatically reduce the product effect to achieve the best effect.

5. The whole machine frame is made of 304 stainless steel laser cutting welding technology and wire drawing process, food-grade white PVC or PU belt, Japanese brand bearing and 5 cm thick 304 seamless steel pipe drum Ф60mm, using Japan Mitsubishi synchronous belt and Taiwan Wanxin brand motor .

6. Detector alarm mode: buzzer alarm/stop, with super shockproof ability, collision and knocking will not cause false alarm.

Machine Parameter:

SIZE		ZL-4001B
		4010	4012	4015	4020	4025	4030	4035	4040
Detection Width(mm)		400(Other widths can be customized)
Detection Height(mm)		100	120	150	200	250	300	350	400
Sensitivity	FE (Ф mm)	≥0.6	≥0.8	≥1.0	≥1.2	≥1.5	≥2.0	≥2.5	≥3.0
	Non-Fe (Ф mm)	≥1.2	≥1.2	≥1.5	≥1.8	≥2.0	≥2.5	≥3.0	≥3.5
	SUS (Ф mm)	≥1.5	≥1.8	≥2.0	≥2.3	≥2.5	≥3.0	≥3.5	≥4.0
Alarm Method		Automatically shut down when metal foreign objects are detected, and output 12V buzzer alarm sound to warn and rewind.
Machine Size		1330×720×1000(L×W×H) customized size is subject to actual size
Belt Material		Food grade PVC Belt (Food grade PU Belt (Can Contact Food) Selection)
Speed		10-30 m/min optional (default constant speed)
Machine Weight		About 200～250KG
Power		220V 50Hz , 120W(can be customized)
Load Capacity		Within 20KG (customizable)
The Height from ground to the belt		Height 700mm (other heights can be customized)
Storage Function		99 products, 990,000 data.
Optional		7-inch touch screen with USB interface, data can be exported
Optional		Rejection of duplicates, push rods, and air blows
The sensitivity parameter is the approximate value of the empty machine test, and the actual test parameter will be added or subtracted depending on the test object.
