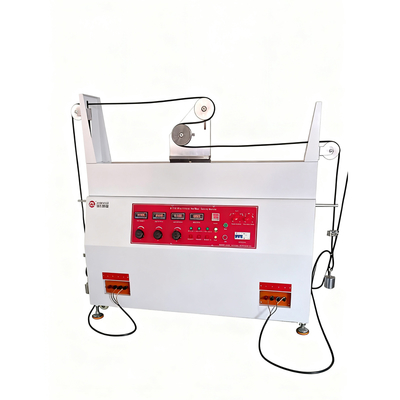

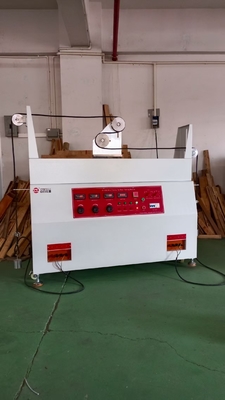

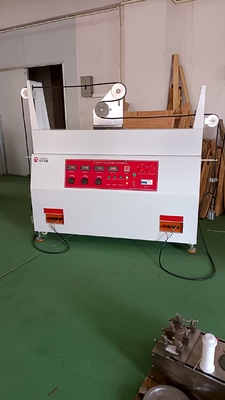

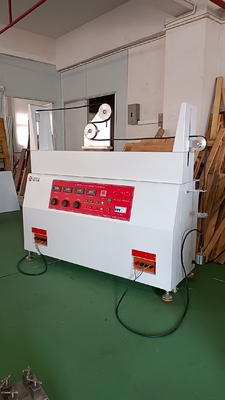

Wire and Cable Mechanical Flexing Test Equipment with Standards IEC 227 IEC 245 UL 1581 VDE 0472

Large Image : Wire and Cable Mechanical Flexing Test Equipment with Standards IEC 227 IEC 245 UL 1581 VDE 0472

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1052

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC 227 IEC 245 UL 1581 VDE 0472 Wire and Cable Mechanical Flexing Test Equipment is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 sets / month

Contact Now

Detailed Product Description

Product Name:	IEC 227 IEC 245 UL 1581 VDE 0472 Wire And Cable Mechanical Flexing Test Equipment	Carriage Stroke:	1000 Mm
Carriage Speed:	0.33 M/s (for Two Pulleys)	Weight Loads:	Two Sets Of Weights: 500 G, 1000 G, 2000 G, 3000 G, 7000 G (10 Weights Total)
Pulley Diameters:	60 Mm, 80 Mm, 120 Mm, 160 Mm, 200 Mm	Test Stations:	Two Dual-pulley Stations (one Mechanism, One Pulley Set)
Counter:	Electronic, 6-digit, Auto-stop Upon Reaching Set Cycles
Highlight:	cable flexing test equipment , wire mechanical testing machine , IEC standard cable tester

Wire and Cable Mechanical Flexing Test Equipment with Standards IEC 227 IEC 245 UL 1581 VDE 0472

Overview:

The Wire and Cable Flexing Testing Machine supports multiple test loads, meeting the dynamic flexing test requirements for soft wires and cables by manufacturers and inspection departments.

Applicable Standards:

Designed and manufactured in compliance with IEC 227-2, IEC 245-2, UL 1581, VDE 0472, IEC 60227-2(ed2)1997, IEC 60245-2(ed2)1994+A1:1997, HD22.1 Section 5.6.3.1/5.6.3.2, and GB 5023.2 standards.

Technical Specifications:

Carriage Stroke	1000 mm
Carriage Speed	0.33 m/s (for two pulleys)
Weight Loads	Two sets of weights: 500 g, 1000 g, 2000 g, 3000 g, 7000 g (10 weights total) Combinable weights: 1+0.5=1.5 kg, 3+0.5=3.5 kg, 3+1=4 kg, 1+2+3=6 kg, 7+0.5=7.5 kg

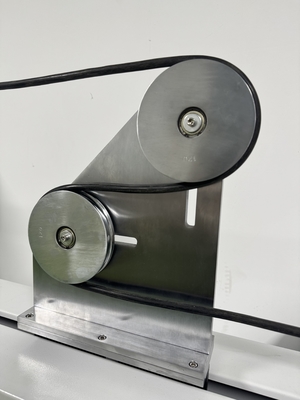

Pulley Diameters	60 mm, 80 mm, 120 mm, 160 mm, 200 mm (one set includes two pulleys)
Test Stations	Two dual-pulley stations (one mechanism, one pulley set)
Test Current	1.5–12.5 A or 3–32 A (customizable)
Test Voltage	Adjustable 1∮ AC 220 V 50/60 Hz or 3∮ AC 380 V 50/60 Hz
Counter	Electronic, 6-digit, auto-stop upon reaching set cycles
Weight	150 kg (W×D×H188×53×150 cm)
Power Supply	3∮ AC 380 V, 35 A
Overall Dimensions	1800 × 650 × 1400 mm (L×W×H)
Pass Criteria	No open or short circuit until cycle completion
Fail Criteria	Open circuit, short circuit, or sample-pulley short circuit during testing
Sample Types	Single-core, two-core, three-core
Three-Core Voltage Options	Adjustable 0 V, 220 V, 380 V
Power System	Three-phase five-wire system (A/B/C: live wires, N: neutral, ground wire)

Wire and Cable Mechanical Flexing Test Equipment with Standards IEC 227 IEC 245 UL 1581 VDE 0472 0
