X,Y,Z Vibration Tester Electromagnetic Vibration Table Electromagnetic Vibration Table

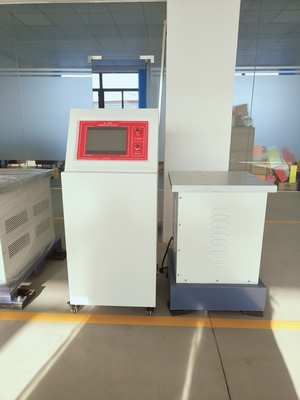

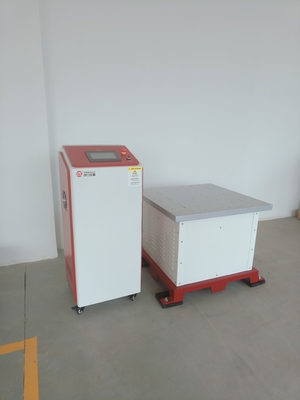

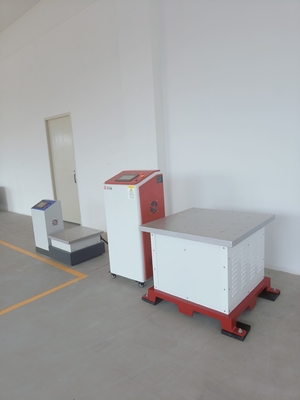

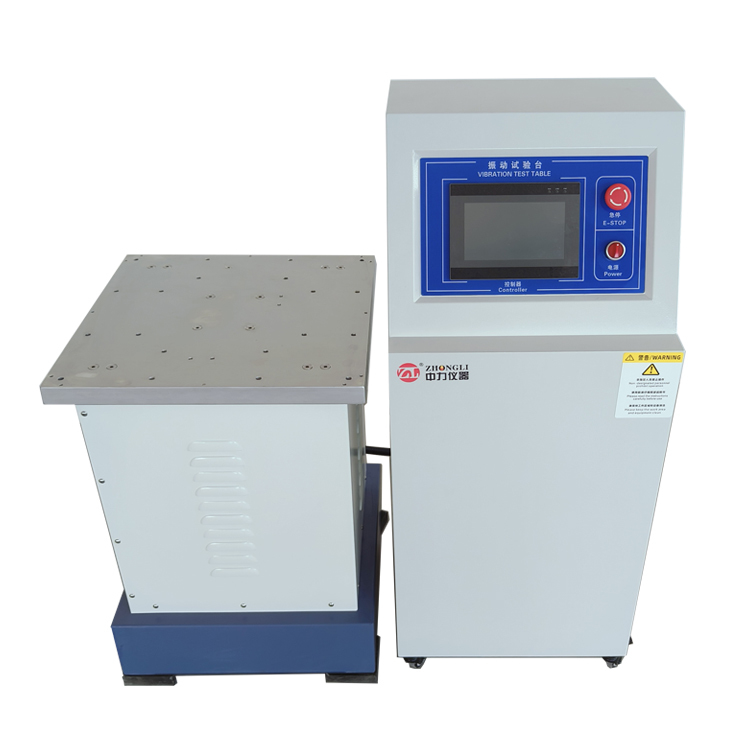

Large Image : X,Y,Z Vibration Tester Electromagnetic Vibration Table Electromagnetic Vibration Table

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1002

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	X,Y,Z vibration Tester Electromagnetic Vibration Table Electromagnetic Vibration Table is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	X,Y,Z Vibration Tester Electromagnetic Vibration Table Electromagnetic Vibration Table	Frequency Range (Hz):	1～600
Product Load (Kg):	50 (other Specifications Can Be Customized)	Vibration Direction:	Vertical / Vertical Horizontal / Three-axis (X+Y+Z) Optional
Workbench Size (mm):	(W) 500×(D) 500	Frequency Accuracy:	0.1 Hz
Maximum Peak Acceleration:	20g
Highlight:	electromagnetic vibration tester table , vibration table for cable testing , XYZ electromagnetic vibration tester

X,Y,Z Vibration Tester Electromagnetic Vibration Table Electromagnetic Vibration Table

Product Introduction:

The electromagnetic vibration table is an economical, highly cost-effective sinusoidal vibration test equipment (with functions covering fixed frequency vibration, linear frequency sweep vibration, logarithmic frequency sweep, frequency doubling, program, etc.). It simulates the vibration and its impact suffered by electrical and electronic products during transportation (vibration generated on ships, aircraft, vehicles, and spacecraft), storage, and use in the laboratory, and evaluates their adaptability.

The electromagnetic vibration table is widely used in the product design, research and development, and manufacturing process of various industries such as automotive parts, instruments, and toys. It simulates the collision and vibration generated by products during transportation and use, and detects the actual working conditions and structural strength of the products.

Reference Standards:

ISO 2247, ISO 13355, IEC 60068, ASTM D999, ASTM D4728, ASTM D3580, GB/T 4857, GB/T 2423…

Technical Parameters:

Product Model	ZL-1002
Frequency Range (Hz)	1～600
Product Load (Kg)	50 (other specifications can be customized)
Vibration Direction	Vertical / vertical horizontal / three-axis (X+Y+Z) optional
Workbench Size (mm)	(W) 500×(D) 500 (other specifications can be customized)
Workbench Body size (mm)	(W) 500×(D) 500×(H) 720
Control Box Size (mm)	(W) 450×(D) 400×(H) 1080
Frequency Accuracy	0.1 Hz
Maximum Peak Acceleration	20g (varies with frequency, cannot be displayed, optional sensor monitoring)
Control Method	7-inch industrial touch screen
Amplitude (mm)	0-5 (varies with frequency, cannot be displayed, optional sensor monitoring)
Excitation Method	Electromagnetic type
Amplitude Modulation Method	Electronic amplitude modulation
Vibration Waveform	Sine wave
Time Setting Range	0-9999H/M/S can be set arbitrarily
Number of Cycles	0-9999 can be set arbitrarily
Safety Protection	Over temperature, phase loss, short circuit, over current, overload
Cooling Method	Air cooling
