Automatic PC System Mooney Viscometer Rubber Torque Equipment

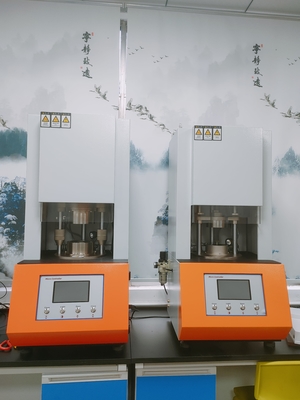

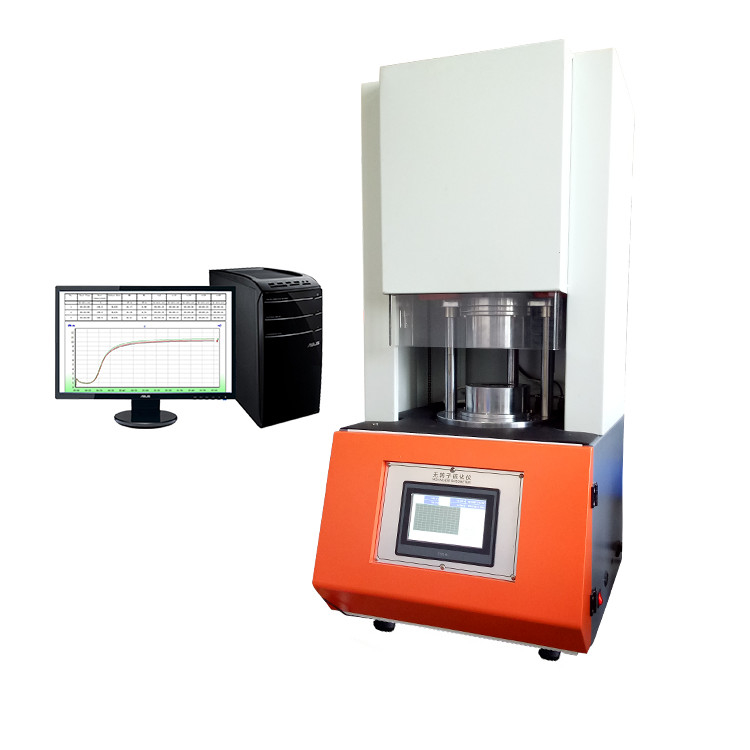

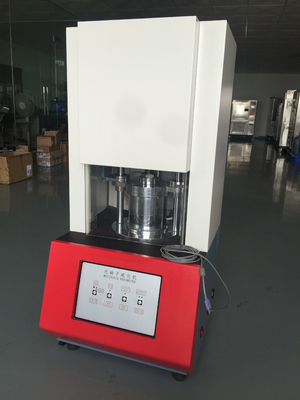

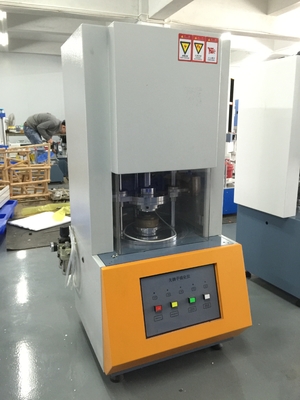

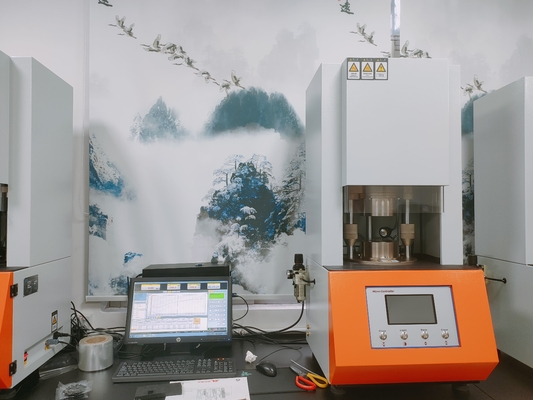

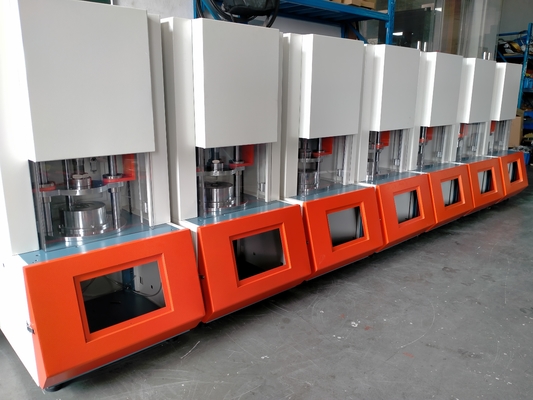

Large Image : Automatic PC System Mooney Viscometer Rubber Torque Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM-D2084 Elastomers and Rubbers Mooney Viscometer 200℃ With Large Rotor is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Automatic PC System Mooney Viscometer Rubber Torque Equipment Price	Meet Standard:	GB/T16584, ISO6502:1991 And ASTMD5289-95
Temperature Tester:	Room Temperature To 200°C	Heating Speed:	Room Temperature—200℃,about 10 Min
Temperature Accuracy:	≤ ±0.1°C	Temperature Resolution:	0.1°C
Torque Range:	0-5N.M、0-10N.M、0-20N.M (option)	Torque Resolution::	0.001NM
Motor Rotating Speed:	100 Times / Min	Rotor Type:	Rotor Less
Highlight:	Rubber Torque Mooney Viscometer , PC System Mooney Viscometer , 0.001NM Rubber Testing Machine

Automatic PC System Mooney Viscometer Rubber Torque Equipment

Product Documentation

Download Technical Brief: ZL-3001 No Rotor Rheometer

Software Features

Testing Standardization: Compliant with GB/T16584, ISO6502:1991 and ASTMD5289-95 standards
Specimen Information Management: Customizable material numbering and free-form titles
Dynamic Testing Adjustment: Real-time modification of testing duration during operation for optimal results
Automatic Graph Optimization: Intelligent curve scaling (Auto Scale) for clear, professional data visualization
Multi-Material Comparison: Built-in data comparison capabilities for different materials

Industry Applications

Widely used across rubber products manufacturing industries for quality control and research applications.

Technical Specifications

Parameter	Specification
Model	ZL-3001 No Rotor Rheometer
Standards Compliance	GB/T16584, ISO6502:1991, ASTMD5289-95
Temperature Range	Room temperature to 200°C
Heating Speed	Room temperature to 200°C in approximately 10 minutes
Temperature Accuracy	≤ ±0.1°C
Temperature Resolution	0.1°C
Torque Range	0-5N.M, 0-10N.M, 0-20N.M (optional)
Torque Resolution	0.001NM
Motor Speed	100 times/minute
Rotor Type	Rotorless design
Die Body Frequency	1.7Hz±0.1Hz (100r/min)
Rotor Swing Angle	±0.5°, ±1°, ±3°
Testing Time Setting	3-120 minutes (freely selectable)
Air Pressure	0.5-0.65MPa
Operating Environment	0-35°C ambient temperature
Output Data	Date, time, temperature, vulcanization curve, temperature curve, ML, MH, ts1, ts2, t10, t50, Vc1, Vc2
Power Consumption	800W
Dimensions	640mm * 580mm * 1300mm
Power Supply	Single phase, 220V±10%, 50Hz
Display System	Windows 7 with dedicated software
Weight	260kg

About Zhongli Instrument Technology

Zhongli Instrument Technology Co., Ltd. is a leading instrument manufacturer headquartered in Dongguan, Guangdong, China. Since our establishment in 2007, we have specialized in manufacturing high-quality laboratory testing equipment for various industries.

With over 14 years of industry experience, our products have established strong market presence across Europe, America, and Southeast Asia, serving more than 95 countries worldwide. Our equipment is particularly favored by European and American markets for its reliability and precision.

Our comprehensive product range serves multiple industries including rubber and plastics, food processing, packaging, electronics, and is suitable for scientific research institutions, quality inspection organizations, and academic applications.

In addition to our standard equipment catalog, our dedicated R&D team offers custom solutions tailored to specific customer requirements. Contact us with your testing needs for personalized equipment solutions.
