Product Details:
Payment & Shipping Terms:
|
| Product Name: | Factory Directly 110L 150L 200 Liter Plastic Mixer Rubber Dispersion Kneader Price | Electric Heating: | 1.2KW |
|---|---|---|---|
| Water Cooling: | 0.2-0.4MPA | Drive Motor: | 5.5KW |
| Air Compressor: | 2.2KW | Key Words: | Electricity Heating, Water Cooling |
| Weight: | 300kg | Remark: | Electricity Heating & Water Cooling ( Option) |
| High Light: | Plastic Mixer Rubber Dispersion Kneader,2.2KW Rubber Dispersion Kneader,200 Liter Banbury Mixer |
||

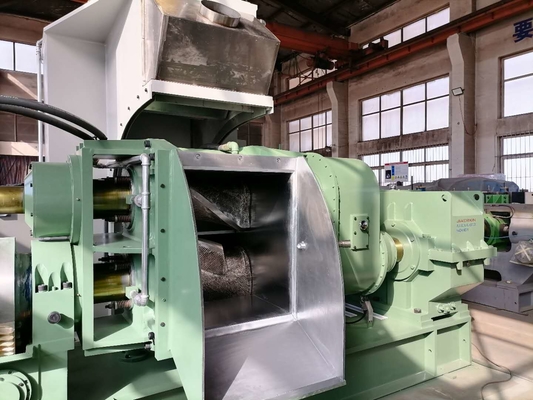

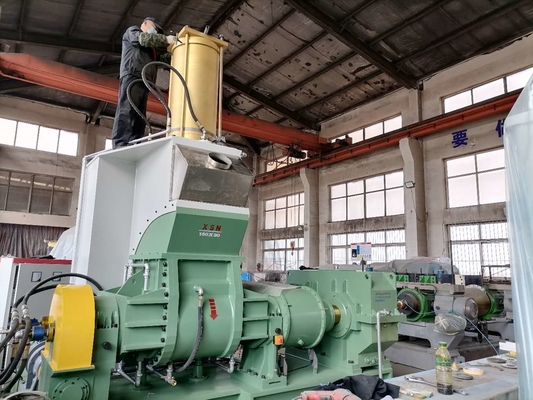

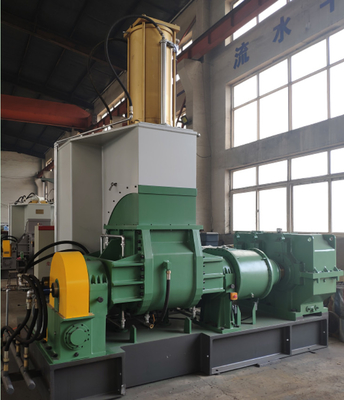

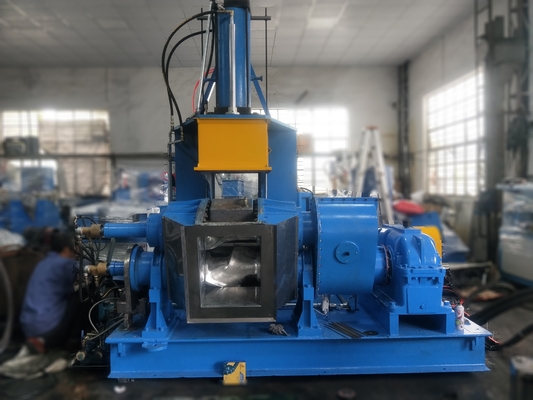

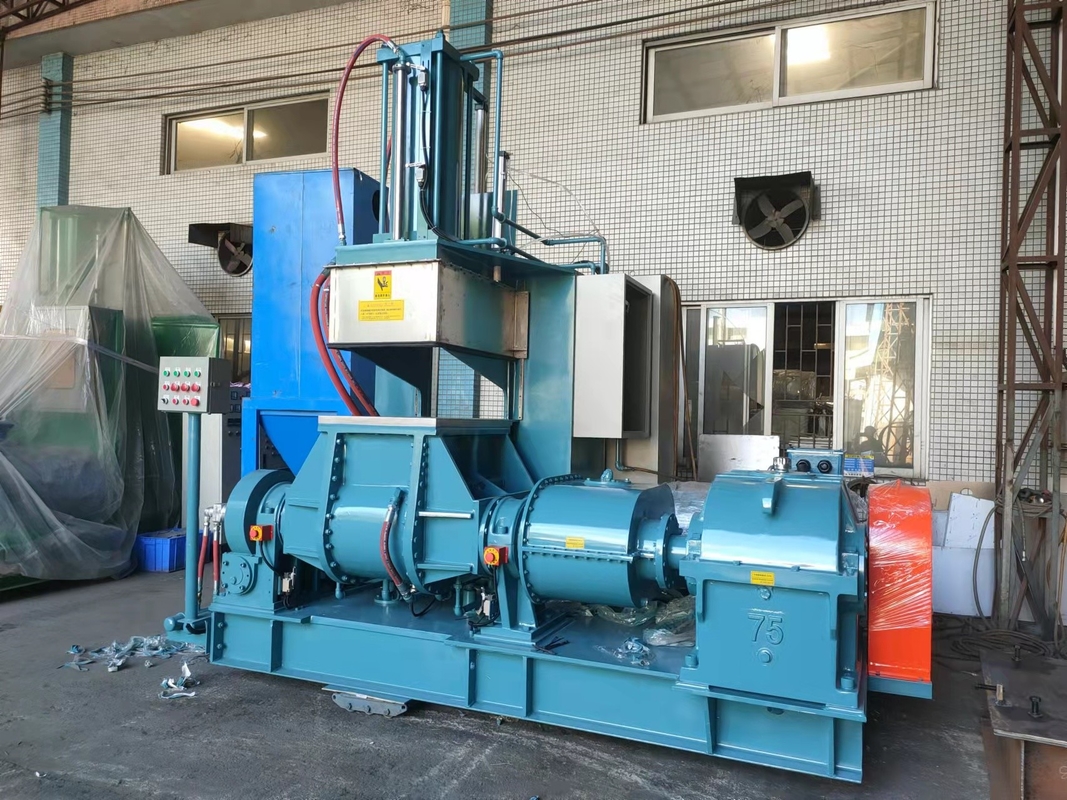

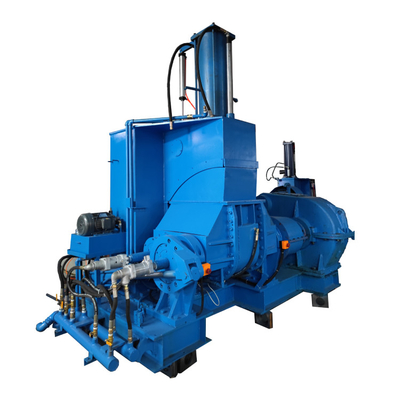

Factory Directly 110L 150L 200 Liter Plastic Mixer Rubber Dispersion Kneader Price
Basic knowledge of internal mixer Basic structure
The internal mixer is generally composed of an internal mixing chamber, two relatively rotating rotors, an upper top bolt, a lower top bolt, a temperature measurement system, a heating and cooling system, an exhaust system, a safety device, a discharge device and a recording device. The surface of the rotor has helical protruding ribs, and the number of protruding ribs is two, four, six, etc. The cross-sectional geometry of the rotor is triangular, cylindrical or elliptical, and there are two types of tangential and meshing. . The temperature measurement system is composed of thermocouples, which are mainly used to measure the temperature change in the mixing chamber during the mixing process; the heating and cooling system is mainly used to control the temperature of the rotor and the surface of the chamber wall in the mixing chamber.
Detailed Product Description:
The machine is suitable for rubber, plastic, chemical and other industries. The most suitable mixtures: EVA, rubber, TPR, sole, rubber roller, hose, belt, sponge, shockproof and heat insulation, elastic coding, sealing material, tire, tape, masterbatch, pigment and ink.Electric rubber, compound.
The feature for dispersion kneader:
1. An automatic temperature and time control system to provide a 100% mixing result.
2. Easy to clean chamber and changing colors.
3. In6~10minutes/batch of output equivalent to 2 units of open mixing mill.
4. Pressurized and sealed mixing chamber to provide high mixing performance and prevent the environment.
5. Easy installation, operation and maintenance, lower the running cost.
Technical parameters:
| MODLE | UNIT | ZL-3011 -0.5 | ZL-3011 -1 | ZL-3011-3 | Zl-3011-5 | ZL-3011-10 | Zl-3011-15 | ZL-3011-20 |
| Volume | L | 0.5 | 1 | 3 | 5 | 10 | 15 | 20 |
| Drive motor | kw | 1 | 2.2 | 5.5 | 7.5 | 15 | 22 | 30 |
| Turning motor | kw | 0.2 | 0.2 | 0.4 | 0.4 | 0.75 | 1 | 1.5 |
| Turning angle | 110 | 110 | 110 | 110 | 110 | 110 | 110 | |
| Air compressor | kw | 2.2 | 2.2 | 2.2 | 2.2 | 5.5 | 5.5 | 5.5 |
| Water cooling | mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 |
| Electric heating | Kw | 0.8 | 0.8 | 1.2 | 1.8 | 1.9 | 2.1 | 4 |
| Weight | KG | 500 | 800 | 1000 | 1200 | 2300 | 2800 | 4500 |
| Remark: Electricity heating & Water cooling ( option) | ||||||||
Download Brief:
ZL-3011A Banbury mixer-kneader.pdf
Advantage Service:
1. We have R&D, designing department which can not only provide technological machines but also can satisfy special customized needs of our clients.
2. Over 50 years’ manufacturing experience, advanced machine and sophisticated handcraft.
3. There are TWO laboratories in our factory: Environmental laboratory and Physical laboratory.
4. Our factory have adequate stock monthly, which can meet customers’ urgent needs.
5. Annual sales over 1,000,000USD; 30,000㎡manufacturing base, equipped with 120 technicians, we are capable to take large budget project.
Technical Support:
1. SUS Stainless plate is cut by advanced leaser machine which can ensure accuracy; All machine appearance is anti-rust electrostatic painting;
2. Imported electronic components: ABB/Siemens/Panasonic/Saginomiya/Danfoss/Emkarate/Omron and imported compressor:BOEK/TECUMSEH, which can keep the machine’s service life over 10 years.
