0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine

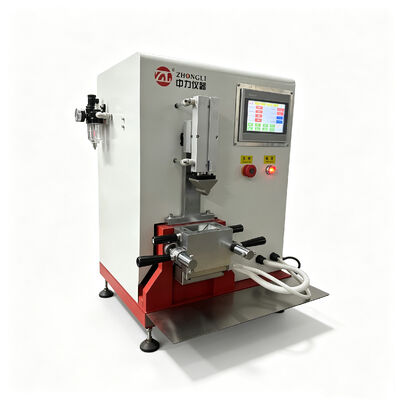

Large Image : 0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3011F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS3500
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Mixing Chamber Volume:	0.05L	Main Motor:	AC Motor, 1.5 KW Power
Speed Ratio Of Front And Rear Rotors:	1:1.20 Or ST Synchronous Rotor	Rotor Speed:	0–36 RPM
Feeding Hopper:	Manual Operation	Control Method:	Manual Or Semi-automatic Operation

0.05L Mini Desktop Laboratory Banbury Mixer

Product Overview

Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine designed for laboratory applications, featuring compact desktop design and precise mixing capabilities.

Technical Specifications

Mixing chamber volume: 0.05L
Main motor: AC motor, 1.5 kW power
Reducer: Base and frame constructed with low-carbon steel welding, equipped with forced lubrication circulation system
Rotor:
- Two-wing synchronous rotor structure
- Speed ratio of front and rear rotors: 1:1.20 or ST synchronous rotor
- Material: Quenched and tempered cast steel, hard chrome-plated surface
- Bearings: Tapered roller bearings with oil bath lubrication
- Rotor speed: 0–36 RPM (variable frequency speed control)
Wall panel: Steel structure, drilling for heating, inner surface hardened and plated with hard chromium treatment
Bracket: Steel structure, inner surface hardened and hard chrome-plated
Top bolt: Driven by air cylinder, surface plated with hard chromium
End face seal: Sealing ring material is high wear-resistant material, self-lubricating bearings, hinge spring pressure top seal
Feeding hopper: Manual operation
Control method: Manual or semi-automatic operation
Discharge device structure: Open-close type (mixing chamber can be fully disassembled)
Transmission structure: Main motor: 1.5KW AC
Air supply piping: Compressed air accessories (filter-regulator-lubricator combo, solenoid valve) and machine body piping
Dimensions & Weight: 580×780×780mm, approximately 120kg

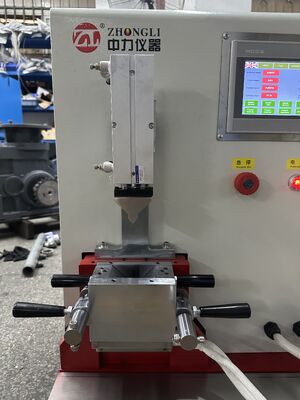

Product Image
