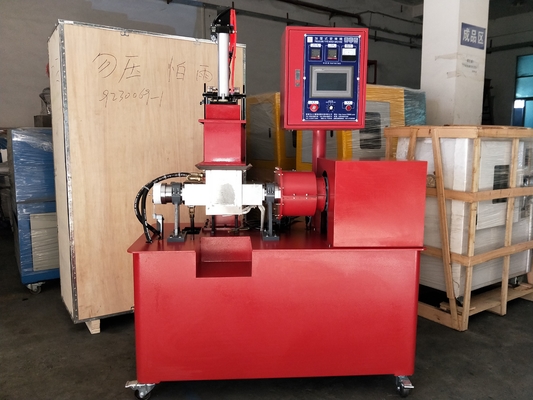

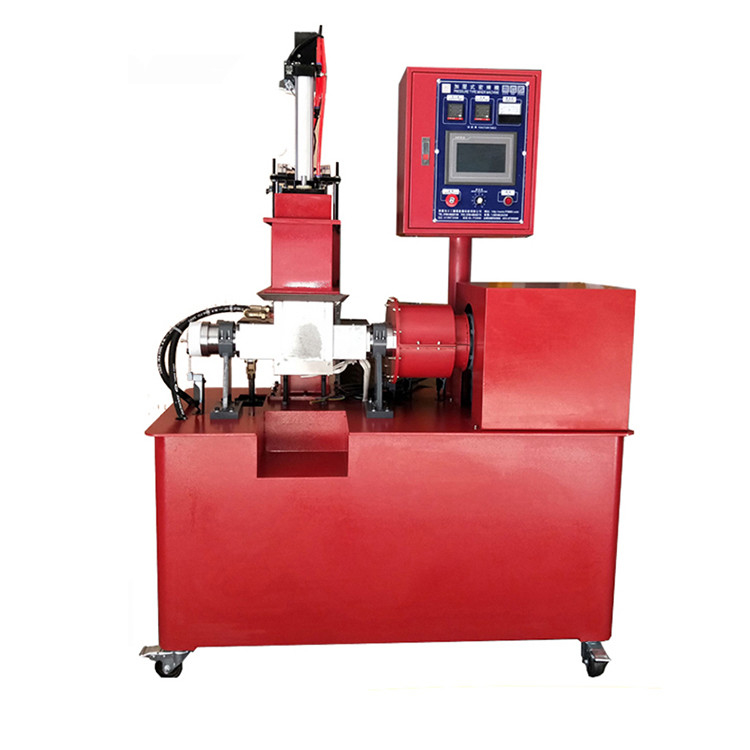

Lab Rubber Banbury Internal Mixer , 2.2KW Rubber Kneader Machine

Large Image : Lab Rubber Banbury Internal Mixer , 2.2KW Rubber Kneader Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3011

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Best Price Lab Rubber Banbury Internal Mixer Manufacturer Kneader Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Product Name:	Best Price Lab Rubber Banbury Internal Mixer Manufacturer Kneader Machine	Electric Heating:	1.2KW
Water Cooling:	0.2-0.4MPA	Drive Motor:	5.5KW
Air Compressor:	2.2KW	Key Words:	Electricity Heating, Water Cooling
Weight:	300kg	Remark:	Electricity Heating & Water Cooling ( Option)
Highlight:	Lab Banbury Internal Mixer , Rubber Banbury Internal Mixer , 2.2KW Rubber Kneader Machine

Lab Rubber Banbury Internal Mixer, 2.2KW Rubber Kneader Machine

Premium quality laboratory rubber Banbury internal mixer with advanced kneading technology for efficient rubber compound processing.

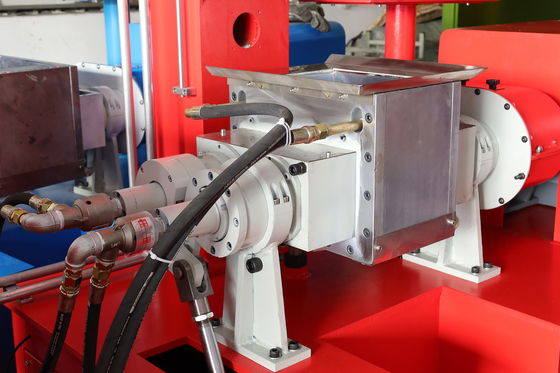

Rotor Structure and Configuration

The geometry and size of the rotor working surface significantly influence production capacity and mixing quality. Two primary rotor configurations are available:

Shear Rotor: High production efficiency with rapid reloading, quick mixing, and fast degluing capabilities
Meshing Rotor: Superior dispersion efficiency with low heat generation, ideal for hard rubber compounds and specialized mixing applications

Meshing rotor mixers provide enhanced dispersion and homogenization effects, reducing mixing time by 30-50% compared to shear rotor configurations.

Rotational Speed Optimization

Increasing rotor speed effectively strengthens the mixing process, reducing cycle time by 30-50% when speed is doubled. However, higher speeds generate additional heat, which may reduce compound viscosity and mechanical shear effects, potentially affecting dispersion quality.

Key Features of Dispersion Kneader

Automatic temperature and time control system for consistent 100% mixing results
Easy-to-clean chamber with simple color change capability
6-10 minutes per batch output, equivalent to 2 units of open mixing mills
Pressurized and sealed mixing chamber for high performance and environmental protection
Simple installation, operation, and maintenance for reduced running costs

Technical Specifications

MODEL	UNIT	ZL-3011-0.5	ZL-3011-1	ZL-3011-3	ZL-3011-5	ZL-3011-10	ZL-3011-15	ZL-3011-20
Volume	L	0.5	1	3	5	10	15	20
Drive motor	kw	1	2.2	5.5	7.5	15	22	30
Turning motor	kw	0.2	0.2	0.4	0.4	0.75	1	1.5
Turning angle		110	110	110	110	110	110	110
Air compressor	kw	2.2	2.2	2.2	2.2	5.5	5.5	5.5
Water cooling	mpa	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4
Electric heating	Kw	0.8	0.8	1.2	1.8	1.9	2.1	4
Weight	KG	500	800	1000	1200	2300	2800	4500

Note: Electric heating & Water cooling available as optional features

Product Documentation

Manufacturing Advantages

Dedicated R&D and design departments for standard and custom machine solutions
Over 50 years of manufacturing expertise with advanced machinery and skilled craftsmanship
Two specialized laboratories: Environmental testing and Physical properties analysis
Adequate monthly inventory to meet urgent customer requirements
Annual sales exceeding $1,000,000 with 30,000㎡ manufacturing facility and 120 technical staff

Technical Excellence

SUS stainless steel plates precision-cut with advanced laser technology for optimal accuracy. All machine exteriors feature anti-rust electrostatic painting. Premium imported components including ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron electronics and BOEK/TECUMSEH compressors ensure extended service life exceeding 10 years.
