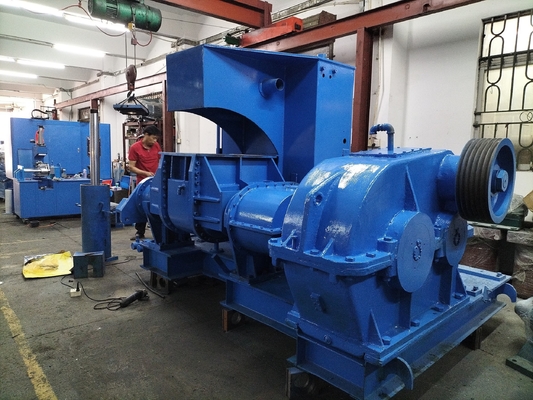

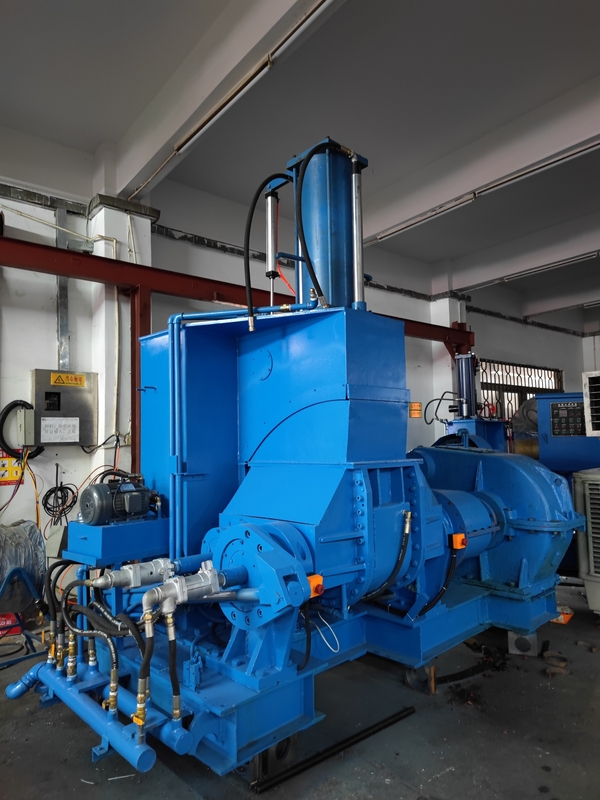

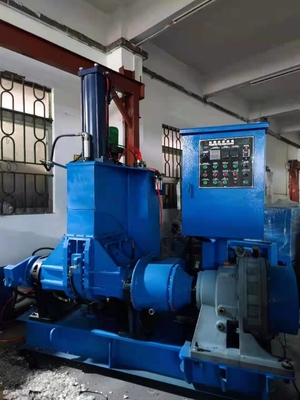

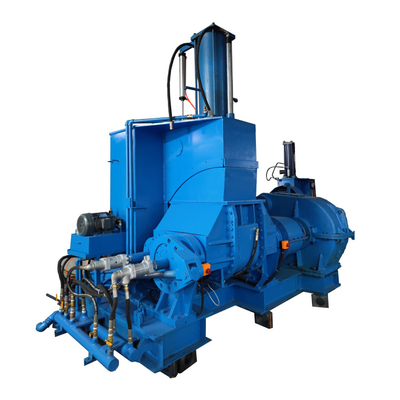

75 Liter Laboratory Banbury Internal Mixer , Plastic Mixer Rubber Dispersion Kneader

75 Liter Laboratory Banbury Internal Mixer , Plastic Mixer Rubber Dispersion Kneader
75 Liter Laboratory Banbury Internal Mixer , Plastic Mixer Rubber Dispersion Kneader
video play

Large Image :  75 Liter Laboratory Banbury Internal Mixer , Plastic Mixer Rubber Dispersion Kneader

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3011
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 75 Liter Laboratory Banbury Internal Mixer Machine Plastic Mixer Rubber Dispersion Kneader is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: 75 Liter Laboratory Banbury Internal Mixer Machine Plastic Mixer Rubber Dispersion Kneader Electric Heating: 1.2KW
Water Cooling: 0.2-0.4MPA Drive Motor: 5.5KW
Air Compressor: 2.2KW Key Words: Electricity Heating, Water Cooling
Weight: 300kg Remark: Electricity Heating & Water Cooling ( Option)
Highlight:

75 Liter Banbury Internal Mixer

,

Laboratory Banbury Internal Mixer

,

0.4MPA Rubber Dispersion Kneader

75 Liter Laboratory Banbury Internal Mixer
Plastic Mixer Rubber Dispersion Kneader for industrial laboratory applications
Equipment Overview
The rubber Banbury internal mixer is designed for plasticizing and mixing rubber compounds. This specialized equipment features a pair of rotors with specific shapes that rotate relatively, performing intermittent mastication and kneading of polymer materials within a sealed, temperature-controlled chamber with adjustable pressure.
Product Applications
Ideal for rubber, plastic, and chemical industries. Suitable for mixing EVA, rubber, TPR, sole materials, rubber rollers, hoses, belts, sponge materials, shockproof and heat insulation materials, elastic coding, sealing materials, tires, tape, masterbatch, pigments, inks, and electric rubber compounds.
Key Features
  • Automatic temperature and time control system for 100% mixing consistency
  • Easy-to-clean chamber with quick color change capability
  • High output efficiency: 6-10 minutes per batch equivalent to 2 open mixing mills
  • Pressurized and sealed mixing chamber for superior performance and environmental protection
  • Simple installation, operation, and maintenance with low running costs
Technical Specifications
MODEL UNIT ZL-3011-0.5 ZL-3011-1 ZL-3011-3 ZL-3011-5 ZL-3011-10 ZL-3011-15 ZL-3011-20
Volume L 0.5 1 3 5 10 15 20
Drive Motor kw 1 2.2 5.5 7.5 15 22 30
Turning Motor kw 0.2 0.2 0.4 0.4 0.75 1 1.5
Turning Angle 110 110 110 110 110 110 110
Air Compressor kw 2.2 2.2 2.2 2.2 5.5 5.5 5.5
Water Cooling mpa 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.3-0.4 0.3-0.4
Electric Heating Kw 0.8 0.8 1.2 1.8 1.9 2.1 4
Weight KG 500 800 1000 1200 2300 2800 4500
Note: Electric heating & Water cooling available as optional features
Product Documentation
Download Technical Brief: ZL-3011A Banbury mixer-kneader.pdf
75 Liter Laboratory Banbury Internal Mixer , Plastic Mixer Rubber Dispersion Kneader 0
Manufacturing Advantages
  • R&D and design department for standard and customized solutions
  • Over 50 years of manufacturing experience with advanced machinery
  • Two specialized laboratories: Environmental and Physical testing facilities
  • Adequate monthly stock availability for urgent customer requirements
  • Annual sales exceeding $1,000,000 with 30,000㎡ manufacturing base and 120 technical staff
Technical Excellence
  • SUS stainless plates cut with laser precision for accuracy
  • Anti-rust electrostatic painting on all machine exteriors
  • Premium imported components: ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
  • High-quality compressors: BOEK, TECUMSEH
  • Extended service life exceeding 10 years
