Customizable Laboratory Two Roll Mill Mixing Electric Heating Rubber And Plastic Mixer

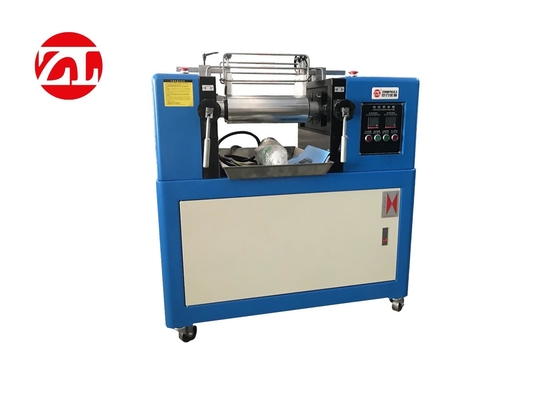

Large Image : Customizable Laboratory Two Roll Mill Mixing Electric Heating Rubber And Plastic Mixer

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Red (can Be Customized）
Highlight:	Customizable Two Roll Mixing Mill , CE Rubber Two Roll Mill , PVC Two Roll Mill

Customizable Laboratory Two Roll Mill Mixing Electric Heating Rubber And Plastic Mixer

This laboratory two roll mill mixer is specifically designed for polymer mixing applications in the rubber and plastics industry, including PVC and color master batch processing. The system features comprehensive components including rolls, bearings, gap adjusting devices, electric control systems, and safety mechanisms.

Technical Documentation

ZL-3018 Two Roll Mill Technical Specifications (PDF)

Shearing Mechanism & Performance

Shearing Effect Generation: The shearing effect is produced by the speed differential between front and rear rollers. Higher speed ratios generate greater shearing forces for improved material processing.

Roller Distance Impact: For fixed-speed machines, reducing roller distance increases velocity gradient, enhancing shearing effects on rubber compounds. This principle applies to thin-through plasticizing of raw rubber. While higher velocity gradients improve mixing efficiency—particularly for breaking and plasticizing—they also increase rubber material temperature, necessitating effective cooling systems.

Technical Specifications

Roll Hardness: HRC 50 ~ 60
Temperature Accuracy: ±2℃ (utilizing high-accuracy PID micro computer controller)
Heating Mode: Electric heating, Oil Heating (optional)
Cooling Mode: Water Cooling (optional)
Roll Temperature Range: Room temperature to 300℃
Safety Features: 6 safety buttons with optional safety guard
Power Requirements: 380V 3 phase 50-60Hz

Model	Roll Diameter (mm)	Roller Face Length (mm)	Mixing Capacity (kg)	Front Roll Speed (rpm)	Friction Ratio	Roll Gap Range (mm)	Driving Power (KW)	Machine Weight (kg)
ZL-3018-76	76	300	0.002-0.6	19	1:1.30	0-3	1	160
ZL-3018-120	120	350	0.002-2	19	1:1.35	0-6	1.5	460
ZL-3018-160	160	350	0.002-2.8	19	1:1.35	0-6	2.2	660
ZL-3018-200	200	500	0.002-5	19	1:1.35	0-8	7.5	860
ZL-3018-230	230	650	0.005-10	19	1:1.27	0-12	11	1960
ZL-3018-300	300	650	1-15	19	1:1.27	0-12	30	2960
ZL-3018-400	400	900	5-30	19	1:1.27	0-15	37	3800

Manufacturing Advantages

Comprehensive R&D and design departments capable of providing both standard technological machines and custom solutions
Over 50 years of manufacturing expertise with advanced machinery and sophisticated craftsmanship
Dual laboratory facilities: Environmental laboratory and Physical laboratory for comprehensive testing
Adequate monthly inventory to meet urgent customer requirements
Annual sales exceeding $1,000,000 with 30,000㎡ manufacturing base and 120 technical staff for large-scale projects

Technical Excellence

Precision laser-cut SUS stainless steel plates for optimal accuracy
Anti-rust electrostatic painting on all machine exteriors
Premium imported electronic components from ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
High-quality imported compressors from BOEK and TECUMSEH
Designed for extended service life exceeding 10 years
