Laboratory Scale 2 Roll Mill Equipment PE PP PVC EVA ABS Silicone Rubber Machine

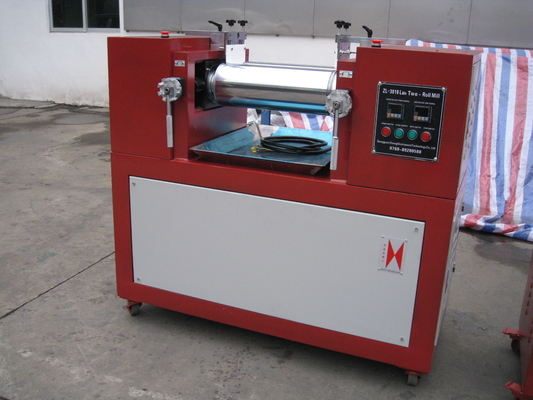

Large Image : Laboratory Scale 2 Roll Mill Equipment PE PP PVC EVA ABS Silicone Rubber Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018
Document:	ZL-3018A Rubber Plastic Two...ll.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Red (can Be Customized）
Highlight:	Laboratory 2 Roll Mill Machine , EVA 2 Roll Mill Machine , EVA Two Roll Mill

Laboratory Scale 2 Roll Mill Equipment

Professional PE, PP, PVC, EVA, ABS, and Silicone Rubber mixing machine for laboratory applications.

Applications

Widely used in rubber and plastics industry for polymer mixing applications including PVC and color master batch production. The equipment consists of rolls, bearings, gap adjusting device, electric control system, and safety devices.

Optimal Mixing Conditions

For optimal rubber mixing results on open mill equipment, the compound undergoes strong squeezing and shearing in the nip. The squeezing action occurs as material passes through gradually narrowing roller spacing, with squeezing force increasing proportionally with transverse pressure.

Technical Specifications

Roll Hardness	HRC 50 ~ 60
Temperature Accuracy	± 2 ℃ (High accuracy PID micro computer controller)

Model	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1	1.5	2.2	7.5	11	30	37
Machine weight (kg)	160	460	660	860	1960	2960	3800

Heating Mode: Electricity heating, Oil Heating (optional)

Cooling Mode: Water Cooling (optional)

Roll Temperature: Room temperature - 300℃

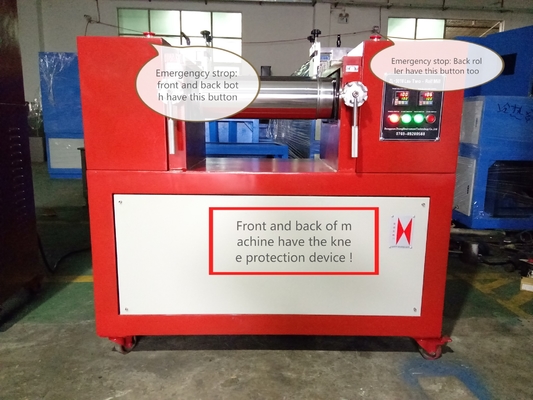

Safety device: 6 safety buttons with optional safety guard

Power: 380V 3 phase 50-60hz

Advantage Service

R&D and designing department for standard and customized machine solutions
Over 50 years manufacturing experience with advanced machinery and skilled craftsmanship
Two in-house laboratories: Environmental laboratory and Physical laboratory
Adequate monthly stock to meet urgent customer requirements
Annual sales exceeding 1,000,000 USD with 30,000㎡ manufacturing base and 120 technicians

Technical Support

SUS Stainless plate cut by advanced laser machines for precision accuracy
Anti-rust electrostatic painting on all machine exteriors
Premium imported components: ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
Imported compressors: BOEK, TECUMSEH
Designed for service life exceeding 10 years
