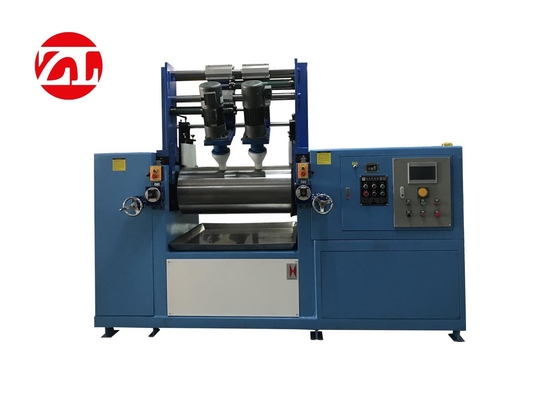

XK-450 Laboratory PVC Mixer Rubber Mill Rubber Open Mixing Mill Machine

Large Image : XK-450 Laboratory PVC Mixer Rubber Mill Rubber Open Mixing Mill Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Red (can Be Customized）
Highlight:	Laboratory PVC Open Mixing Mill , 350mm Open Mixing Mill , PVC Open Mixing Two Roll Mill

XK-450 Laboratory PVC Mixer Rubber Mill Rubber Open Mixing Mill Machine

Application

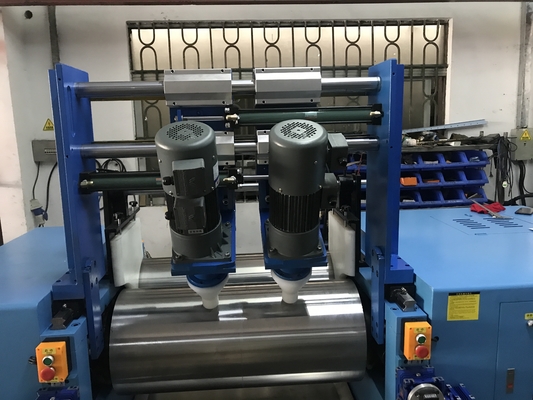

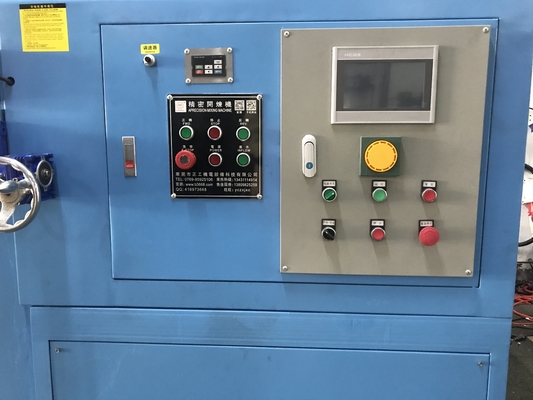

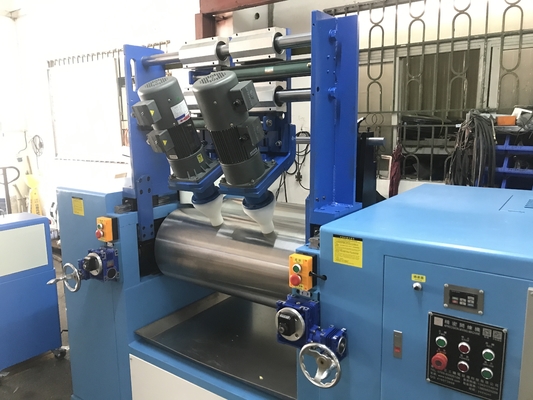

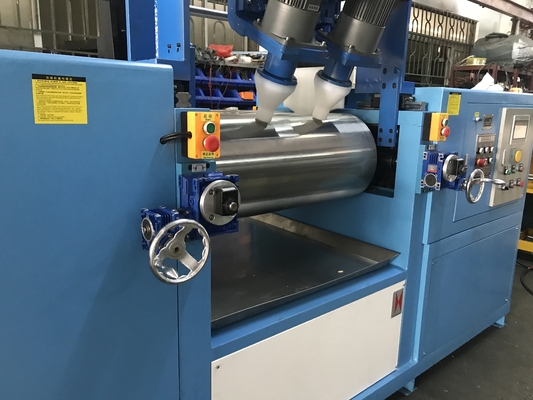

This machine is widely used in the rubber and plastics industry for polymer mixing applications including PVC and color master batch processing. The system consists of rolls, bearings, gap adjusting devices, electric control systems, and safety features.

Rubber Mixing Process

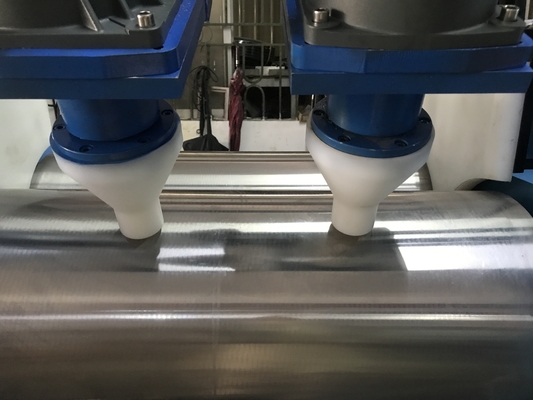

In the rubber mixing process, the open mill utilizes two counter-rotating rollers to extrude and shear rubber compounds. This action breaks molecular chains, ensuring uniform blending of all formula ingredients to achieve optimal mixing results. The film discharged from the roller gap wraps around one roller due to differences in surface speed and temperature between the two rollers, then returns through the rollers repeatedly to complete the mixing cycle.

During plasticizing, rubber molecular chains are shortened while elasticity is reduced. During mixing, each component surface is continuously renewed and uniformly blended. On intermittently operated open mills, rubber material passes through the rollers multiple times after feeding before final sheet cutting.

Technical Specifications

General Parameters

Roll Hardness: HRC 50-60

Temperature Accuracy: ±2℃ (utilizing high-accuracy PID micro computer controller)

Power Requirements: 380V 3 phase 50-60Hz

Heating Mode: Electricity heating, Oil Heating (optional)

Cooling Mode: Water Cooling (optional)

Roll Temperature Range: Room temperature - 300℃

Safety Features: 6 safety buttons with optional safety guard

Model Specifications

Parameter	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1	1.5	2.2	7.5	11	30	37
Machine weight (kg)	160	460	660	860	1960	2960	3800
Overall dimension (mm)	1100x400x1180	1100x550x1380	1200x650x1380	2200x750x1380	2200x950x1580	2600x950x1580	5295x1789x170

Advantage Services

Comprehensive R&D and design department capable of providing standard technological machines and custom solutions
Over 50 years of manufacturing experience with advanced machinery and sophisticated craftsmanship
Two specialized laboratories: Environmental laboratory and Physical laboratory for quality assurance
Adequate monthly stock availability to meet urgent customer requirements
Annual sales exceeding 1,000,000 USD with 30,000㎡ manufacturing base and 120 technical staff for large-scale projects

Technical Support Features

SUS stainless plates cut with advanced laser machinery for precision accuracy
Anti-rust electrostatic painting on all machine exteriors
Premium imported electronic components from ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
High-quality imported compressors from BOEK and TECUMSEH
Designed for extended service life exceeding 10 years
