Lab PVC EVA Rubber Mix Mill Plastic Material Two Roll Open Mixing Mill Equipment

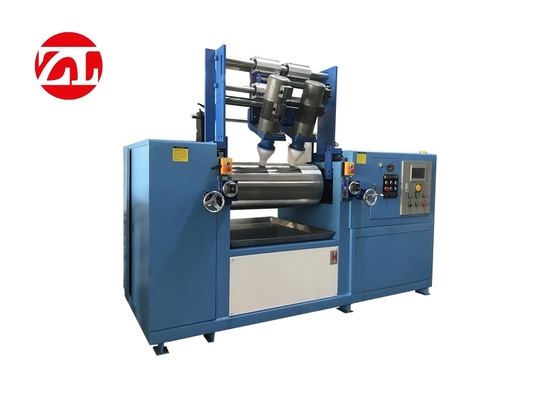

Large Image : Lab PVC EVA Rubber Mix Mill Plastic Material Two Roll Open Mixing Mill Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Blue (can Be Customized）
Highlight:	Lab PVC Open Mixing Mill , EVA Open Mixing Mill , EVA Rubber Two Roll Mill

Lab PVC EVA Rubber Mix Mill - Two Roll Open Mixing Mill Equipment

Professional laboratory mixing mill designed for polymer processing in rubber and plastics industries, ideal for materials including PVC and color master batch.

Applications

Widely used in rubber and plastics industry for polymer mixing applications including PVC processing and color master batch production.

Technical Documentation

Equipment Operation

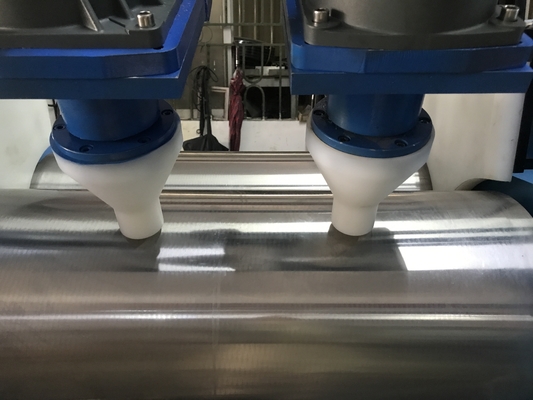

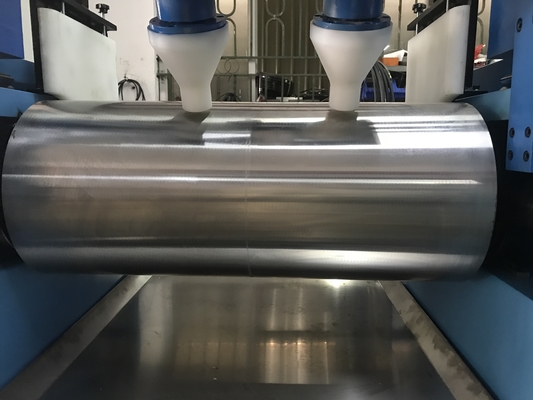

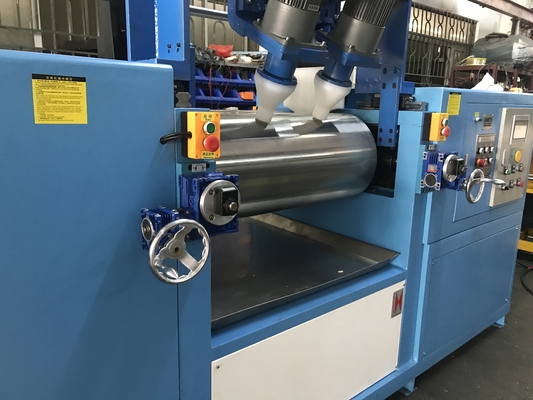

The two-roll mill features rotating drums where prepared samples are poured along the grooves. Adjustable baffles on both sides allow for precise control. Built-in safety mechanisms include emergency reverse rotation capability activated by safety door panels to ensure operator protection during operation.

Technical Specifications

Parameter	Specification
Roll Hardness	HRC 50 ~ 60
Temperature Accuracy	± 2 ℃ (High accuracy PID micro computer controller)
Heating Mode	Electricity heating, Oil Heating (optional)
Cooling Mode	Water Cooling (optional)
Roll Temperature Range	Room temperature - 300℃
Safety Features	6 safety buttons, optional safety guard
Power Requirements	380V 3 phase 50-60Hz

Model Specifications

Model	Roll Diameter (mm)	Roller Face Length (mm)	Mixing Capacity (kg)	Front Roll Speed (rpm)	Friction Ratio	Roll Gap Range (mm)	Driving Power (KW)	Machine Weight (kg)
ZL-3018-76	76	300	0.002-0.6	19	1:1.30	0-3	1	160
ZL-3018-120	120	350	0.002-2	19	1:1.35	0-6	1.5	460
ZL-3018-160	160	350	0.002-2.8	19	1:1.35	0-6	2.2	660
ZL-3018-200	200	500	0.002-5	19	1:1.35	0-8	7.5	860
ZL-3018-230	230	650	0.005-10	19	1:1.27	0-12	11	1960
ZL-3018-300	300	650	1-15	19	1:1.27	0-12	30	2960
ZL-3018-400	400	900	5-30	19	1:1.27	0-15	37	3800

Company Advantages

R&D and design department for standard and custom machine solutions
Over 50 years manufacturing experience with advanced machinery and craftsmanship
Two specialized laboratories: Environmental and Physical testing facilities
Adequate monthly stock availability for urgent customer requirements
Annual sales exceeding $1,000,000 USD with 30,000㎡ manufacturing base
120 technical staff capable of handling large budget projects

Technical Quality Assurance

SUS stainless plate cutting with advanced laser machines for precision
Anti-rust electrostatic painting on all machine exteriors
Premium imported electronic components (ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron)
High-quality imported compressors (BOEK, TECUMSEH)
Designed for extended service life exceeding 10 years
