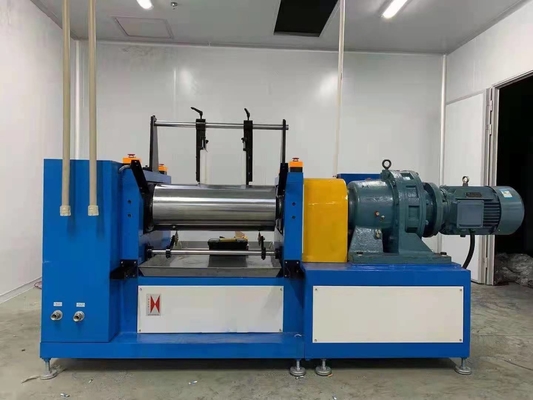

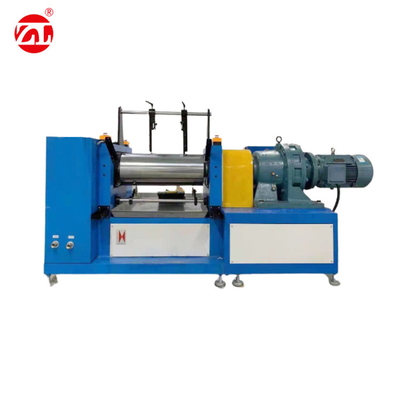

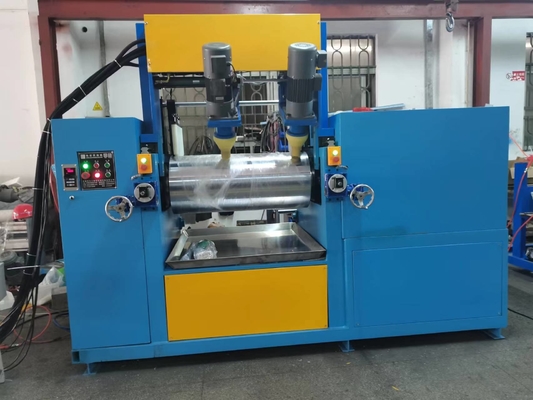

XK-450 Laboratory Rubber Open Mixing Mill Machine PVC Mixer Plastic Two Roll Mill

XK-450 Laboratory Rubber Open Mixing Mill Machine PVC Mixer Plastic Two Roll Mill
XK-450 Laboratory Rubber Open Mixing Mill Machine PVC Mixer Plastic Two Roll Mill
video play

Large Image :  XK-450 Laboratory Rubber Open Mixing Mill Machine PVC Mixer Plastic Two Roll Mill

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3018
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: XK-450 Laboratory Rubber Open Mixing Mill Machine PVC Mixer Plastic Two Roll Mill is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Length Of Roller Face: 350mm Mixing Capacity: 0.002-2.8kg
Roll Hardness: HRC 50 ~ 60 Safety Device: It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy: ± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller) Power: 380V 3 Phase 50-60hz
Driving Power: 1kw Color: Blue (can Be Customized)
High Light:

350mm Plastic Open Mixing Mill

,

Laboratory Rubber Open Mixing Mill

,

Microcomputer Controller Two Roll Mill

XK-450 Laboratory Rubber Open Mixing Mill Machine PVC Mixer Plastic Two Roll Mill





Application:



It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.

ZL-3018 Two roll mill.pdf



Introduction:



Abbreviation for open rubber mixer. A rubber mixing machine with exposed rollers used in rubber factories to prepare masticated rubber, mixed rubber, or heat-mixed and molded.



Technical parameters:




Roll Hardness HRC 50 ~ 60
Temperature Accuracy ± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Model   ZL-3018-76 ZL-3018-120 Zl-3018-160 ZL-3018-200 Zl-3018-230 Zl-3018-300 ZL-3018-400
Diameter of roll mm 76 120 160 200 230 300 400
Length of roller face mm 300 350 350 500 650 650 900
Mixing Capacity kg 0.002-0.6 0.002-2 0.002-2.8 0.002-5 0.005-10 1-15 5-30
Front roll surface speed rpm 19 19 19 19 19 19 19
Friction ratio   1:1.30 1:1.35 1:1.35 1:1.35 1:1.27 1:1.27 1:1.27
Roll gap range mm 0-3 0-6 0-6 0-8 0-12 0-12 0-15
Driving Power KW 1 1.5 2.2 7.5 11 30 37
Heating Mode Electricity heating , Oil Heating ( option)
Cooling Mode Water Cooling ( option)
Roll Temperature Room temperature -- 300
Safety device It have 6 safety buttons and safety guard is option
Machine weight kg 160 460 660 860 1960 2960 3800
Overall dimension mm 1100x400x1180 1100x550x1380 1200x650x1380 2200x750x1380 2200x950x1580 2600x950x1580

5295x1789

x170

Power 380V 3 phase 50-60hz



XK-450 Laboratory Rubber Open Mixing Mill Machine PVC Mixer Plastic Two Roll Mill 0





Advantage Service:



1. We have R&D, designing department which can not only provide technological machines but also can satisfy special customized needs of our clients.

2. Over 50 years’ manufacturing experience, advanced machine and sophisticated handcraft.

3. There are TWO laboratories in our factory: Environmental laboratory and Physical laboratory.

4. Our factory have adequate stock monthly, which can meet customers’ urgent needs.

5. Annual sales over 1,000,000USD; 30,000㎡manufacturing base, equipped with 120 technicians, we are capable to take large budget project.



Technical Support:



1. SUS Stainless plate is cut by advanced leaser machine which can ensure accuracy; All machine appearance is anti-rust electrostatic painting;

2. Imported electronic components: ABB/Siemens/Panasonic/Saginomiya/Danfoss/Emkarate/Omron/Philips and imported compressor:BOEK/TECUMSEH, which can keep the machine’s service life over 10 years.
