High Technology Two Roll Mill Mixing Testing Machine Plastic Bearing Type

Large Image : High Technology Two Roll Mill Mixing Testing Machine Plastic Bearing Type

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Blue (can Be Customized）
Highlight:	60hz Two Roll Mill , Plastic Bearing Two Roll Mill , Plastic Bearing Two Roll Mixing Mill

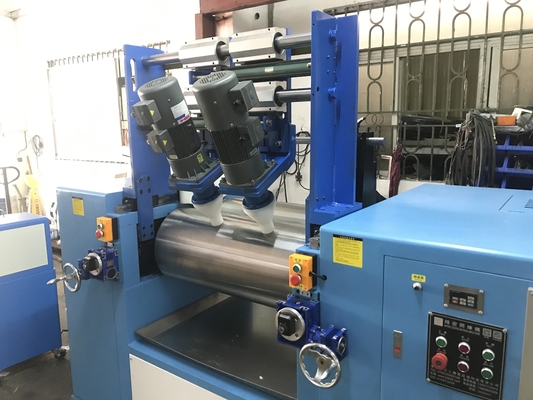

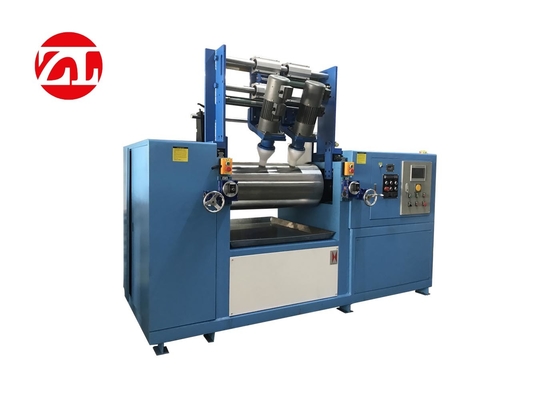

High Technology Two Roll Mill Mixing Testing Machine Plastic Bearing Type

This advanced two roll mill mixing testing machine with plastic bearing type is engineered for precision polymer mixing applications in the rubber and plastics industry.

Applications

Widely used for polymer mixing including PVC and color master batch applications. The machine comprises essential components including rolls, bearings, gap adjusting device, electric control system, and comprehensive safety features.

Technical Features

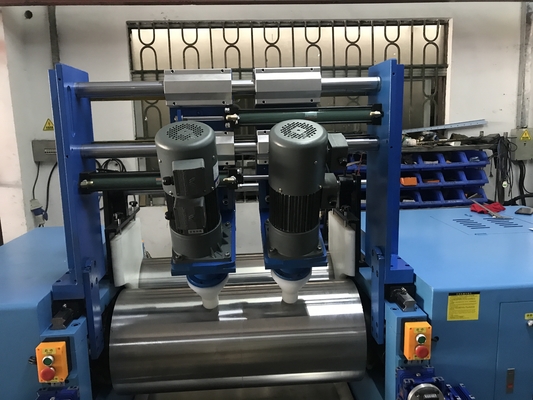

Hard-tooth surface reducer transmission for stable operation and reduced noise
Self-aligning roller bearings with MC nylon transmission structure
Overload protection with adjustable distance and hydraulic pressure indication

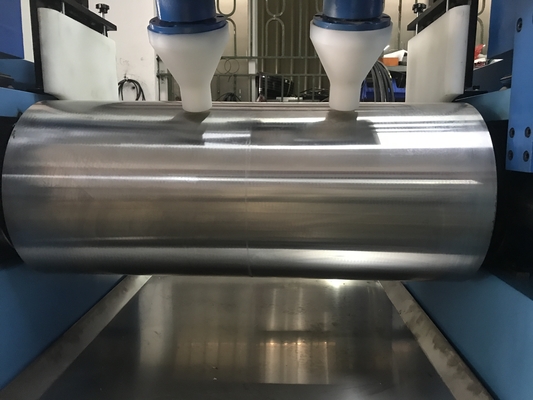

Circumferential drilling on drums for enhanced temperature control
Rubber vibration pads for simplified installation without anchor bolts
Electrical braking system for improved braking effectiveness

Technical Parameters

Parameter	Specification
Roll Hardness	HRC 50 ~ 60
Temperature Accuracy	± 2 ℃ (High accuracy PID micro computer controller)
Heating Mode	Electricity heating, Oil Heating (optional)
Cooling Mode	Water Cooling (optional)
Roll Temperature Range	Room temperature - 300℃
Safety Features	6 safety buttons with optional safety guard
Power Requirements	380V 3 phase 50-60Hz

Model Specifications

Model	Roll Diameter (mm)	Roller Face Length (mm)	Mixing Capacity (kg)	Front Roll Speed (rpm)	Friction Ratio	Roll Gap (mm)	Power (KW)	Weight (kg)
ZL-3018-76	76	300	0.002-0.6	19	1:1.30	0-3	1	160
ZL-3018-120	120	350	0.002-2	19	1:1.35	0-6	1.5	460
ZL-3018-160	160	350	0.002-2.8	19	1:1.35	0-6	2.2	660
ZL-3018-200	200	500	0.002-5	19	1:1.35	0-8	7.5	860
ZL-3018-230	230	650	0.005-10	19	1:1.27	0-12	11	1960
ZL-3018-300	300	650	1-15	19	1:1.27	0-12	30	2960
ZL-3018-400	400	900	5-30	19	1:1.27	0-15	37	3800

Manufacturing Advantages

Comprehensive R&D and design department for standard and custom solutions
Over 50 years of manufacturing expertise with advanced machinery
Dual laboratory facilities: Environmental and Physical testing
Adequate monthly stock availability for urgent customer requirements
Annual sales exceeding $1,000,000 with 30,000㎡ manufacturing base
120 technical professionals capable of handling large-scale projects

Technical Excellence

Laser-cut SUS stainless plates for precision manufacturing
Anti-rust electrostatic painting on all machine surfaces
Premium imported electronic components from ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
High-quality imported compressors from BOEK and TECUMSEH
Designed for extended service life exceeding 10 years
