Custom PVC Calendering Machine Two Roll Rubber Mixing Mill Processing Machinery

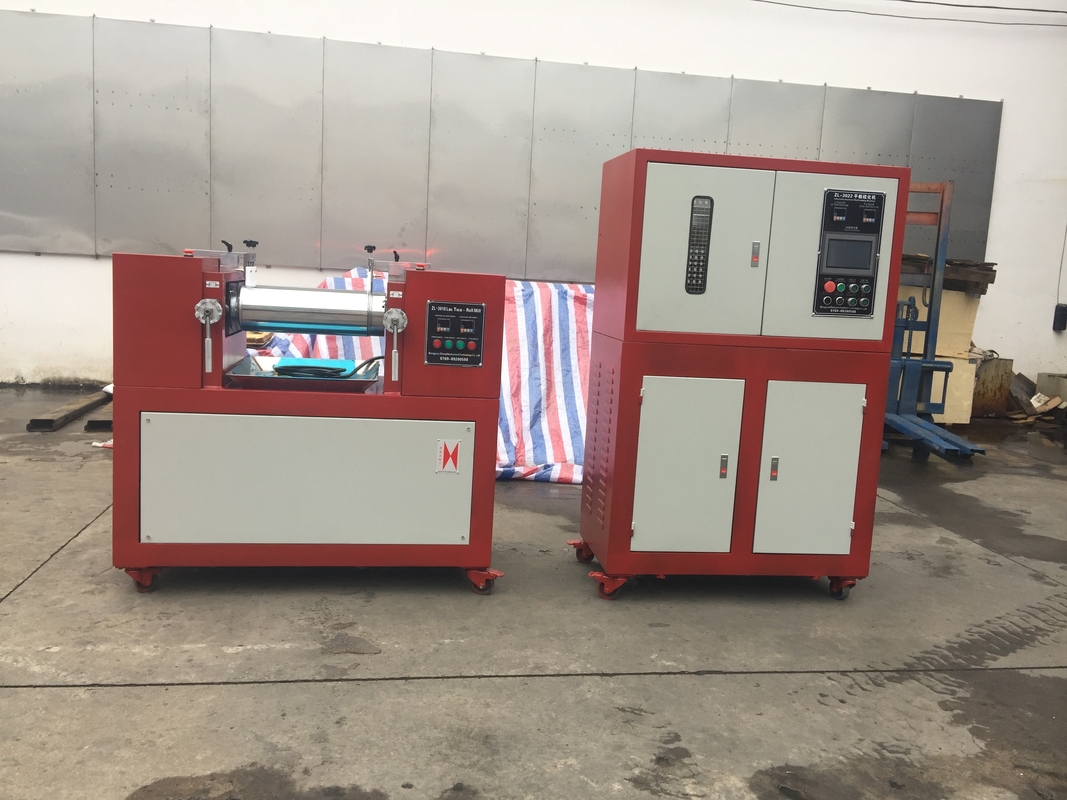

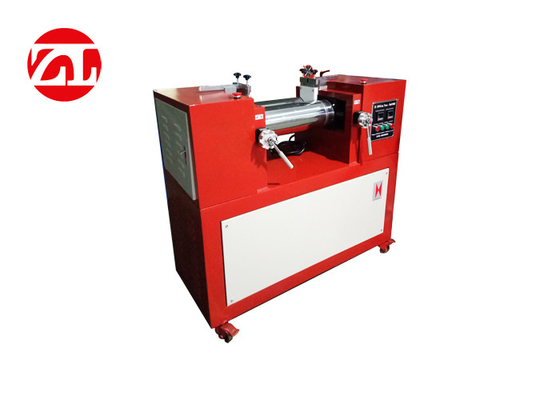

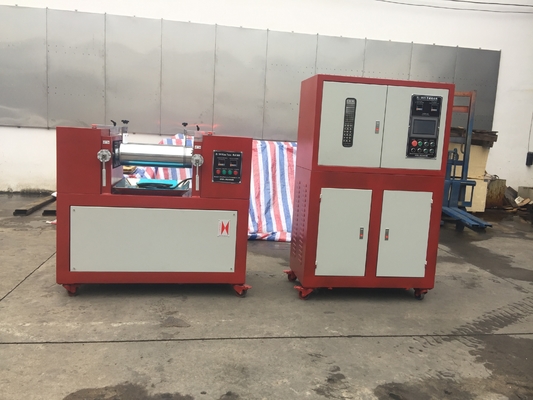

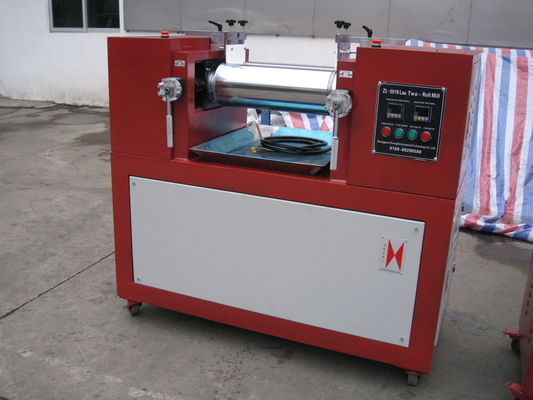

Large Image : Custom PVC Calendering Machine Two Roll Rubber Mixing Mill Processing Machinery

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Red (can Be Customized）
Highlight:	PVC Calendering Rubber Mixing Mill , Two Roll Rubber Mixing Mill , PVC Calendering Two Roll Mill

Custom PVC Calendering Machine Two Roll Rubber Mixing Mill

This advanced processing machinery is specifically designed for polymer mixing applications in the rubber and plastics industry, including PVC and color master batch production.

Applications

Widely used in rubber and plastics industry for polymer mixing applications including PVC and color master batch processing.

Technical Documentation

ZL-3018 Two Roll Mill Technical Specifications (PDF)

Machine Overview

The system features two hollow rollers or drilling rollers rotating in opposite directions. The front roller (operator side) can be moved horizontally via manual or electric control to adjust roller distance, while the rear roller remains fixed. Both rollers typically share identical dimensions but operate at different relative speeds to create strong shearing action for effective plasticizing or mixing. This open mill design is also applicable for various plastics processing applications.

Technical Specifications

Roll Hardness	HRC 50 ~ 60
Temperature Accuracy	± 2 ℃ (High accuracy PID micro computer controller)
Power Requirements	380V 3 phase 50-60hz
Heating Mode	Electricity heating, Oil Heating (optional)
Cooling Mode	Water Cooling (optional)
Roll Temperature Range	Room temperature - 300℃

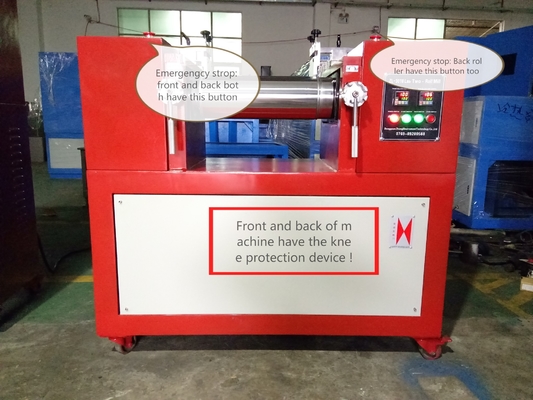

Safety Features	6 safety buttons with optional safety guard

Model Specifications

Model	Roll Diameter (mm)	Roller Face Length (mm)	Mixing Capacity (kg)	Front Roll Speed (rpm)	Friction Ratio	Roll Gap Range (mm)	Driving Power (KW)	Machine Weight (kg)
ZL-3018-76	76	300	0.002-0.6	19	1:1.30	0-3	1	160
ZL-3018-120	120	350	0.002-2	19	1:1.35	0-6	1.5	460
ZL-3018-160	160	350	0.002-2.8	19	1:1.35	0-6	2.2	660
ZL-3018-200	200	500	0.002-5	19	1:1.35	0-8	7.5	860
ZL-3018-230	230	650	0.005-10	19	1:1.27	0-12	11	1960
ZL-3018-300	300	650	1-15	19	1:1.27	0-12	30	2960
ZL-3018-400	400	900	5-30	19	1:1.27	0-15	37	3800

Manufacturing Advantages

Comprehensive R&D and design department for standard and custom machine solutions
Over 50 years of manufacturing expertise with advanced machinery and skilled craftsmanship
Dual laboratory facilities: Environmental laboratory and Physical laboratory
Adequate monthly stock availability to meet urgent customer requirements
Annual sales exceeding $1,000,000 with 30,000㎡ manufacturing base and 120 technical staff

Technical Excellence

SUS Stainless plate precision cutting using advanced laser technology for accuracy
Anti-rust electrostatic painting on all machine exteriors
Premium imported components: ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
High-quality imported compressors: BOEK, TECUMSEH
Designed for extended service life exceeding 10 years
