Lab PVC EVA Two Roll Rubber Mixing Mill Plastic Material Calender Equipment

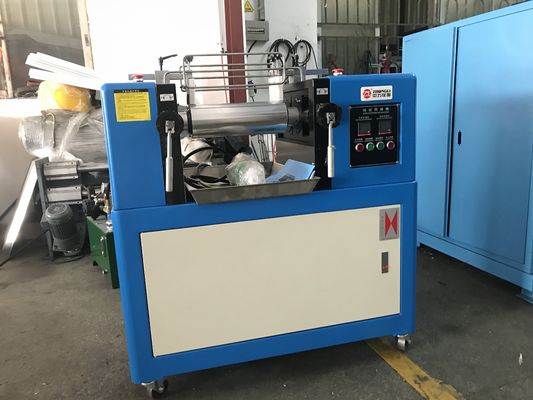

Large Image : Lab PVC EVA Two Roll Rubber Mixing Mill Plastic Material Calender Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Blue(can Be Customized）
Highlight:	PVC Rubber Mixing Mill , EVA Rubber Mixing Mill , Calender Two Roll Mill

Lab PVC EVA Two Roll Rubber Mixing Mill Plastic Material Calender Equipment

This laboratory-grade two-roll mixing mill is designed for polymer mixing applications in the rubber and plastics industry, including PVC and color master batch processing. The equipment features precision rolls, bearings, gap adjustment systems, electric controls, and comprehensive safety devices.

Applications

Widely used in rubber and plastics industries for polymer mixing processes including PVC processing, color master batch production, and various material calendering operations.

Equipment Overview

The open mill (commonly known as a two-roll machine) is essential in plastic product manufacturing. It serves critical functions in calender production lines by kneading and plasticizing mixed raw materials to create uniform molten material for calendering processes. The equipment can directly process powdered materials into molten sheets for pelletizing or provide mixed plasticized coatings for various industrial applications.

Technical Documentation

ZL-3018 Two Roll Mill Technical Specifications (PDF)

Technical Parameters

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Model	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1	1.5	2.2	7.5	11	30	37
Machine weight (kg)	160	460	660	860	1960	2960	3800
Overall dimension (mm)	1100x400x1180	1100x550x1380	1200x650x1380	2200x750x1380	2200x950x1580	2600x950x1580	5295x1789x170

General Specifications

Heating Mode: Electricity heating, Oil Heating (optional)
Cooling Mode: Water Cooling (optional)
Roll Temperature Range: Room temperature - 300\u2103
Roll Hardness: HRC 50-60
Temperature Accuracy: \u00b12\u2103 (high accuracy PID micro computer controller)
Safety Features: 6 safety buttons with optional safety guard
Power Requirements: 380V 3 phase 50-60Hz

Company Advantages

Comprehensive R&D and design department for standard and custom solutions
Over 50 years of manufacturing experience with advanced machinery and craftsmanship
Two specialized laboratories: Environmental and Physical testing facilities
Adequate monthly stock availability for urgent customer requirements
Annual sales exceeding ,000,000 with 30,000\u33a1 manufacturing base and 120 technical staff

Technical Excellence

Advanced laser-cut SUS stainless plates for precision manufacturing
Anti-rust electrostatic painting on all machine surfaces
Premium imported components: ABB, industrial automation, high-performance, Saginomiya, Danfoss, Emkarate, Omron
High-quality imported compressors: BOEK, TECUMSEH
Designed for extended service life exceeding 10 years
