GB / T4074 Digital LCD Screen Static Friction Tester with 32 Bit ARM Control and High Sensitivity

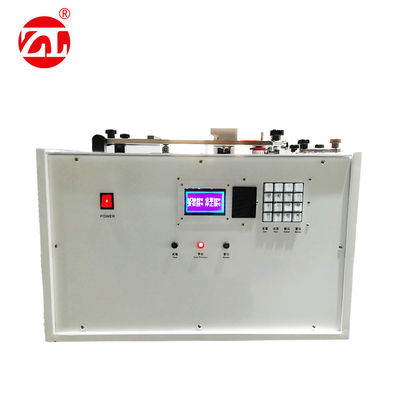

Large Image : GB / T4074 Digital LCD Screen Static Friction Tester with 32 Bit ARM Control and High Sensitivity

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2714

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	GB / T4074 Digital LCD Screen Static Friction Tester With 32 Bit ARM Control is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	GB / T4074 Digital LCD Screen Static Friction Tester With 32 Bit ARM Control	Wearing Strip Incline Speed:	1±0.2°/s
Display Error Of Tgα:	<0.005	Input Power Supply:	AC220V±10% 50Hz
Consumed Power:	≤80W	Dimension:	L×W×H 670×380×550mm
Weight:	37Kg	Standard:	Executive Standard: GB / T4074.3-2008. Inspection Standard: GB / T4279.16-2008
Highlight:	cable testing device , cable harness tester

GB / T4074 Digital LCD Screen Static Friction Tester With 32 Bit ARM Control

Product Overview

The GB/T4074 Digital LCD Screen Static Friction Tester features advanced 32-bit ARM control technology, designed for precise measurement of static friction in enameled round wires.

Executive standard: GB/T4074.3-2008
Inspection standard: GB/T4279.16-2008
Applies to enameled round wires with conductor nominal diameter from 0.050mm to 1.600mm
32-bit ARM control system for enhanced precision
High sensitivity and excellent repeatability
Digital LCD screen displays testing steps and results
Digital circuit control for reliable operation
Automatic data transfer to computer with MPS6 enameled wire quality data management system

Technical Specifications

Parameter	Specification
Wearing Strip Incline Speed	1±0.2°/s
Display Error of tgα	<0.005
Input Power Supply	AC220V±10% 50Hz
Consumed Power	≤80W
Dimension	L×W×H 670×380×550mm
Weight	37Kg

Product Image
