IEC60851-3 Cable Testing Machine Flat Wire Springback Flexibility 30° Bending Angle Tester

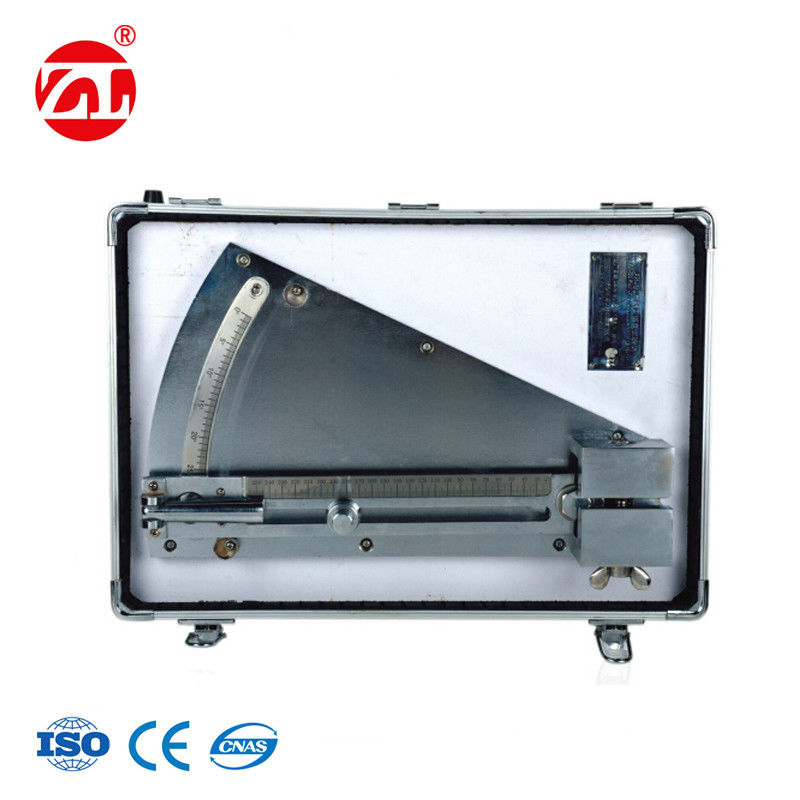

Large Image : IEC60851-3 Cable Testing Machine Flat Wire Springback Flexibility 30° Bending Angle Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2725

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC60851-3 FR-30 Flat Wire Springback (Flexibility) 30° Bending Angle Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	IEC60851-3 FR-30 Flat Wire Springback (Flexibility) 30° Bending Angle Tester	Bending Angle Of Sample:	＞30°
Minimum Resolution Of Sector Scale:	0.2°	Adjustable Range Of Moving Contact:	28-250mm
Dimension:	L×W×H 500×340×145mm	Weight:	18Kg
Highlight:	cable testing device , cable flex tester

IEC60851-3 Cable Testing Machine Flat Wire Springback Flexibility 30° Bending Angle Tester

Product Overview

The IEC60851-3 FR-30 Flat Wire Springback (Flexibility) 30° Bending Angle Tester is designed for precise measurement of springback characteristics in enameled flat and round wires, ensuring compliance with international standards for cable flexibility testing.

Implementation Standard: IEC60851-3

Application Range

This testing machine is applied to enameled flat wire with cross-section heights from 0.800mm to 5.600mm and enameled round wire with nominal diameters from 1.600mm to 5.600mm.

Technical Specifications

Parameter	Specification
Bending Angle of Sample	>30°
Minimum Resolution of Sector Scale	0.2°
Adjustable Range of Moving Contact	28-250mm
Dimensions (L×W×H)	500×340×145mm
Weight	18Kg

Product Image

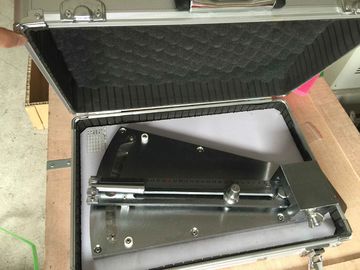

IEC60851-3 FR-30 Flat Wire Springback Flexibility 30° Bending Angle Tester equipment
