Rubber and Edge Separating Machine Automatic Rubber Deflashing Machine Rubber O Ring Burr Demolishing Machine

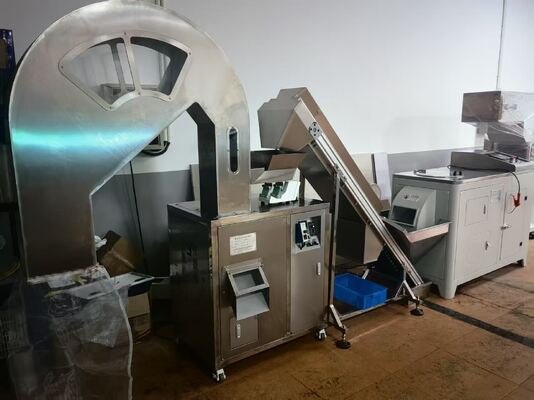

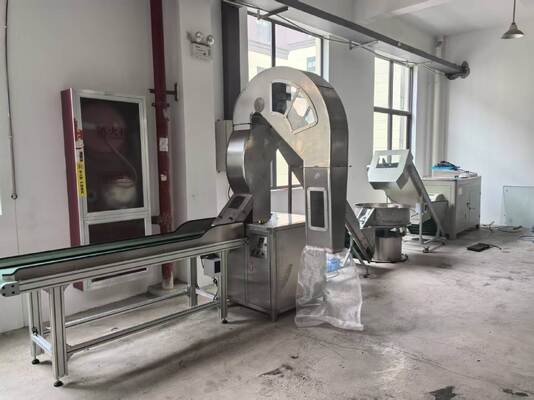

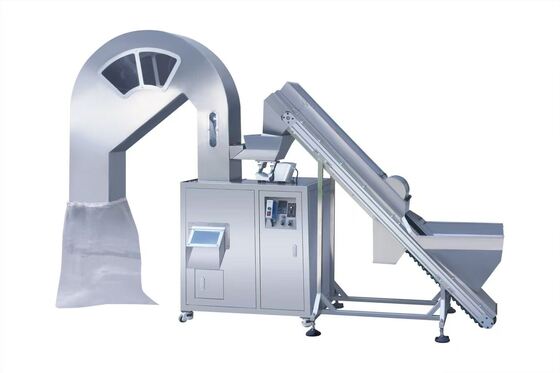

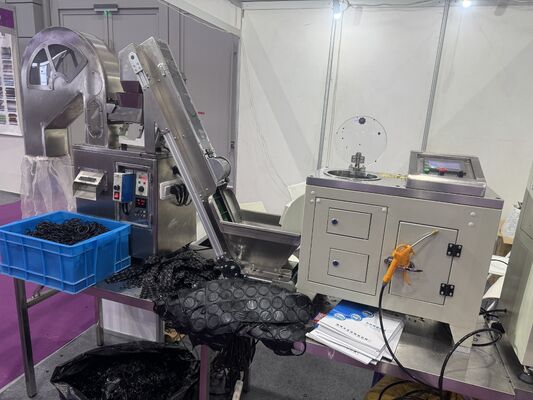

Large Image : Rubber and Edge Separating Machine Automatic Rubber Deflashing Machine Rubber O Ring Burr Demolishing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3072B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS2000-4000
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Integrated Rubber Deflashing And Air Separation Machine	Frame:	Laser Sheet Metal
Frame Exterior Panels:	Sheet Metal Bending	Working Chamber:	304 Stainless Steel Cold-pressed Forming, External Water Cooling System, Inner Diameter 600mm
Capacity:	Model 400 Deflashing Machine — 5 Kg	Dimensions:	Length 1500 + 420mm, Width 820mm, Height 1060 + 155mm
Highlight:	automatic rubber deflashing machine , rubber O ring burr demolishing machine , edge separating machine with warranty

Rubber and Edge Separating Machine Automatic Rubber Deflashing Machine

High-performance automatic deflashing and separation equipment for rubber and silicone products, featuring advanced cooling systems and intelligent controls.

Main Specifications

Self-priming water cooling system for working chamber and bearing housing
Built-in braking function for immediate cycle completion
Rapid automatic deflashing for rubber and silicone products
Intelligent switch control with Schneider, Omron, and Inovance components
Seamless sheet metal welding technology main frame
Variable frequency speed control with intelligent operation
Automatic lubrication and dust extraction systems
Power supply: 3-phase 4-wire 380V, 50Hz

Main Features

Working chamber diameter: 400mm, integrally formed by deep drawing
Built-in soundproof cotton for low noise operation
Strong negative pressure dust extraction with excellent separation
Comprehensive parameter design system
Working chamber made entirely of stainless steel 304
Dimensions: Length 1920mm, Width 820mm, Height 1215mm
Capacity: Model 400 deflashing machine — 5 kg

Configuration Details

Item	Brand	Specifications
Deflashing Machine Frame	—	CNC seamless sheet metal welding
PLC Main Unit	Xinje	DVP24ECR3, 24-point main unit, 12DI/12DO (relay), RS-232/RS-485
Frequency Converter	Inovance	MS300, 5.5kW heavy-duty rated output current 6A, normal load rated current 10.5A, built-in PLC
Switching Power Supply	Omron	Over-current and over-voltage protection, conversion efficiency above 85%, long service life
7-inch Touch Screen	Weinview	7-inch true color TFT, resolution 800*480, 65,536 colors, multiple COM ports
Motor	Shanghai Dedong	YT112M-2, 11kW, 50Hz
Cylinder	SNS	SNS32*350
Solenoid Valve	SNS	4V210-08-24V
Belt	Gates (USA)	With built-in cooling
Working Chamber	Self-developed	304 stainless steel cold-pressed forming, external water cooling system, inner diameter 600mm
Dust Collection System	High-power vacuum fan 750W/220V	Independently developed by Zhongli
Bearing	SKF6307C3	Service life over 6 months, max speed 8000 r/min

Air Separation Machine Functions

High-performance air blowing separation device for separating rubber products with different flash specific gravities. Features linear vibration conveying for uniform product flow and frequency-controlled air force adjustment based on product weight.

Rapid air blowing separation for rubber and silicone products
Intelligent switch control with Schneider electrical components and Omron frequency converter
Seamless sheet metal welding technology main frame
Variable frequency speed control with intelligent operation
Power supply: 50Hz, 220V

Main Components - Air Separation Machine

Content	Main Details	Material	Origin	Remarks
BASIC EQUIPMENT	Equipment dimensions	L3100mm * W700mm * H2100mm
Working Voltage	2-phase 220V, 2.2kW
Frame	Laser sheet metal	304 stainless steel	Zhongli	Laser seamless welding
Frame Exterior Panels	Sheet metal bending	304 stainless steel	Zhongli	Hydraulic bending
Feeding System	Conical storage chamber	304 stainless steel	China	TIG welding technology
Linear vibrator	0.75kW		China
Brush motor	16 N·m		China	Gear reduction motor
Air Duct System	Medium-pressure fan		China	Multi-blade impeller, 2.2kW
Product separation duct	Square type with observation window	304 stainless steel	Zhongli	Laser TIG welding
Waste separation duct	Half-moon type with observation and diversion window	304 stainless steel	Zhongli	Laser TIG welding
Waste collection bag	Mesh bag	Reinforced nylon	Zhongli
