Automatic Rubber Edge Grinding Machine for Rubber Edge Trimming Polishing

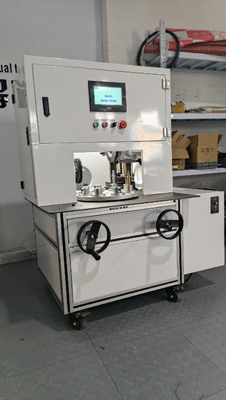

Large Image : Automatic Rubber Edge Grinding Machine for Rubber Edge Trimming Polishing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3071

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS2000-3000
Packaging Details:	wooden case packaging
Delivery Time:	7-15 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Automatic Edge Grinding Machine	Production Cycle:	2.5~4 Seconds
Production Capacity:	Length Within 100mm, Diameter Within 95mm	Maximum Output Per Shift:	2.4000 Pieces. (8 Hours)
Grinding Time:	2~6 Seconds	Workpiece Rotation Speed:	0~240 Rpm/min
Rotating Platform Speed Per Degree:	0.5~3Sec
Highlight:	automatic rubber edge grinding machine , rubber edge trimming polishing machine , rubber edge grinding machine with warranty

Automatic Rubber Edge Grinding Machine for Rubber Edge Trimming Polishing

Operating Conditions

Power supply: 380V±10%, three-phase four-wire system
Air source: ≥0.60Mpa, consumption 0.8m³/min
Ambient temperature: -10℃~+40℃
Relative humidity: Daily average up to 90%

Technical Parameters

Production cycle: 2.5~4 seconds (adjustable)
Production capacity: Up to 4000 pieces per 8-hour shift
Grinding time: 2~6 seconds (adjustable)
Workpiece rotation speed: 0~240 rpm/min (adjustable)
Rotating platform speed: 0.5~3 seconds per degree (adjustable)
Workpiece size range: Outer diameter 20~95mm, length 30~100mm
Voltage: 380V±10%
Grinding motor power: 0.75KW each (two motors total)
Equipment dimensions: 900mm × 1000mm × 1300mm

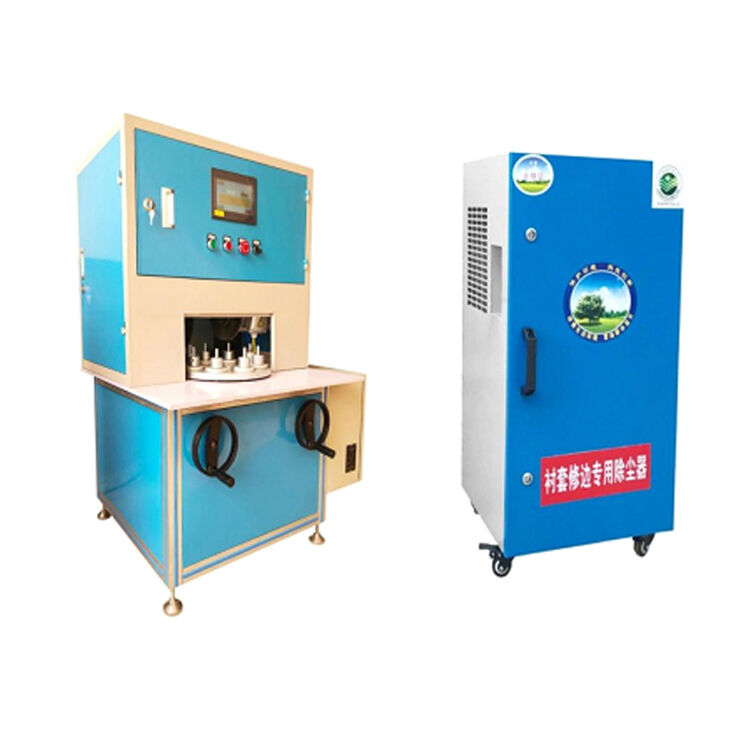

Standard Configuration

No.	Product Name	Quantity
1	Automatic edge grinding machine	1 set
2	Dusting machine	1 set

Consumables & Wearing Parts

No.	Product Name	Specification	Quantity	Replacement Frequency
1	Wire Brush	Bore 30, Outer Diameter 150	2 pcs	3-7 days
2	Workwear	Customized according to product bore	8 pieces per set	Royalty-free

Production Process

Preparing the bushing (adjusting sanding motor position)
Manual loading to rotary disc station
Automatic rotation of rotary disc
First sanding (upper port of outer pipe)
Second sanding (upper port of inner pipe)
Manual turning of bushing
Automatic rotation of rotary disc
Second sanding (lower port of outer pipe)
Second sanding (lower port of inner pipe)
Replacement of product

Technical Performance

Composed of rotating platform, grinding system, control system, and dust removal system
8 support rods on rotating platform with adjustable grinding motor for different product sizes
Platform uses servo motor and precision divider for precise indexing
Two grinding systems: one for outer pipe port, one for inner pipe port
Wire brush service life: 3-7 days
Waste material discharged into dust remover (clean every 1-2 days)
PLC programmable control system with touch screen interface
Adjustable parameters for different bushing requirements
