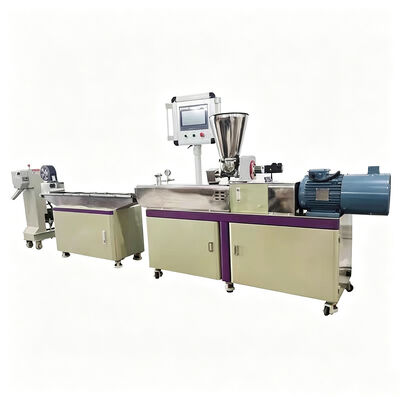

25mm Compounding Extruder Twin Screw Extrusion Granulator Co Rotating Twin Screw Pelletizer for New Material Formula Research

25mm Compounding Extruder Twin Screw Extrusion Granulator Co Rotating Twin Screw Pelletizer for New Material Formula Research
25mm Compounding Extruder Twin Screw Extrusion Granulator Co Rotating Twin Screw Pelletizer for New Material Formula Research 25mm Compounding Extruder Twin Screw Extrusion Granulator Co Rotating Twin Screw Pelletizer for New Material Formula Research 25mm Compounding Extruder Twin Screw Extrusion Granulator Co Rotating Twin Screw Pelletizer for New Material Formula Research 25mm Compounding Extruder Twin Screw Extrusion Granulator Co Rotating Twin Screw Pelletizer for New Material Formula Research

Large Image :  25mm Compounding Extruder Twin Screw Extrusion Granulator Co Rotating Twin Screw Pelletizer for New Material Formula Research

Product Details:
Place of Origin: Guangdong, China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3020B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: UDS11000-16000
Packaging Details: wooden case packaging
Delivery Time: 10-20 work days
Payment Terms: T/T,D/P,D/A,L/C
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Name: Twin-Screw Extrusion Granulator Feeding Motor: Swiss ABB Servo Motor
Main Feeding Motor Power: 0.4kW Planetary Reduction Ratio: 35:1
Reduction Ratio: 2.5:1 Max. Output Shaft Speed: 400RPM
Max. Input Shaft Speed: 1000RPM
Highlight:

25mm twin screw extruder granulator

,

co rotating twin screw pelletizer

,

extrusion granulator for material research

25mm Compounding Extruder Twin Screw Extrusion Granulator Co Rotating Twin Screw Pelletizer for New Material Formula Research
Feeder System
  • Feeding motor: Swiss ABB servo motor
  • Main feeding motor power: 0.4kW
  • Planetary reduction ratio: 35:1
  • Direct connection design between motor and reducer
  • Horizontal agitator equipped inside feeding body for stable, uniform feeding without bridging
  • Streamlined design for both feeding body and hopper ensures smooth material discharge and easy cleaning
Gear Reducer
  • Reduction ratio: 2.5:1
  • Maximum output shaft speed: 400RPM
  • Maximum input shaft speed: 1000RPM
  • Integrated transmission box combining speed reduction and torque distribution
  • Parallel three-shaft design for compact structure
  • NSK bearings applied for reduction, torque distribution, and radial bearings of output shafts
Main Motor
Mainframe motor: 4KW (AC motor)
AC motor maximum speed: 1450RPM
Brand: ABB
Screw Specifications
  • Screw diameter: Φ21.7mm
  • L/D ratio: 40:1
  • Segmental modular screw design
  • Screw shaft material: 40CrNiMoA
  • Screw elements connect with shaft via involute spline for high strength and heavy load capacity
  • Easy assembly and disassembly
  • Screw elements material: Premium high-speed tool steel W6Mo5Cr4V2
  • High-temperature vacuum quenching heat treatment
  • Overall hardness: HRC62~64
Barrel Configuration
  • Barrel material: 38CrMoAlA nitriding steel with nitriding treatment
  • Anti-rust surface treatment applied
  • 1st barrel: feeding barrel
  • 6th barrel: venting barrel
  • Last barrel: extrusion barrel
  • Other barrels: closed barrels
Heating System
Zone Barrel Section Heater Type
Feeding Zone 1st barrel section No heating
Zone 1 2nd barrel section Cast aluminum heater
Zone 2 3rd barrel section Cast aluminum heater
Zone 3 4th barrel section Cast aluminum heater
Zone 4 5th barrel section Cast aluminum heater
Zone 5 6th barrel section Cast aluminum heater
Vacuum Degassing System
  • Model: CF-0.15 water ring vacuum pump
  • Manufacturer: Zibo Lianyi Vacuum Pump Factory
  • Drive motor: 0.18kW AC motor
  • Pumping speed: 5.4m³/h
Cooling System
  • Barrel cooled by tap water
  • Equipped with imported solenoid valves
  • Custom stainless steel high-temperature water pipes
Pelletizing System
Integrated pelletizing auxiliary unit for soft & hard material
Complete integrated pelletizer set included
Control & Safety Systems
  • Feeding system interlocked with main unit - feeder only starts after main unit activation
  • Pressure system interlocked with main unit - automatic shutdown upon overpressure
  • Current interlocked with main unit - automatic shutdown upon overcurrent
