20mm Twin-Screw Extruder | Twin-Screw Extrusion Granulator | Laboratory Twin Screw Extruder | Lab Granulation Line

Large Image : 20mm Twin-Screw Extruder | Twin-Screw Extrusion Granulator | Laboratory Twin Screw Extruder | Lab Granulation Line

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3020B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS10000-15000
Packaging Details:	wooden case packaging
Delivery Time:	10-20 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Mainframe Model:	ZL-20 Twin-screw Extruder	The Aspect Ratio Of The Main Unit:	40:1
Main Motor Power:	4kw	Main Screw Speed:	60 To 600 RPM
Feeding Motor:	Swiss ABB Servo Motor	Planetary Reduction Ratio:	35:1
Highlight:	20mm twin-screw extruder , laboratory twin screw extruder , twin-screw extrusion granulator

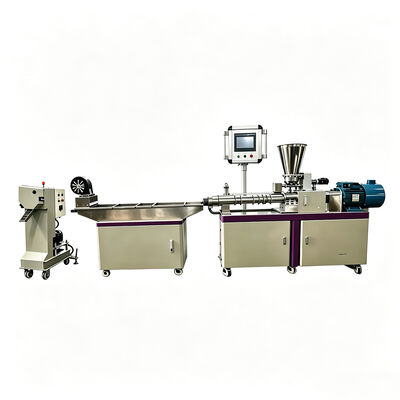

20mm Twin-Screw Extruder | Twin-Screw Extrusion Granulator | Laboratory Twin Screw Extruder | Lab Granulation Line

This laboratory twin-screw extruder system provides comprehensive granulation capabilities for polymer processing applications, featuring precision control and robust construction for research and development environments.

Equipment Overview

Product Introduction

During the polymer extrusion process, the twin-screw granulator performs shearing, mixing, and extrusion of conveyed solid melt polymer at controlled temperatures. The system manages physical state changes, mixing morphology, structural transformations, and the relationship between final mixture composition and properties.

Working Principle

Material enters through the feeding port and is kneaded into a ball under rotating screw action, rolling forward along the screw groove. Through shearing, compression, and stirring, the material undergoes further mixing and plasticization. Temperature and pressure gradually increase, creating viscous flow state conditions. The material passes through the machine head under controlled pressure and temperature to achieve the desired product shape.

Key Features

Feeding unit utilizes ABB servo motor & controller with anti-bridging stirring feeding mechanism
Main motor is ABB type with ABB variable-frequency drive for stable, reliable operation
Shaft material: 40CrNiMoA with modular barrel-screw construction
Screw elements manufactured from premium high-speed tool steel W6Mo5Cr4V2
Barrel constructed from 38CrMoAlA nitrided steel with nitriding and anti-rust surface treatment
PLC color touch screen interface with CHINT electrical components

Technical Specifications

Mainframe model: ZL-20 twin-screw extruder
Aspect ratio: 40:1
Main motor power: 4kW
Screw speed range: 60 to 600 RPM

System Configuration

No	Component	Specification	Quantity
1	Twin-screw anti-bridge feeder	CF-20	1 set
2	Twin-screw extruder	CF-20	1 set
3	Vacuum forced exhaust system	1.5L vacuum pump, 5L vacuum tank	1 set
4	Aluminum casting heating system		1 set
5	Soft water cooling system		1 set
6	Water-cooling system	1.2-meter 304 stainless steel sink	1 set
7	Pelletizer	0.4kW × 2	1 set
8	Electrical & Instrument Control System	3×380V, 50HZ	1 set
9	Control System	PLC-controlled color touch screen	1 set
10	Spare Parts		1 set
11	Technical Documentation		1 set
