Xenon Arc Weathering Test Chamber with 280 - 3000 nm Spectral Range, 500 - 1200 W/m² Irradiance, and 1800 cm² Effective Exposure Area

Large Image : Xenon Arc Weathering Test Chamber with 280 - 3000 nm Spectral Range, 500 - 1200 W/m² Irradiance, and 1800 cm² Effective Exposure Area

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6011

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS5000
Packaging Details:	wooden case packaging
Delivery Time:	10-20 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Name:	Xenon Test Chamber	Internal Dimensions:	500×500×600 Mm (W×D×H)
External Dimensions:	About 10001101850 Mm (W×D×H)	Spectral Range & Irradiance:	280 - 3000 Nm; 500 - 1200 W/m²
Effective Exposure Area:	About 1800 Cm²	Total Lamp Power:	1.8 KW

ASTM D2565 ASTM G155 G26 Xenon Arc Weathering Test Chamber

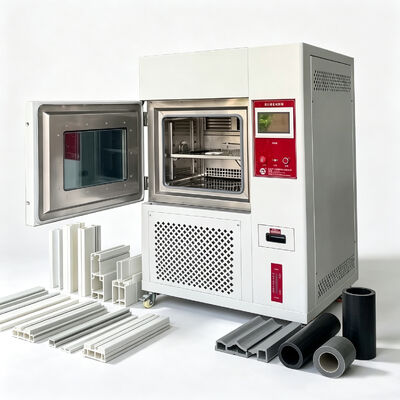

This Xenon Arc Weathering Test Chamber is designed for accelerated aging testing of PVC window profiles, outdoor plastic pipes, and various materials. The equipment simulates comprehensive weather conditions to evaluate material durability and light resistance performance.

Equipment Overview

Xenon lamp aging testing provides comprehensive weather testing capabilities. Beyond weather aging tests, it evaluates material light resistance by exposing polymer materials to artificial light sources that simulate sunlight spectrum through glass. The chamber simulates and intensifies key climatic factors including light energy, temperature, rainfall/condensation, and humidity.

Key Features

Full Sunlight Spectrum Simulation: Uses filtered xenon arc lamps to produce complete sunlight spectrum matching natural sunlight
Indoor Material Light Resistance Testing: Simulates commercial lighting environments including fluorescent and halogen lamps
Climate Environment Simulation: With water spray option, becomes a complete weathering test chamber
Relative Humidity Control: Essential for humidity-sensitive materials and required by many test protocols

Applications

Suitable for scientific research, product development, and quality control. Used for new material selection, existing material improvement, and durability evaluation after material composition changes. Applicable to plastics, rubber, paints, inks, paper, food, cosmetics, textiles, auto parts, packaging materials, construction materials, and electrical products.

Functions

Full spectrum xenon lamp
Multiple filter systems available
Water spray function
Relative humidity control
Test chamber air temperature control system
Irregularly shaped sample holder
Cost-effective xenon arc tubes
Easy installation with minimal maintenance
Lamp lifetime approximately 1200 hours

Technical Specifications

Internal Dimensions	500500600 mm (WDH)
External Dimensions	Approximately 10001101850 mm (WDH)
Spectral Range & Irradiance	280 - 3000 nm; 500 - 1200 W/m²
Effective Exposure Area	Approximately 1800 cm²
Number of Lamps	1
Lamp Power	1.8 kW per lamp
Total Lamp Power	1.8 kW
Lamp Lifetime	Approximately 1200 hours
