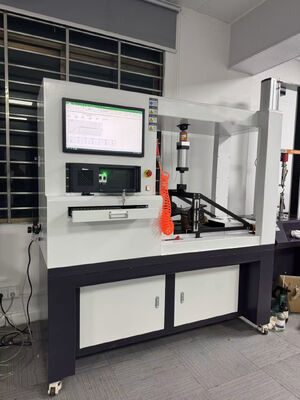

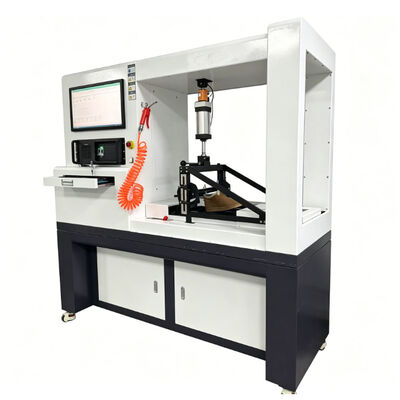

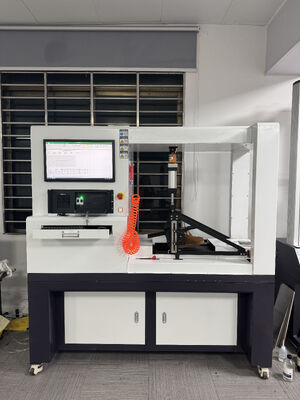

Computerized Anti-Slip Testing Machine with SATRA TM144 GB/T 3903.6 GB/T2828 standard

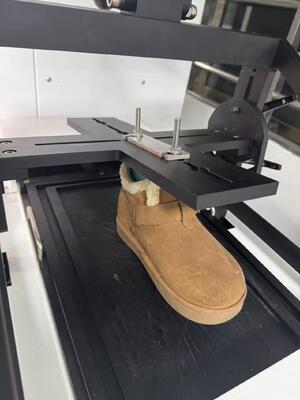

This testing machine simulates the friction generated between shoe components (front and heel parts) and ground surfaces during walking. The principle involves pressing shoe material or complete footwear against a standard tile with fixed force, adjusting to a specific angle, and then rapidly moving the tile while measuring friction changes via force sensors.

Test materials include finished shoes, outsoles, leather, top lifts, and more. Testing methods encompass both dry and wet conditions. Compatible floor materials include stainless steel, carpet, ceramic tiles, and other standard surfaces.

Compliant with GB/T 3903.6, GB/T2828, SATRA TM144 and other relevant standard requirements.

The specimen is placed on the test plane with glycerin as lubricant. After applying a given load, the test table moves horizontally relative to the specimen via transverse traction force. The system measures dynamic friction force and calculates the dynamic friction coefficient.

The software measurement system is practical, reliable, stable, flexible, and convenient, meeting diverse standard requirements. Data processing methods, result data, and test plans are managed via database. Equipped with a standard test reference library to accommodate current and future user requirements.

Utilizes brand-name computer control for test setup, operational status control, data acquisition, calculation processing, and result display/printing. Features dedicated testing machine system with intelligent software package offering fast operation, modern interface, flexibility, stability, simple operation, and comprehensive functionality.

• Main Window Functions: Operable via control selection boxes, intelligent graphical interfaces, or text-based instruction interfaces
• Password Protected Main Menu: Prevents unauthorized data alteration or deletion, ensuring test data integrity
• Automatic Overload Detection: Built-in detection and recording function reduces human error
• Automatic Load Range Switching: Automatic positioning and display after test completion
• Test Result Re-analysis: Capability to change display units, recalculate, modify graphs, etc.
• Automatic Operation Time Conversion & Graph Scaling: No test time limitations

• Report items include vertical pressure, dynamic friction force, static friction force, friction coefficient, specimen name, test method, floor type, with averaging of multiple test values
• Open programming allows custom test standard design and personalized report formats with Excel export capability
• Interactive test curves with unlimited zoom functionality and simultaneous axis scale adjustment
• Rich curve analysis: Automatic characteristic point marking, zooming, shrinking, curve traversal with real-time display of 3+ curve types
• Customizable unit conversion with automatic data transformation
• Flexible report format design with comprehensive statistical data collection
• Advanced data query functionality based on ID, date, test plan name, etc.
