ASTM E1421 High Precision FTIR Fourier Transform Infrared Spectroscopy Machine for Food Petrochemical Raw Material

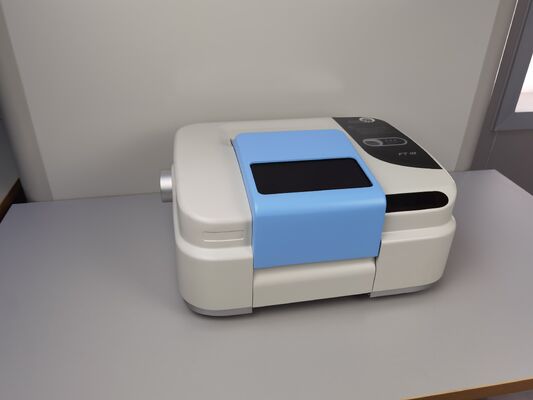

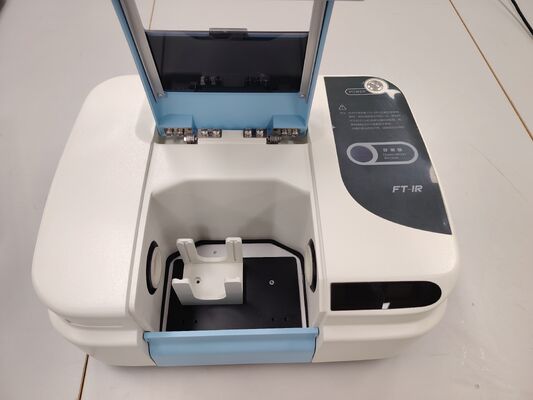

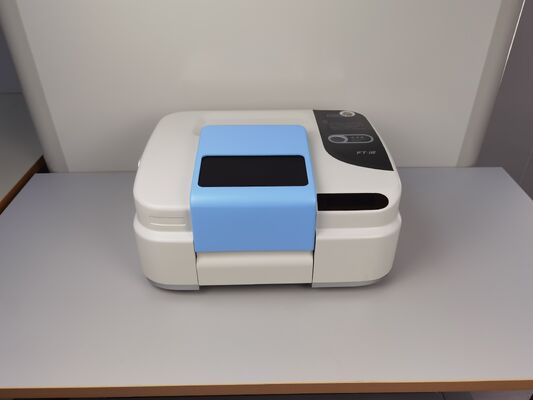

Large Image : ASTM E1421 High Precision FTIR Fourier Transform Infrared Spectroscopy Machine for Food Petrochemical Raw Material

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE
Model Number:	ZL-3080-20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD2800
Packaging Details:	wooden case packaging
Delivery Time:	14 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	50

Contact Now

Detailed Product Description

Spectral Range:	7800-350cm⁻¹	Resolution:	Better Than1cm-1
Signal-to-noise Ratio:	30000:1 (P-P Value, 4cm-1, 1min Scan)	Wave Number Accuracy:	Better Than 0.01cm⁻¹
Transmission Accuracy:	Better Than 0.05 τ%	Power Supply:	100V-240V, 50/60Hz Broadband Power Supply

ASTM E1421 High Precision FTIR Fourier Transform Infrared Spectroscopy Machine for Food Petrochemical Raw Material

The ZL-3080 Fourier Transform Infrared Spectrometer is a product meticulously and independently developed by Dongguan Zhongli Instrument Technology Co., Ltd. Featuring convenient installation, simple operation, and easy maintenance, it has become an indispensable spectroscopic analysis instrument in fields such as materials science, biomedicine, petrochemicals, and food safety. It is also an essential laboratory instrument for related majors in universities and research institutes.

Working Principle

Using the working principle of interferometer interference frequency modulation, the light emitted by the light source is converted into interference light through the Michelson interferometer, and then the interference light irradiates the sample. The receiver receives the interference light with the sample information, and then the spectrum of the sample can be obtained through Fourier transform by computer software.

Main Specifications

Specification	Value
Spectral range	7800-350cm⁻¹
Resolution	Better than 1cm⁻¹
Signal-to-noise ratio	30000:1 (P-P value, 4cm⁻¹, 1min scan)
Wave number accuracy	Better than 0.01cm⁻¹
Transmission accuracy	Better than 0.05 τ%
Interferometer	Non-orthogonal Michelson interferometer
Data transmission interface	High-speed USB2.0 (compatible with USB3.0)
Power supply	100V-240V, 50/60Hz broadband power supply
Sample bin size	190*160mm
Instrument size	450350210mm
Weight	14kg

Application Industries

Testing of food and their packaging materials
Identification of polymers such as plastics, rubber, nylon, and resins
Asphalt source tracing and SBS content determination
Determination of structural group composition in mineral insulating oils and lubricating oils
Identification and determination of typical unconventional additives in automotive gasoline
Measurement of carbon and oxygen content in silicon crystals
Identification of textile fibers
Crystal Q-value determination
Determination of architectural glass parameters…and more
