ASTM E168 ISO10640 FTIR Spectrometer Fourier Transform Infrared Spectrometer for Polymer Rubber Plastic Material

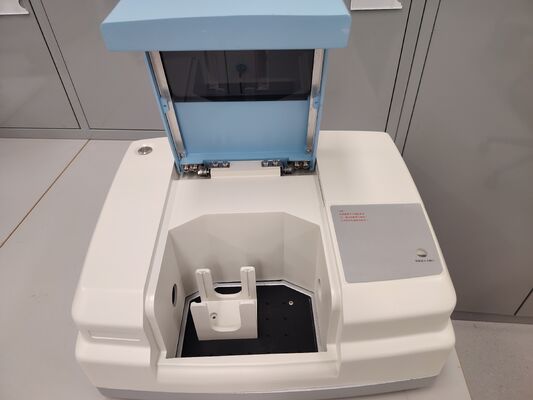

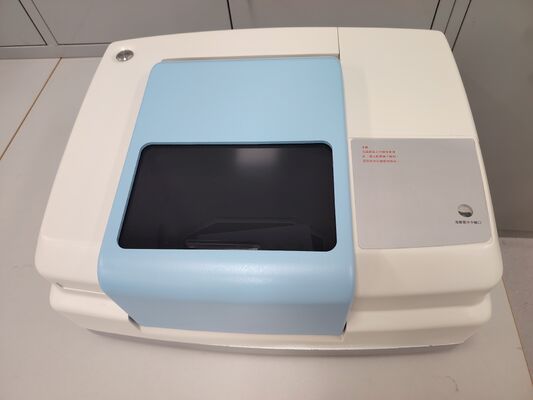

Large Image : ASTM E168 ISO10640 FTIR Spectrometer Fourier Transform Infrared Spectrometer for Polymer Rubber Plastic Material

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE
Model Number:	ZL-3080-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	UDS26000
Delivery Time:	14 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	50

Contact Now

Detailed Product Description

Name:	FTIR Spectrometer	Wavenumber Range:	7800 ~ 375 Cm⁻¹
Resolution:	Better Than 1.0 Cm⁻¹	Wavenumber Accuracy:	≤ 0.01 Cm⁻¹
Signal-to-Noise Ratio (SNR):	Better Than 15,000:1 / 30,000:1 (Peak-to-Peak, 4 Cm⁻¹, 1-minute Scan) – Optional	Data Interface:	USB 2.0 (Compatible With USB 3.0)

ASTM E168 ISO10640 FTIR Spectrometer Fourier Transform Infrared Spectrometer for Polymer Rubber Plastic Material

The ZL-3080 Fourier Transform Infrared Spectrometer is a product meticulously and independently developed by Dongguan Zhongli Instrument Technology Co., Ltd. Featuring convenient installation, simple operation, and easy maintenance, it has become an indispensable spectroscopic analysis instrument in fields such as materials science, biomedicine, petrochemicals, and food safety. It is also an essential laboratory instrument for related majors in universities and research institutes.

Operating Principle

The FTIR utilizes the Michelson interferometer principle. Light emitted by the source passes through the Michelson interferometer to create optical interference, which then illuminates the sample. The receiver captures the interference light containing sample information, and computer software performs Fourier transformation to obtain the sample spectra.

Product Features

Advanced technology with mature, well-integrated design
Incorporates advanced foreign technology and cutting-edge design concepts
Performance and key technical specifications meet international standards
Convenient installation, simple operation, and easy maintenance

Technical Specifications

Specification	Value
Wavenumber Range	7800 ~ 375 cm⁻¹
Resolution	Better than 1.0 cm⁻¹
Wavenumber Accuracy	≤ 0.01 cm⁻¹
Signal-to-Noise Ratio (SNR)	Better than 15,000:1 / 30,000:1 (Peak-to-Peak, 4 cm⁻¹, 1-minute scan) - Optional
Beamsplitter	Germanium-coated KBr substrate (Imported)
Light Source	High-energy, high-efficiency, long-life ceramic light source (Imported)
Interferometer	Michelson interferometer with 30° incident angle
Detector	High-sensitivity DLATGS detector with moisture-proof coating (Imported)
Data Interface	USB 2.0 (Compatible with USB 3.0)
Dimensions	450mm (W) × 350mm (D) × 210mm (H)
Weight	14Kg
