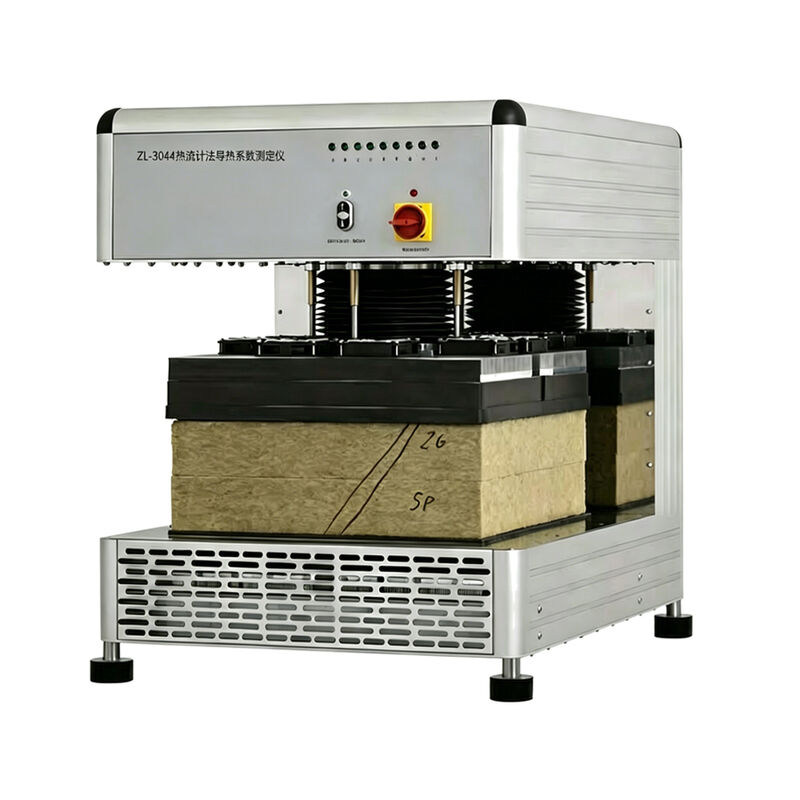

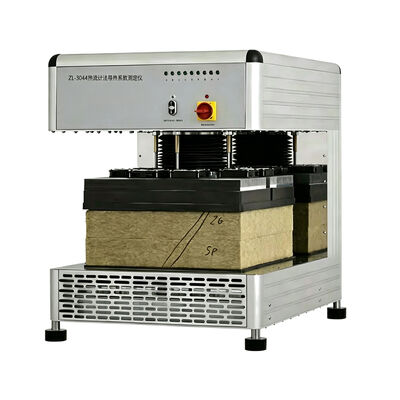

EN 12667 ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter Method

Large Image : EN 12667 ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter Method

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE
Model Number:	ZL-3044D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	UDS9000
Packaging Details:	wooden case packaging
Delivery Time:	14 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	50

Contact Now

Detailed Product Description

Name:	Heat Flow Meter Method Thermal Conductivity Tester	Heat Flux Range:	(-600 ~ +600) W/m²
Thermal Conductivity Display Range:	0.001 ~ 2.000 W/(m·K)	Measurement Accuracy:	±3 %
Repeatability:	±1 %	Temperature Measurement Range:	-5 °C ~ +95 °C
Temperature Resolution:	0.01 °C	Temperature Control Accuracy:	±0.05 °C
Specimen Thickness (standard):	25 Mm (range: 5 ~ 80 Mm)

EN 12667 ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter Method

This thermal conductivity tester utilizes the heat flow meter method and complies with multiple international standards including EN 12667, ASTM C518, and ISO 8301.

Product Name

Thermal Conductivity Tester (Heat Flow Meter Method)

Applicable Standards

GB/T 10295-2008 - Thermal insulation - Determination of steady-state thermal resistance and related properties - Heat flow meter method
GB/T 39704-2020 - Determination of effective thermal conductivity of vacuum insulation panels (VIP)
EN 12667, ASTM C518, ISO 8301

Product Overview

Manufactured in accordance with GB/T 10295-2008 and GB/T 39704-2020 standards, this instrument is primarily used for measuring the thermal conductivity of STP and VIP vacuum insulation panels. It is widely applicable to thermal insulation material production enterprises, quality inspection departments, universities, and research institutes.

Application

The instrument is designed for testing STP and VIP vacuum insulation panels, as well as various other thermal insulation materials including silicate insulation materials, ceramic insulation materials, XPS extruded boards, rigid polyurethane foam boards, foamed cement boards, EPS foam boards, perlite, vermiculite bricks, and similar materials.

Working Principle

This instrument employs a steady-state measurement method. Accurate results are obtained only after the cold plate and hot plate reach thermal equilibrium. According to the one-dimensional steady-state heat transfer equation, heat generated by the hot plate heater passes through the specimen to the cold plate and is then carried away by circulating water or other medium, forming a complete thermodynamic cycle.

Key Features

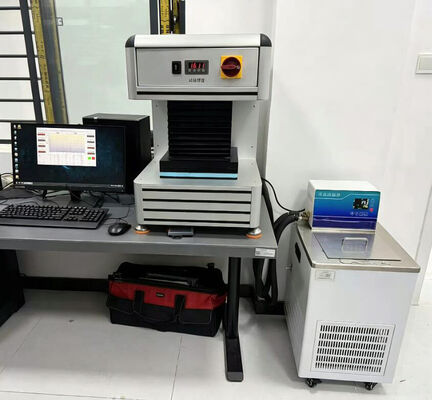

Integrated constant-temperature bath system
Full computer control via user-friendly software interface
Automatic data acquisition, processing, and calculation
Real-time display and printout of thermal conductivity results
Compact footprint, fast measurement, high accuracy, low noise

Main Specifications

Parameter	Specification
Heat flux range	(-600 ~ +600) W/m²
Thermal conductivity display range	0.001 ~ 2.000 W/(m*K)
Measurement accuracy	±3 %
Repeatability	±1 %
Temperature measurement range	-5 °C ~ +95 °C
Temperature resolution	0.01 °C
Temperature control accuracy	±0.05 °C
Specimen thickness (standard)	25 mm (range: 5 ~ 80 mm)
Specimen size (optional)	300300, 300600, 400600, 600600 mm (custom sizes >600 mm available)
Laboratory temperature	(23 ± 2) °C
Laboratory humidity	(40 ~ 60) % RH
Power supply	AC 220V ±10 %, 2.0 kW
