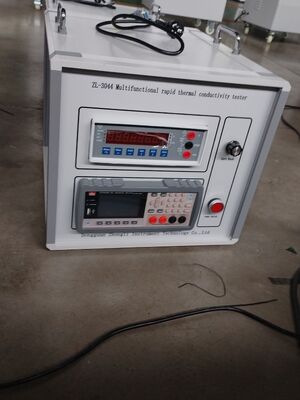

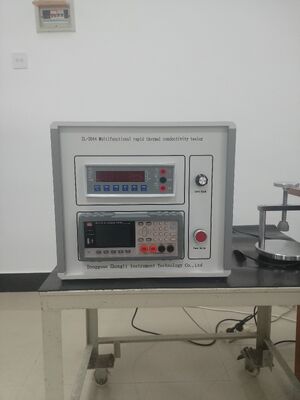

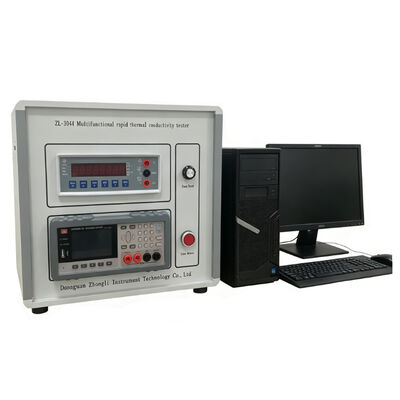

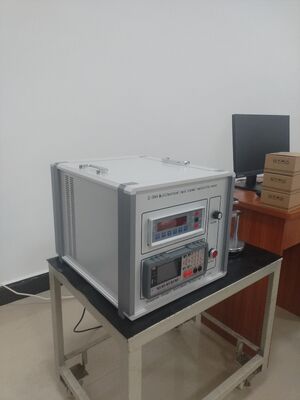

ISO 22007 Multi-function Fast Thermal Conductivity Tester Transient Plane Source Method Hot Disk Method

Large Image : ISO 22007 Multi-function Fast Thermal Conductivity Tester Transient Plane Source Method Hot Disk Method

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE
Model Number:	ZL-3044C-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	3500
Packaging Details:	wooden case packaging
Delivery Time:	14 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	50

Contact Now

Detailed Product Description

Name:	Multi-function Fast Thermal Conductivity Tester	Thermal Conductivity Measurement Range:	0.001–500 W/(m·K),resolution: 0.0001 W/(m·K)
Thermal Diffusivity Range:	0.1–100 Mm²/s	Thermal Storage Coefficient Range:	0.1–30 W/(m²·K)
Specific Heat Capacity Range:	0.1–5 KJ/(kg·°C)	Thermal Resistance Range:	0.5–0.000005 M²·K/W
Temperature Measurement Accuracy:	≤0.0001°C	Relative Measurement Error:	≤3%

ISO 22007 Multi-function Fast Thermal Conductivity Tester

Transient Plane Source Method Hot Disk Method

Overview

This instrument employs the Transient Plane Source (TPS) method, utilizing TPS transient plane source technology with a Hot Disk probe. Key advantages include:

Direct measurement of heat propagation, significantly reducing testing time
Unaffected by contact thermal resistance issues common in static methods
Minimal sample preparation requirements - only relatively flat surfaces needed for solid materials

The system utilizes different testing schemes and mathematical models for various material types. It features rapid measurement speed, broad applicability, and successfully avoids natural convection effects during experiments. With extensive material compatibility, wide thermal conductivity range, simple sample preparation, and fast testing capabilities, this represents a leading contemporary testing methodology.

Compliance Standards

Equipment reference standards: ISO 22007-2:2008, GB/T 32064-2015

Material Compatibility

Metals, alloys, graphite, thermal greases, silicone gels, silicone rubbers, ceramics, geotechnical materials, rocks, polymers, paper, fabrics, foams, concrete, composite panels, paper honeycomb panels, and other solids, powders, liquids, pastes, coatings, films, insulation materials, thermal insulating materials, anisotropic materials.

Measurable properties include thermal conductivity, thermal diffusivity, specific heat capacity, thermal storage coefficient, and thermal resistance.

Technical Specifications

Parameter	Specification
Thermal Conductivity Measurement Range	0.001-500 W/(mK), resolution: 0.0001 W/(mK)
Thermal Diffusivity Range	0.1-100 mm²/s
Thermal Storage Coefficient Range	0.1-30 W/(m²*K)
Specific Heat Capacity Range	0.1-5 kJ/(kg*°C)
Thermal Resistance Range	0.5-0.000005 m²*K/W
Temperature Measurement Accuracy	≤0.0001°C
Relative Measurement Error	≤3%
Repeatability Error	≤3%
Test Time	1-120 seconds
Sample Test Ambient Temperature Range	-40°C to +150°C (Standard configuration: room temperature) Optional temperature control chambers for various high/low temperature ranges (-40°C to +150°C) or vacuum test conditions available at additional cost
Probe Configuration	Standard: Φ15 mm diameter Optional probe diameters: Φ30 mm, Φ15 mm, Φ7.5 mm, Φ4 mm, or multiple sizes combined (additional cost)

Sample Testing Capabilities

Solid block or irregular samples: No special preparation required - only relatively flat sample surface; equipped with dedicated sample clamping device
Powders, pastes, liquids: No special requirements; equipped with dedicated sample test cells
Thin materials (0.01-1 mm thickness): Tested with dedicated test schemes and mathematical models
High-conductivity materials (100-500 W): Tested with dedicated test schemes and mathematical models
Thermal insulation materials (0.010-0.050 W): Tested with dedicated test schemes and mathematical models

Additional Features

Fully automatic test software for fast and accurate parameter analysis and report output during testing.

Power supply: AC 220V ±10%, 50/60 Hz total power: <500 W
