TDM-100 Method Digital Protective Glove Cut Resistance Tester with EN ISO 13997 EN 388 ANSI ISEA 105 ASTM F2992

Large Image : TDM-100 Method Digital Protective Glove Cut Resistance Tester with EN ISO 13997 EN 388 ANSI ISEA 105 ASTM F2992

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE
Model Number:	ZL-3043C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	UDS2300
Packaging Details:	wooden case packaging
Delivery Time:	14 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	50

Contact Now

Detailed Product Description

Name:	Glove Cut Resistance Tester	Force Range:	1.0N - 200.0N
Blade Cutting Distance On Specimen:	0 - 50.0mm	Weight Set:	20N (8 Pcs), 10N (3 Pcs), 5N (1 Pc), 2N (2 Pcs), 1N (1 Pc), 0.1N (1 Pc)
Blade Hardness:	(56 - 63) HRC	Blade Cutting Edge:	Length (70 ± 0.5) Mm, Width (19 ± 0.3) Mm, Thickness 0.91 Mm
Blade Model:	88-0121	Blade Movement Speed:	(2.5 ± 0.5) Mm/s

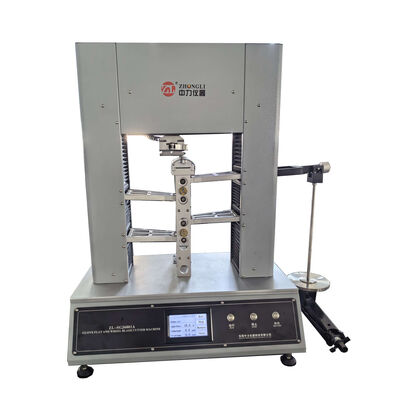

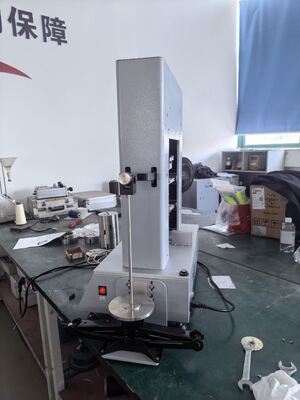

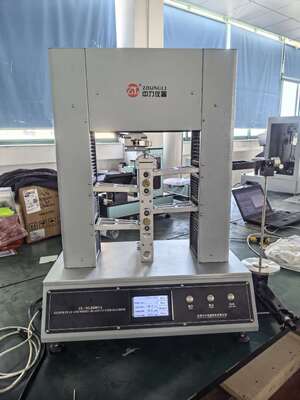

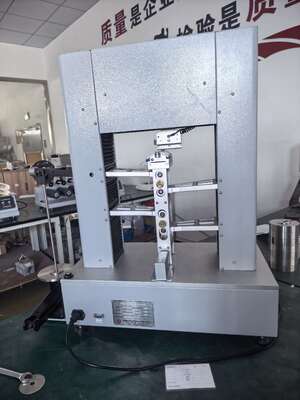

TDM-100 Method Digital Protective Glove Cut Resistance Tester

Professional testing instrument for evaluating cut resistance performance of protective gloves and materials according to international standards including EN ISO 13997, EN 388, ANSI ISEA 105, and ASTM F2992.

Instrument Purpose

Designed for testing the performance of materials and components in protective clothing. The instrument measures the vertical (normal) force required for a blade to cut through test specimens over a fixed distance.

Applicable Standards

GB 24541-2022, EN ISO 13997, EN 388-2016 6.3, ANSI ISEA 105-2016, ASTM F2992-15, and related international standards.

Product Features

Color touch screen display with Chinese and English interfaces, menu-based operation
Servo motor drive with high-precision ball screw for controlled movement speed
Imported high-precision bearings for low friction and high accuracy
Radial stability design ensures vibration-free operation without wobbling
Core control component utilizes STMicroelectronics 32-bit microcontroller
Uses TDM-specified blade and TDM-specified chloroprene rubber

Technical Specifications

Parameter	Specification
Force Range	1.0N - 200.0N
Blade Cutting Distance	0 - 50.0mm
Specimen Mounting Area	Curved surface with bending radius of (38 ± 0.5) mm, length > 110 mm, width ≥ 32 mm. Allows multiple cutting tests with minimum 10 mm spacing.
Blade Holder	Firmly clamps blade with minimal deformation, exposes (12.0 ± 0.5) mm of blade. Blade plane forms (90 ± 2)° angle with specimen holder long axis.
Weight Set	20N (8 pcs), 10N (3 pcs), 5N (1 pc), 2N (2 pcs), 1N (1 pc), 0.1N (1 pc)
Blade Hardness	(56 - 63) HRC
Blade Dimensions	Cutting edge length (70 ± 0.5) mm, width (19 ± 0.3) mm, thickness 0.91 mm
Blade Model	88-0121
Blade Movement Speed	(2.5 ± 0.5) mm/s
Cut-through Force Accuracy	0.1N
Force Application Accuracy	Maintained within ±5% of set value
External Dimensions	560 × 400 × 700 mm (L × W × H)
Weight	40 kg
Power Supply	AC220V, 50Hz, 500W
