Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming

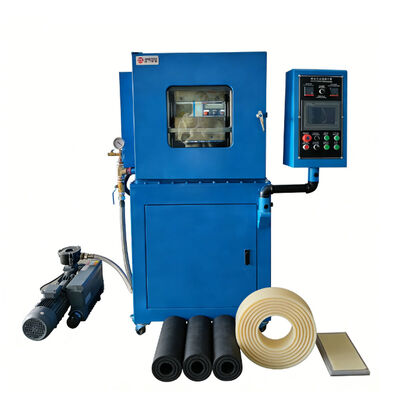

Large Image : Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE
Model Number:	ZL-3022F

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD7000
Packaging Details:	wooden case packaging
Delivery Time:	20 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	50

Contact Now

Detailed Product Description

Capacity:	5~50ton ( Option )	Temp. Range:	Room Temp. ～300℃
Timer :	LED Display，time Range 0.1S～99min～9.9hr	Barrel Heating Way:	Microcomputer PID Control, Stable Performance And Precise Temperature Control
Heat Time:	~20min (Ambient → 170℃)	Oil cylinder stroke:	Max 180mm
Oil cylinder speed:	11mm/s	Pressure gauge :	0～100kg/sq.cm

Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming

Operating Principle

The material is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature, making the material shaping, testing and serving as the basis for the ingredient of mass production.

Technical Specifications

Parameter	Specification
Capacity	5~50 ton (Optional)
Temperature Range	Room temperature ~ 300℃
Temperature Controller	Independent temperature control; digital thermostat displays temperature and allows manual temperature setting
Timer	LED display, time range 0.1S ~ 99min ~ 9.9hr
Heating Type	Microcomputer PID control, stable performance and precise temperature control
Heater	Cylindrical heaters embedded inside mold, rationally arranged mounting holes, featuring fast heating, long service life and easy maintenance
Heat Time	~20min (Ambient → 170℃)
Hot Pressure Plate	300*300mm imported SKD plate, carburizing quenching treatment, fast heat transfer, flat & non-deformable under pressing
Cold Pressure Plate	300*300mm, built-in water cooling circuit with water inlet/outlet ports, client provides tap water source
Double-layer Design	1 heating layer + 1 water cooling layer
Oil Pressure System	Closed-loop flow control with GPY pump, low-resistance cylinder, auto pressure compensation; preset 1st/2nd pressing time, auto press/hold/release, stable lifting & heavy load
Oil Cylinder Stroke	Max 180mm
Oil Cylinder Speed	11mm/s
Pressure Gauge	0 ~ 100kg/sq.cm
Power	10.6 HP
Dimension (WDH)	9805901630 mm
Power Supply	3∮, AC380V, 20A
Weight	About 1290kg
Vacuum	-0.06mpa ~ 0.09mpa, auto constant high vacuum retention
