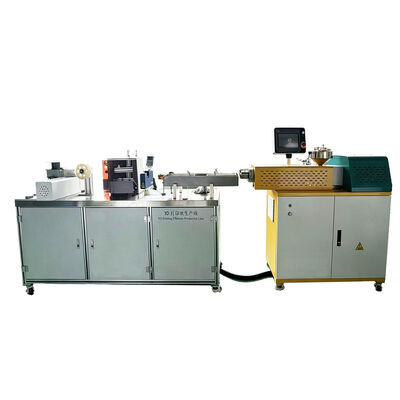

Laboratory 3D Filament Extrusion Line Extrusion Production Line for PLA ABS 3D Printer Filament

Large Image : Laboratory 3D Filament Extrusion Line Extrusion Production Line for PLA ABS 3D Printer Filament

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE
Model Number:	ZL-3017E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	UDS9000
Packaging Details:	wooden case packaging
Delivery Time:	20 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	50

Contact Now

Detailed Product Description

Name:	Laboratory 3D Filament Extrusion Line	Model:	ZL-3017E
Electric Resource:	380V, 3PHASE, 50HZ	Product Diameter:	Φ 1.75
Capacity:	1-2kg/h	Machine Size:	25006501500mm
Power:	About 10kw	Barrel Screw Diameter:	Φ25mm
Screw L/D:	30:1	Barrel Screw Material:	38CrMoAlA

Laboratory 3D Filament Extrusion Line for PLA ABS 3D Printer Filament

The Laboratory 3D Filament Extrusion Line is designed for material properties measurement, production process parameter optimization, and research material molding properties. It serves as an ideal solution for scientific research, teaching demonstrations, and production enterprises.

Main Specifications

Using Condition	Specifications
Electric Resource	380V, 3PHASE, 50HZ
Plastic Raw Materials	By customer
Product Diameter	Φ 1.75
Capacity	1-2kg/h
Machine Size	25006501500mm
Power	About 10kw

Technical Parameters

SJ25/30 Single Screw Extruder: 1 SET
Mould: 1 SET
Water Cooling Box: 1 SET
Gauging Arrangement: 1 SET
Two Roller Traction: 1 SET
Winder: 1 SET

Main Parts Specification

SJ25/30 Single Screw Extruder

Barrel screw diameter	Φ25mm
Screw L/D	30:1
Barrel screw material	38CrMoAlA
Barrel heating way	Electric heating
Motor	Converter motor
Motor power	2.2kw
Speed adjusting	Frequency control

Mould

Mould Diameter	Φ 1.75mm
Mould Material	45#steel

Water Cooling Box

Box Material	304 Stainless steel
Length	1000mm
Width	200mm

Two Roller Traction

Roller Diameter	60mm
Roller Material	Rubber
Speed Adjust	Frequency control

Winder

Winder Motor	Torque motor
Speed Adjust	Frequency control

Electric Control System

Frequency Transformer	HOLIP
Tachograph	QUANSHENG

Safety Protection

The control box has the power light, the stop switch, and the emergency stop button
All dangerous and running places are clearly marked
