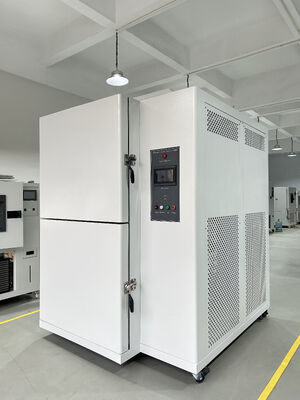

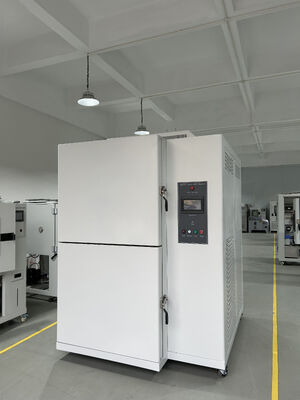

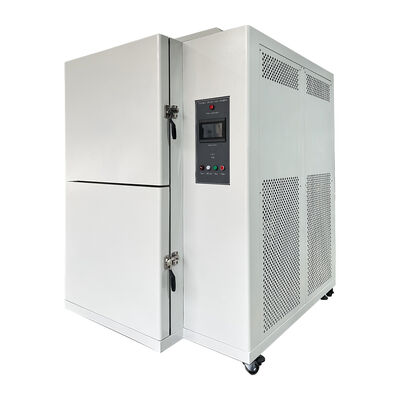

EN 60068 SAE J1455 AEC-Q100 2 Zone Thermal Shock Chamber for Automotive Electronics Battery Reliability Testing

Thermal Shock Test Chamber (also known as a temperature shock test chamber or thermal cycling chamber) is specialized environmental testing equipment designed to evaluate product performance and reliability under extreme, rapid temperature changes. It simulates sudden transitions between high and low temperatures to test the durability and stability of materials, components, and finished products.

This testing method helps identify design flaws caused by thermal expansion and contraction—such as material mismatches, micro-cracks in welds, seal failures, and other latent defects—by exposing specimens to temperature differentials exceeding 70 K within seconds.

Common applications include:

• Electronics and semiconductors
• Automotive components
• Aerospace and defense systems
• Materials research (plastics, metals, composites)
• Telecommunications and medical devices

Thermal shock chambers subject test specimens to repeated, rapid transitions between hot and cold environments. The fundamental principle involves moving either the specimen between temperature zones or switching airflow between zones, creating sudden thermal stress that reveals potential weaknesses in product design and manufacturing.

Thermal shock chambers are available in two primary configurations, each with distinct advantages depending on the application.

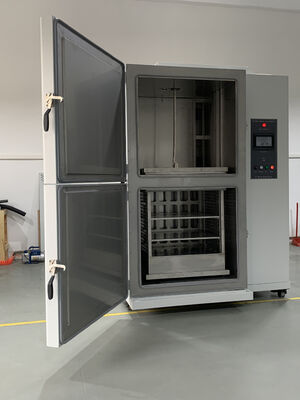

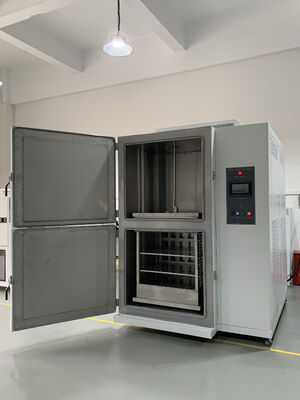

The two-zone configuration features separate high-temperature and low-temperature zones arranged vertically or horizontally. A specimen basket automatically transfers the test item between zones using an elevator, motorized screw rod, or pneumatic system.

Advantages:

• Direct immersion-style heat transfer for high shock intensity
• Fastest possible transition times
• Suitable for high-throughput testing requirements
