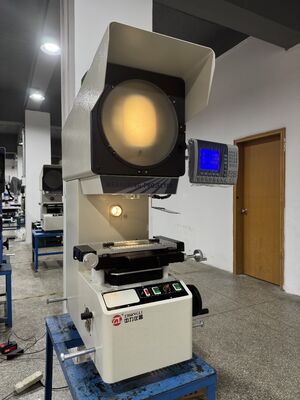

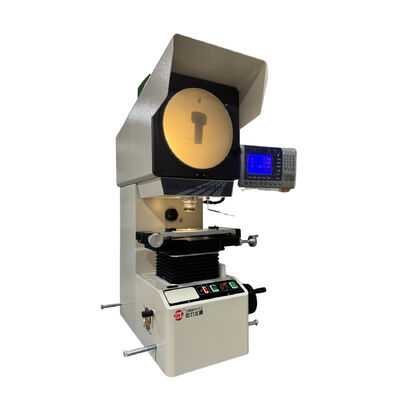

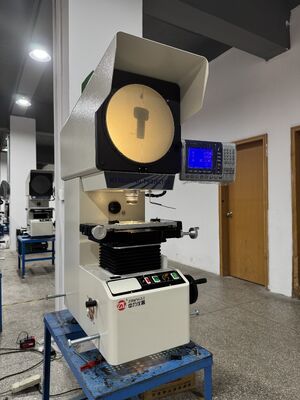

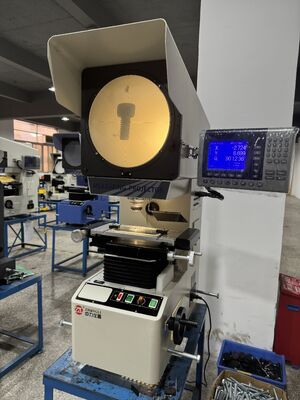

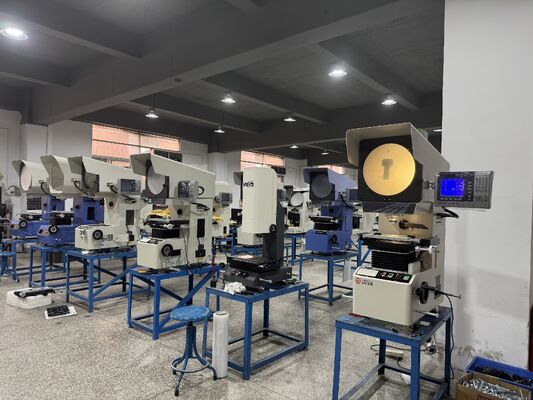

Sensing Projector Impact Specimen U/V Notch Profile Projector Measuring Specimen Projector Vertical Projector
>>>Appendix 1: Instrument Accessories

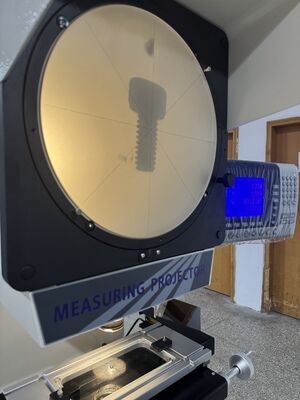

A. Projection Screen:
1. Projection screen size (mm): Φ312, usable range greater than Φ300, utilising Japanese lithography technology, engraved with grid lines.
2. Projection screen rotation range: 0-360º
3. Rotation angle digital display resolution: 1′ or 0.01º, utilising Japanese rotary encoder.
B. Objective Lens:
| Ratio |
10X |
20X(Option) |
50X(Option) |
100X(Option) |
| Objective field of view(mm) |
Φ30 |
Φ15 |
Φ6 |
Φ3 |
| Objective working distance(mm) |
77.7 |
44.3 |
38.4 |
25.3 |
| Max.measure height(mm) |
90 |
90 |
90 |
90 |
C. Distance Measurement System:
The DP-300C multifunction digital display meter uses Japanese materials and features a fully Chinese-language display. It can perform multi-point sampling, coordinate rotation, point, line, circle, distance, and angle measurements.
D. Instrument Lighting:
Transmitted and reflected lighting uses imported German Osram 24V, 150W halogen lamps.
E. Cooling Method:
Forced air cooling (3 axial fans)
F. Instrument Power Supply:
110V/220V (AC) 50/60Hz, total power 400W
G. Instrument Dimensions:
Length * Width * Height (mm): 788 * 524 * 1152
H. X, Y Workbench:
Made of ductile iron casting and precision machined, with special stabilisation treatment to significantly improve measurement accuracy and stability.
I. Transmission Method:
Adopts Japanese toothless optical rod transmission.
