Vertical Projector Measuring Specimen Projector

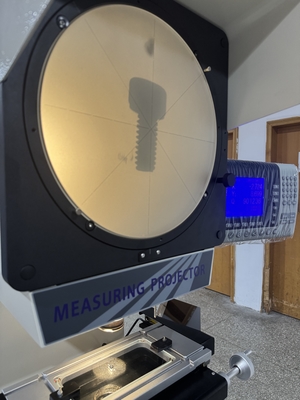

Large Image : Vertical Projector Measuring Specimen Projector

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1509

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Vertical Projector Measuring Specimen Projector is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Vertical Projector Measuring Specimen Projector	Metal Table Size(MM):	340×152
Glass Table Size(MM):	196×96	X Stroke(MM):	150
Y Stroke(MM):	50	Z Stroke(MM):	100(Include Focusing)
Measure Accuracy:	3+L/200	X、Y Display Resolution:	0.0005mm
Highlight:	vertical specimen projector , measuring projector machine , video measuring projector

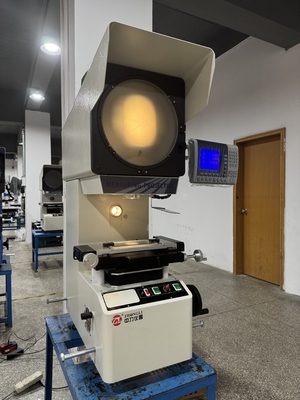

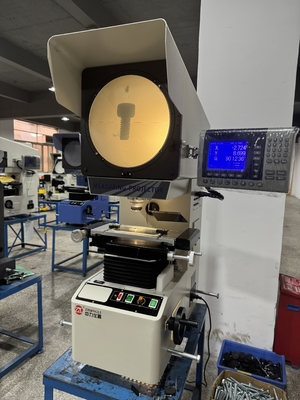

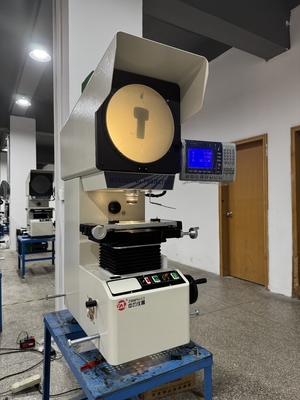

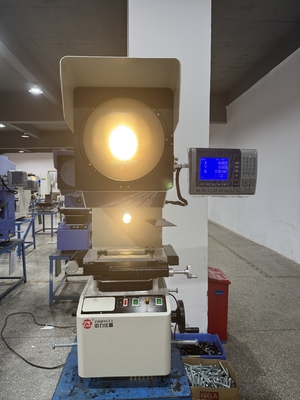

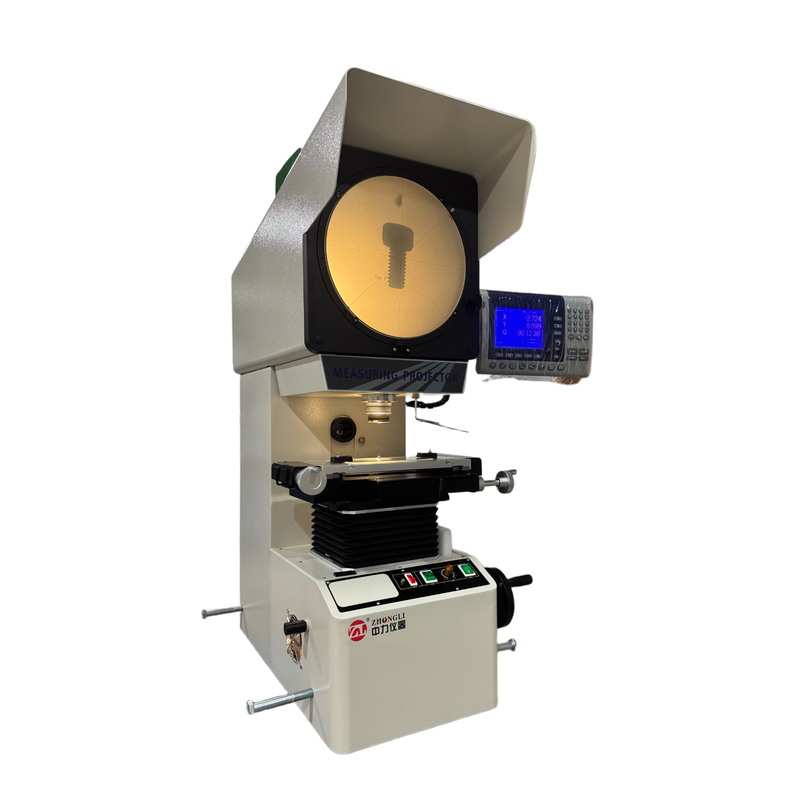

Vertical Projector Measuring Specimen Projector

The ZL-1500 series digital measuring projector is a precision, high-efficiency measuring instrument that integrates optics, mechanics, and electronics. This vertical projector delivers exceptional performance for contour and coordinate measurements across various industries.

Applications & Industries

Widely used in machinery, instruments, electronics, light industry, universities, research institutes, and metrology calibration departments. Ideal for inspecting templates, stamped parts, cams, threads, gears, formed milling cutters, tools, cutting tools, parts, terminals, watches, and diamonds.

Key Features

High-quality optical system with clear objective lens imaging
Accurate magnification with contour measurement error less than 0.08%
Coordinate measurement indication error: (3+L/200) µm
Includes dedicated miniature printer and foot switch for convenient data output
Workpiece image display as positive or inverted image
ZL-1509 model features rail transmission for enhanced stability and durability
DP100 multifunctional data processing system with full Chinese display

Technical Specifications - ZL-1509 Model

Parameter	Specification
Metal Table Size	340 * 152 mm
Glass Table Size	196 * 96 mm
X Stroke	150 mm
Y Stroke	50 mm
Z Stroke	100 mm (Includes Focusing)
Measurement Accuracy	3 + L/200
X,Y Display Resolution	0.0005 mm

Data Processing Capabilities

The DP100 system supports multi-point sampling, coordinate rotation, point, line, distance, and angle detection. Features RS-232 data output and measurement graphics display, making it an indispensable metrological calibration device for production workshops and laboratories.
