220V CNC 3D Coordinate Optical Measuring Equipment

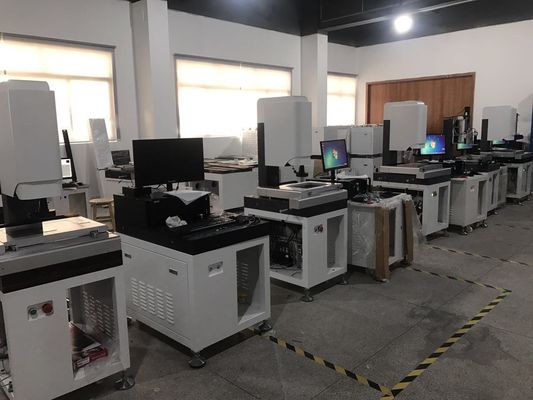

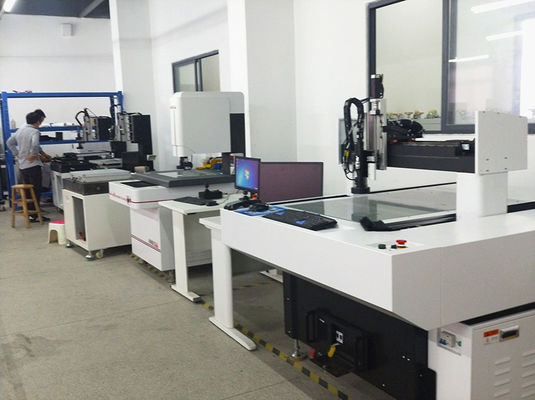

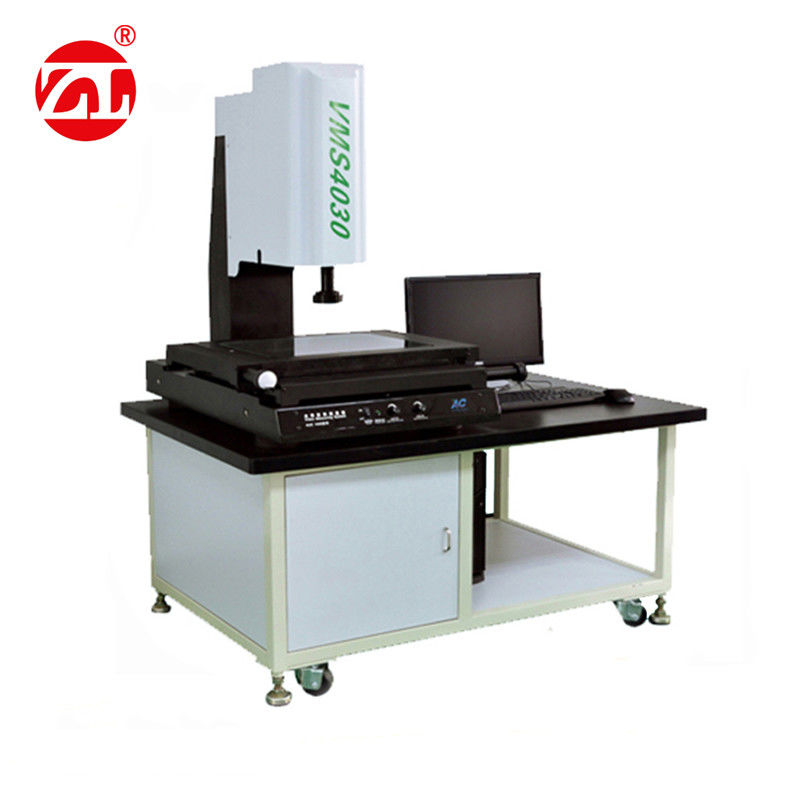

Large Image : 220V CNC 3D Coordinate Optical Measuring Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1502

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	CNC Optical Measuring Equipment Video Measuring Machine is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	CNC Optical Measuring Equipment Video Measuring Machine	Z Axle Run Speed:	0-100m/S(Selection)
Grating Ruler:	0.001mm Glass Rating	Global Positioning System:	Laser Position Indicator
Rocking Bar:	Germany ”MEGATRON”Hall Triaxial Joystick	Warranty:	12 Months
Video Card:	SV-2000High Resolution Color Card	Motor:	“TIGER”Ac Synchronous Servo Motor, Positioning Accuracy ≤0.003mm
Highlight:	CNC Optical Measuring Equipment , 220V Optical Measuring Equipment , 3D Coordinate Video Measuring Machine

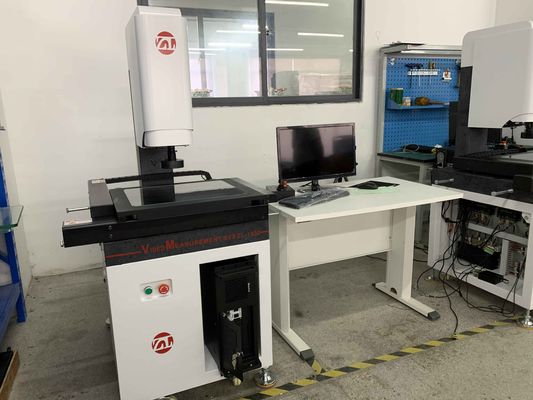

220V CNC 3D Coordinate Optical Measuring Equipment

CNC Optical Measuring Equipment Video Measuring Machine

Instrument Body and Application Features

Automatic Image Measuring Instrument Features

Powerful servomotor drive device that guarantees high resistance, high precision and high reproducibility through high-speed operation
TPI precision screw ensures positional accuracy of 0.001mm, making measurements accurate and reliable
Pillars and bases made of high-precision granite for stable and reliable performance
Multifunctional measuring software achieves measuring speeds 4 to 5 times faster than manual image measuring devices
DXF file import capability for high-speed recognition, programming, and batch measurement of same-specification products
Measurement data export to Word, Excel, AutoCAD with report output functions

Video measuring instruments are used to measure product dimensions, glass filaments, and geometric tolerances including position, concentricity, straightness, profile, roundness, and reference dimensions. Primarily used for 2D inspection of products or 2D projection inspection of various parts.

Video meters share similar principles with projectors for two-dimensional measurements, but utilize different data processing systems. Video measurement equipment typically uses CCD to capture images into computers for measurement calculations.

Non-Contact Measurement Advantages

Avoids human error from manual testing methods, prevents secondary damage to test parts, ensures stability and consistent quality standards. Improves manufacturing process detection efficiency, enables early detection and control of defective products, reduces manual testing costs, and improves product delivery.

Application Scope

The instrument can be applied to various industries including molds, aircraft, automobiles, mobile phones, computers, computer hardware, plastics, electronic devices, die-cuts, screen printing, LCP film, PCB, FPC, covers, TP, ultra-wide LCD monitors, and other dimensional accuracy testing. Also used for reverse engineering, aircraft R&D, design, drawing editing, laboratories, and other necessary 2D/3D detection industries.

Instrument Configuration

Equipped with dedicated image measurement software, high-definition color Sony CCD, high-resolution 0.7-4.5x optical lens, specific computer, LCD, keyboard, mouse (optional), and digital measurement capabilities.

Technical Specifications

Model	3020	4030	5040
Stroke (mm)	300×200×200	400×300×200	500×400×200
Machine size (mm)	850×1300×1500	1000×1400×1550	1200×1500×1550
Metal Table size (mm)	460×360	460×360	460×360
Glass size (mm)	340×250	340×250	340×250
Machine weight (kg)	250	350	450
Glass table loading weight (kg)	20	25	25
X, Y measure accuracy (μm)	3.0+L/150
Z measure accuracy (μm)	5.0+L/100
X, Y Axle Run speed	0-200mm/S (selection)
Z Axle Run speed	0-100mm/S (Selection)
Repeated accuracy (mm)	0.005
Operation Mode	software
Grating Ruler	0.001mm Glass Rating
X, Y Axle Guide Rail	Domestic precision cross-anti-dislocation guide
Z Axle Guide Rail	Taiwan "Shangyin" H grade precision linear guide
Z Axle lead screw	Taiwan TBI grinding ball screw
Bearing	Japan original "NSK" double case combination centripetal ball bearing
Motor	"TIGER" AC synchronous servo motor, positioning accuracy ≤0.003mm
Motion Controller	ZL4000 (Full closed-loop controller)
Camera	SBK-HC536 1/2inch 700 color high definition camera (with white balance function)
Video Card	SV-2000 High resolution color card
Light Source - Rim Light	Profile LED cold light source, transmission light and condenser lens for parallel light irradiation
Light Source - Surface Light	Four ring eight zone LED cold light source, software controlled, reduces electrical component damage
Optical lenses	6.5:1 continuous variable caliper lens
Magnification Ratio	Optical Magnification: 0.7～4.5×; Image Magnification: 24～158X
Global Positioning System	Laser position indicator
Rocking Bar	Germany "MEGATRON" Hall triaxial joystick
Software	Full Automatic + Probe software
Computer	Industrial computer: Intel dual-core CPU, 4G memory, 1000G hard disk, DVD drive, 2G independent graphics card, 19.5-inch display
Power	220V/50Hz/3A
Working condition	Temperature 20℃ ±2℃, temperature change <2℃/hr, humidity 30～80%
Special table for video equipment	Built-in switching power supply, controller, motor driver, power control switch, indicator light, emergency stop switch, moving roller
Warranty	12 months
