Soil Strain Type Direct Shear Instrument

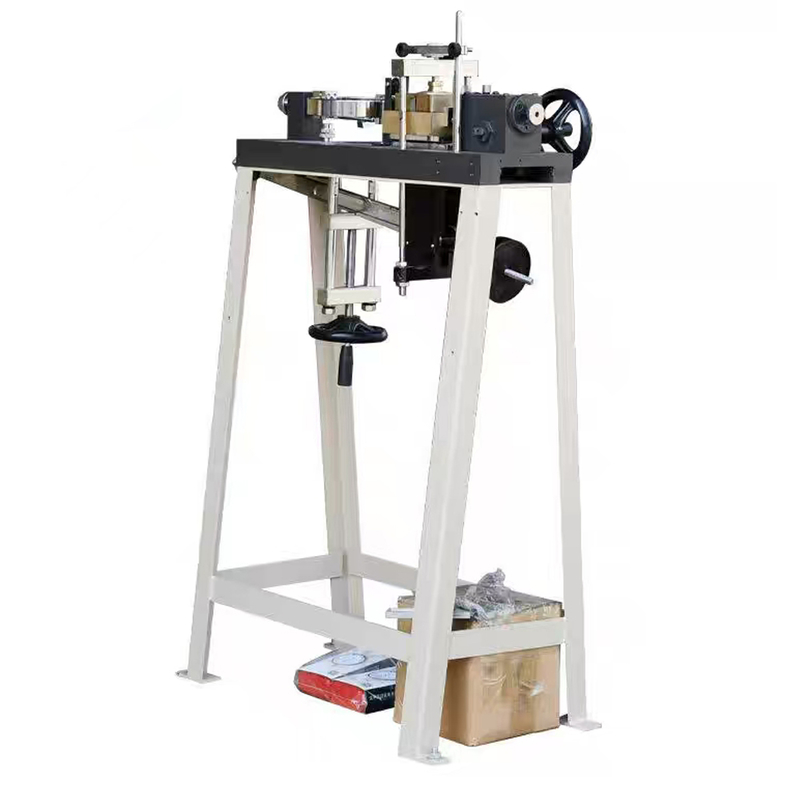

Large Image : Soil Strain Type Direct Shear Instrument

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2416

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Soil Strain Type Direct Shear Instrument is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 Sets

Contact Now

Detailed Product Description

Product Name:	Soil Strain Type Direct Shear Instrument	Sample Area:	30 Cm²
Sample Height:	20mm	Lever Ratio:	1:20
Maximum Horizontal Load:	1.2 KN	Vertical Graded Loading:	50, 100, 200, 300, 400 KPa
Portable Instrument Net Weight:	40kg	Portable Instrument Dimensions:	(430270700) Mm
Highlight:	soil strain direct shear instrument , laboratory soil testing equipment , direct shear instrument with warranty

Soil Strain Type Direct Shear Instrument

Purpose:

This instrument is primarily used to determine the shear strength of soil. Typically, four soil samples are tested. Each sample is subjected to different vertical pressures (selectable from 400 kPa, 300 kPa, 200 kPa, 100 kPa, and 50 kPa), and a horizontal force is applied to induce shear failure. The shear stress at failure is measured, and the shear strength parameters of the soil—the angle of internal friction and cohesion—are determined according to Coulomb's law.

(Compliant with standards: T0140-1993/T0141-1993/T0142-1993/T0143-1993/T0176-2007 of JTG E40-2007).

Portable instrument net weight (including weights): 40 kg, dimensions (430*270*700) mm

Manual instrument net weight (including weights): 55 kg, dimensions (630*350*1050) mm

Technical Specifications:

1. Sample area: 30 cm², height: 20 mm.

2. Lever ratio: 1:20

3. Maximum horizontal load: 1.2 kN

4. Vertical graded loading: 50, 100, 200, 300, 400 kPa (the hanging tray serves as the first load). Refer to the table below:

Direct Shear Instrument
Soil Sample (Vertical Pressure) Loading Sequence Table
30cm² i=1:20
Number	Load weight	Quantity (cumulative)	pressure value
Number	Kg	Piece	Kpa
1	0.765(Hanging plate)	1	50
2	0.765	1	100
3	1.53	1	200
4	1.53	1	300
5	1.53	1	400

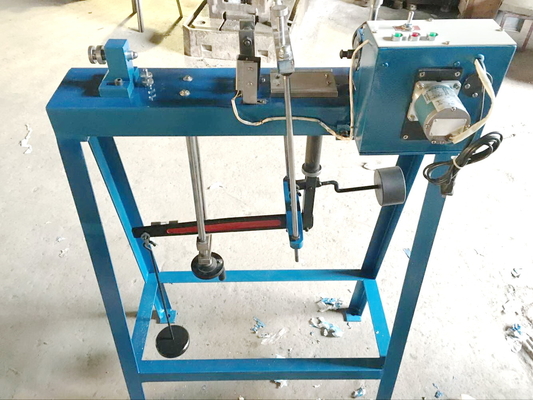

Soil Strain Type Direct Shear Instrument 0

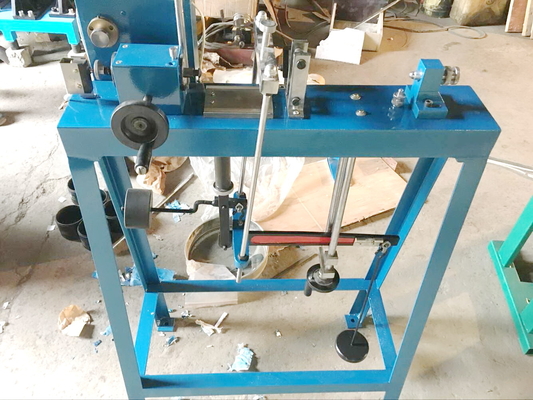

Soil Strain Type Direct Shear Instrument 1
