Product Details:
Payment & Shipping Terms:
|
| Sample Diameter: | 52mm, 100mm | Water Head: | 0～300mm Adjustable |
|---|---|---|---|
| Sample Thickness: | 0.1～10mm | Dimensions: | 1200×500×1440mm |
| Weight: | 170kg | Structure: | Box-shaped |
| High Light: | Geosynthetic Horizontal Infiltration Meter,Geotextile Vertical Infiltration Meter,Geosynthetic Horizontal Permeameter |
||

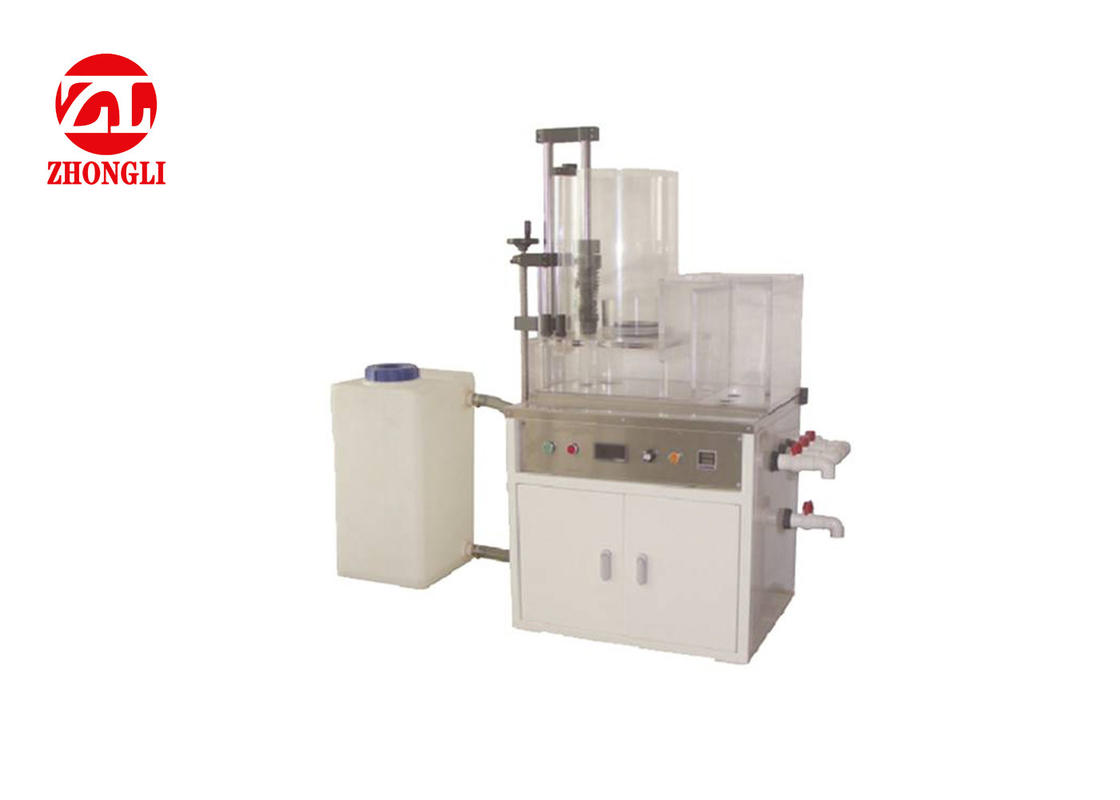

ISO 11058 ASTM D4491 Geotextile Vertical Infiltration Meter Geosynthetic Horizontal Permeameter
Application
It is used to determine the vertical permeability of geotextiles and related products under the constant head method. The water head of the instrument can be adjusted (0-300mm), and can maintain a stable water head. In order to reduce the water head loss, the instrument is designed with a box-shaped structure.
Standards
ISO 11058, ASTM D4491, GB/T15789, JTG E50 T1141, SL/T 235
Features
1. Transparent design, easy to observe the test process;
2. The box-shaped structure is adopted, and the head loss is small during the test;
3. Equipped with a water loop utilization system and a variable frequency speed regulation flow system;
4. Equipped with 52mm and 100mm diameter sample clamps, which better avoids the discreteness of the sample and is comparable with other early instruments
Technical Parameter
1. Sample diameter: 52mm, 100mm
2. Water head: 0～300mm adjustable
3. Sample thickness: 0.1～10mm
4. Dimensions: 1200×500×1440mm
5. Weight: 170kg
