Product Details:
Payment & Shipping Terms:
|
| Power: | 220v 50hz | Early Test Force: | 10kgf(98.07N) |
|---|---|---|---|
| Test Force: | 60kgf(588N) 100kgf(980N) 150kgf(1471N) | Rockwell Scale: | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK |
| Hold Time: | 0-60s | Maximum Height Of Specimen: | 175mm |
| Indenter - Outer Wall Distance: | 160mm | Data Output: | Built-in Printer RS-232 Interface |
| Highlight: | hardness testing equipment,material hardness testing equipment,Portable Used Rockwell Hardness Testing Machine |
||

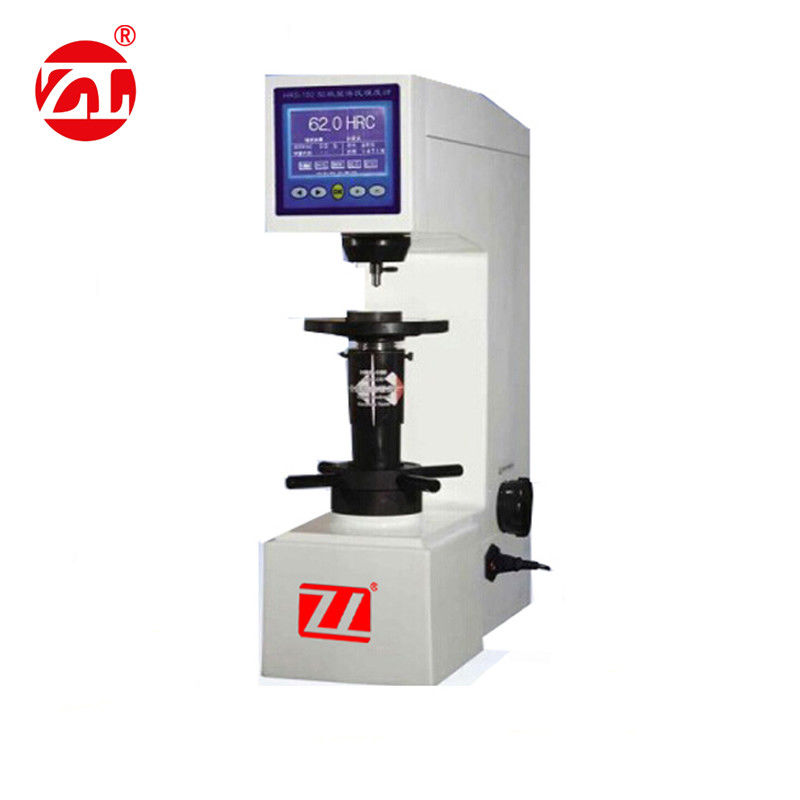

Equipment description:
Digital Rockwell Hardness Tester with large-screen LCD display, software can choose Rockwell hardness scale, plastic Rockwell scale;
Hardness value, automatic calculation, automatic display.
Various hardness values are automatically converted to each other.
The error of the hardness value can be corrected by software input, so that the hardness value is more accurate to meet the requirements.
Test results can be automatically stored, processed, printed
With RS-232 interface, can be connected with the computer.
Technical parameter:
| Model | ZL-1102 HRS-150 Protable Used Rockwell Hardness Tester |
|
Early test force
|
10kgf(98.07N) |
|
Test force
|
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Rockwell scale | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK |
| Test Range |
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:50-115 HRM:50-115 HRR:50-115 |
| Hold time | 0-60s |
| Implementation of standards | GB/T230.1 GB/T230.2 JJG112 (Verification procedures) |
| Conversion scale | Surface Rockwell, Brinell, Vickers |
| Hardness read | Large screen digital display |
| Data output | Built-in printer RS-232 interface |
| Maximum height of specimen | 175mm |
| Indenter - outer wall distance | 160mm |
| Power | AC220V+5%,50~60Hz |
| Dimension (mm) | 520*240*700 |
| Weight | About 55Kg |
Accessory:
| Name | Qty | Name | Qty |
| Diamond Rockwell Head | 1 piece | φ1.5875mm ball head | 1piece |
| Hardness block (HRC 2, HRB 1 block) | 3 piece | Large, medium and V typetest bench | Each 1 piece |
| Weight(A,B,C) | Each 1 piece | Dust plastic cover | 1piece |
| Manual | 1 piece | Product certification | 1piece |
