T0131-93 Concrete Gear Type Electric Compactor Machine CNC Multifunctional Geotechnical

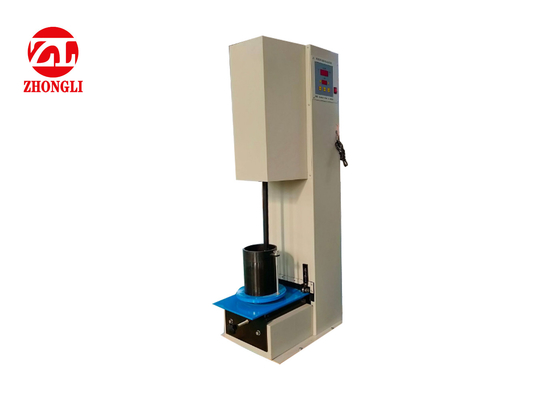

Large Image : T0131-93 Concrete Gear Type Electric Compactor Machine CNC Multifunctional Geotechnical

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2429

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power Supply:	380V 50HZ	Drop Height Of The Hammer:	Heavy-duty 450mm, Light-duty 300mm
The Diameter Of The Hammer Face Of The Hammer:	50mm	Specification Of Compaction Test Tube:	152mm 100mm
Compaction Speed:	32 Times/min	Setting Of The Number Of Compactions:	0-99 Times Adjustable
Highlight:	Geotechnical Electric Compactor Machine , CNC Electric Compactor Machine , CNC Concrete Compactor Machine

T0131-93 Concrete Gear Type Electric Compactor Machine

CNC Multifunctional Geotechnical Electric Compactor designed for precise compaction testing according to JTJ051-93 standards.

Product Overview

This multi-functional electric compactor is engineered and manufactured in compliance with the T0131-93 compaction test standard from the Ministry of Communications of the People's Republic of China. The unit performs both heavy and light compaction tests, making it an ideal geotechnical testing instrument for highway construction, building projects, and scientific research applications.

Technical Specifications

Power Supply: 380V 50HZ (three-phase three-wire)
Compaction Hammer Weight: Heavy compaction 4.5Kg, Light compaction 2.5Kg
Hammer Drop Height: Heavy-duty 450mm, Light-duty 300mm
Hammer Face Diameter: 50mm
Compaction Test Tube Specification: 152mm * 100mm
Compaction Speed: 32 times/minute
Compaction Count Setting: 0-99 times adjustable

Instrument Performance & Features

Robust Construction

Main frame crafted from durable steel plate with impact resistance and fatigue-tested transmission mechanisms for reliable long-term performance.

Advanced Control System

Incorporates sophisticated single-chip technology for sensitive, accurate, and reliable counting operations.

Operation & Setup Instructions

The compactor must be securely mounted on a 500*450mm concrete foundation. Ensure proper leveling and vertical alignment before operation.

Initial Setup Procedure:

Connect the 12-core cable between the host unit and electrical control box. Apply 380V power to the electrical box and press the power switch. The digital display indicator will illuminate.

Direction Verification: Set an arbitrary count number and verify the main unit's running direction. If the motor fails to run and produces a buzzing sound, immediately press the stop button, cut power, and adjust the power supply phase sequence.

Testing Procedures

152mm Sample Testing

1. Load sample into cylinder and secure on machine

2. Set desired compaction count

3. Remove rotary latch

4. Close mainframe shield

5. Press stage-shifting button (indicator lights), then start button to begin compaction program

100mm Sample Testing

1. Load sample tube and secure on machine

2. Set compaction count

3. Insert rotary pin

4. Close mainframe shield
